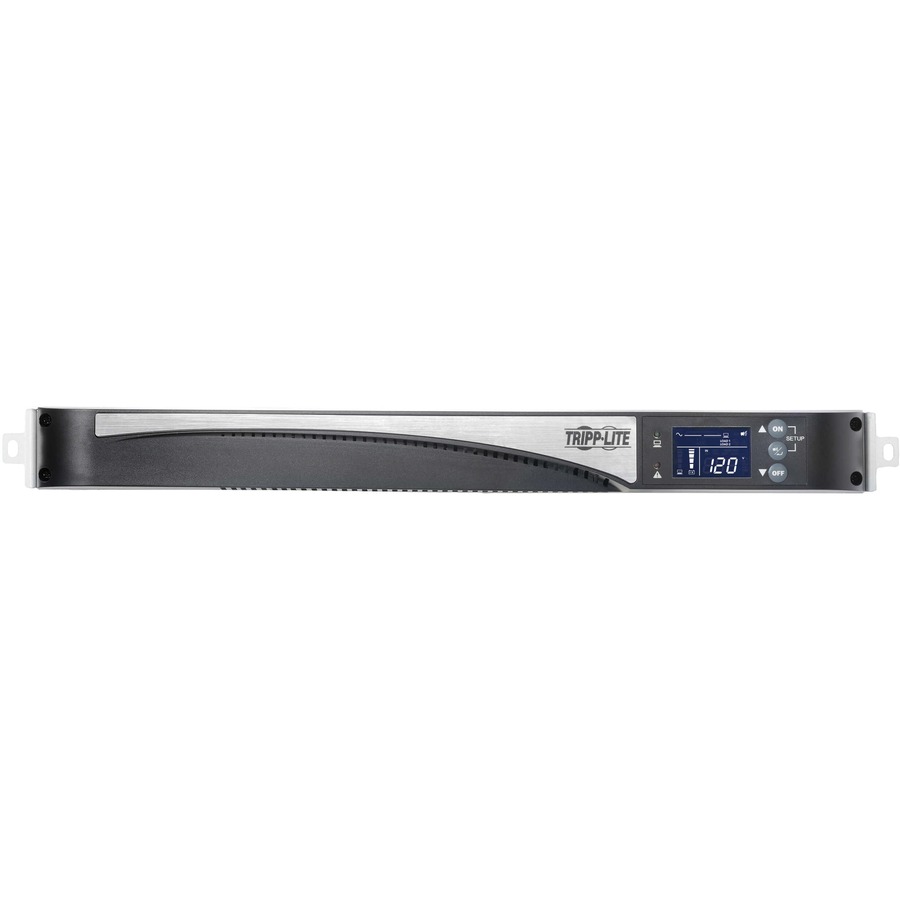

Tripp Lite by Eaton 120V 1440VA 1440W Double-Conversion Smart Online UPS - 5 Outlets, Card Slot, LCD, USB, DB9, 1U Rack

by
TRIPP LITE
PCN#
00GG34
MFG#
SU1500LCD1U
$797.48
cps

Extended & Accidental Damage Protection Plans Available Details

Estimated Shipment:

Calculating Shipping

Product Highlights:
  • 1U Rack
  • mountable
  • 3 Minute Stand
  • Show more

Product Condition: New and Factory Fresh
Limited Warranty2 Year
Shipping Weight: 53 lbs.
Tripp Lite by Eaton 120V 1440VA 1440W Double-Conversion Smart Online UPS - 5 Outlets, Card Slot, LCD, USB, DB9, 1U Rack
Tech Specs
Specifications

Manufacturer

Tripp Lite by Eaton

Manufacturer Part Number

SU1500LCD1U

Manufacturer Website Address

https://tripplite.eaton.com/

Brand Name

Tripp Lite by Eaton

Product Line

SmartOnline

Product Model

SU1500LCD1U

Product Name

SmartOnline SU1500LCD1U 1500VA Rack-mountable UPS

Marketing Information

Double-Conversion UPS Protects Equipment Against Damage, Downtime and Data Loss
This 100/120/127V 50/60 Hz on-line double-conversion UPS system maintains perfect output by converting AC input to DC, then reconverting UPS output to fully regulated sine wave AC with +/-3% voltage regulation in on-line and battery modes. Featuring 1440W capacity, 540 joules of surge suppression, true on-line operation with pure sine wave output, unity (1.0) power factor, and zero transfer time between on-line and battery modes, the SmartOnline® SU1500LCD1U provides the highest level of AC power protection and battery backup for network equipment in your small- to medium-size data center or computer room.

Individually Controllable Load Banks Let You Access and Control Outlets Remotely
Five NEMA 5-15R outlets are split into two switchable load banks, allowing you to reboot select components or shed loads remotely. This UPS is recommended for servers, switches, phone systems, kiosks, high-end engineering and professional A/V computer systems in small-to-mid-size computer rooms, network closets and other applications where rack space is limited.

Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages
The field-replaceable, hot-swappable internal battery provides 10 minutes of support at half load (720W) and three minutes at full load (1440W), keeping protected equipment operational through power failures. The advanced battery management system with temperature-compensated charging extends battery life.

ENERGY STAR-Certified Economy Mode Helps You Save Money and Protect the Environment
By meeting strict EPA efficiency guidelines, this ENERGY STAR-certified UPS system helps you save money and energy. A power-saving Economy mode setting option offers enhanced efficiency and reduced BTU output when utility power is already high quality.

Set Output Frequency to Match That of Your Connected Equipment
Using the UPS in Frequency Conversion mode will correct or convert the incoming frequency of 50 Hz to output 60 Hz (and vice versa).

Intuitive Front-Panel Interface for Convenient UPS Operation and Monitoring
The front-panel LCD features detailed UPS and site power status and operating data (including load, voltage and battery data) and multiple screens of configuration and setup options. LEDs indicate AC output availability and fault status. On-screen operational diagram offers an easy-to-grasp visual representation of on-line, battery and ECO/Bypass modes.

Product Type

Double Conversion Online UPS
Technical Information

Plug/Connector Type

NEMA 5-15P

Receptacle Type

NEMA 5-15R

Receptacle Detail

5 x NEMA 5-15R

Dataline Protection

RS-232

Transfer Time

0 ns

EMI/RFI Noise Filter

Yes

Phase

Single Phase

Application/Usage

  • Network Equipment
  • Computer Room
  • Server
  • Network Closet
  • Switch
  • Phone
  • Kiosk
  • High-end System
Power Description

Load Capacity

1500 VA/1440 W

Input Voltage

120 V AC

Output Voltage

  • 100 V AC
  • 120 V AC
  • 127 V AC

Output Frequency

60 Hz

Waveform Type

Pure Sine Wave
Management

Network Management

SNMP/Web

Alarm

  • Power Failure
  • UPS StartUp
  • Low Battery
  • Overload
  • UPS Fault
Controls/Indicators

Status Indicators

LED Indicators:

  • AC Output Status (green)
  • Shutdown / Fault condition (red)
Interfaces/Ports

USB (HID Compliant) Port

Yes
Battery Information

DC System Voltage

48 V DC

Battery Chemistry

Lead Acid

Backup/Run Time (Full Load)

3 Minute

Backup/Run Time (Half Load)

10 Minute

Hot Swappable

Yes

Replaceable Battery

Yes
Environmental Conditions

Maximum Operating Temperature

104°F (40°C)

Storage Temperature

5°F (-15°C) - 122°F (50°C)

Maximum Operating Elevation

9842.52 ft

Sound Emission (A-Weighted)

65 dB(A)

Thermal Dissipation

234.42 W
Physical Characteristics

Height

1.7"

Width

17.3"

Depth

28"

Rack Height

1U

Form Factor

Rack-mountable

Weight (Approximate)

45.19 lb
Miscellaneous

Package Contents

  • SmartOnline SU1500LCD1U 1500VA Rack-mountable UPS
  • USB Cable
  • RS-232 Cable
  • Rack-mounting Hardware
  • Owner's Manual

Energy Star

Yes

Environmentally Friendly

Yes
Warranty

Limited Warranty

2 Year
