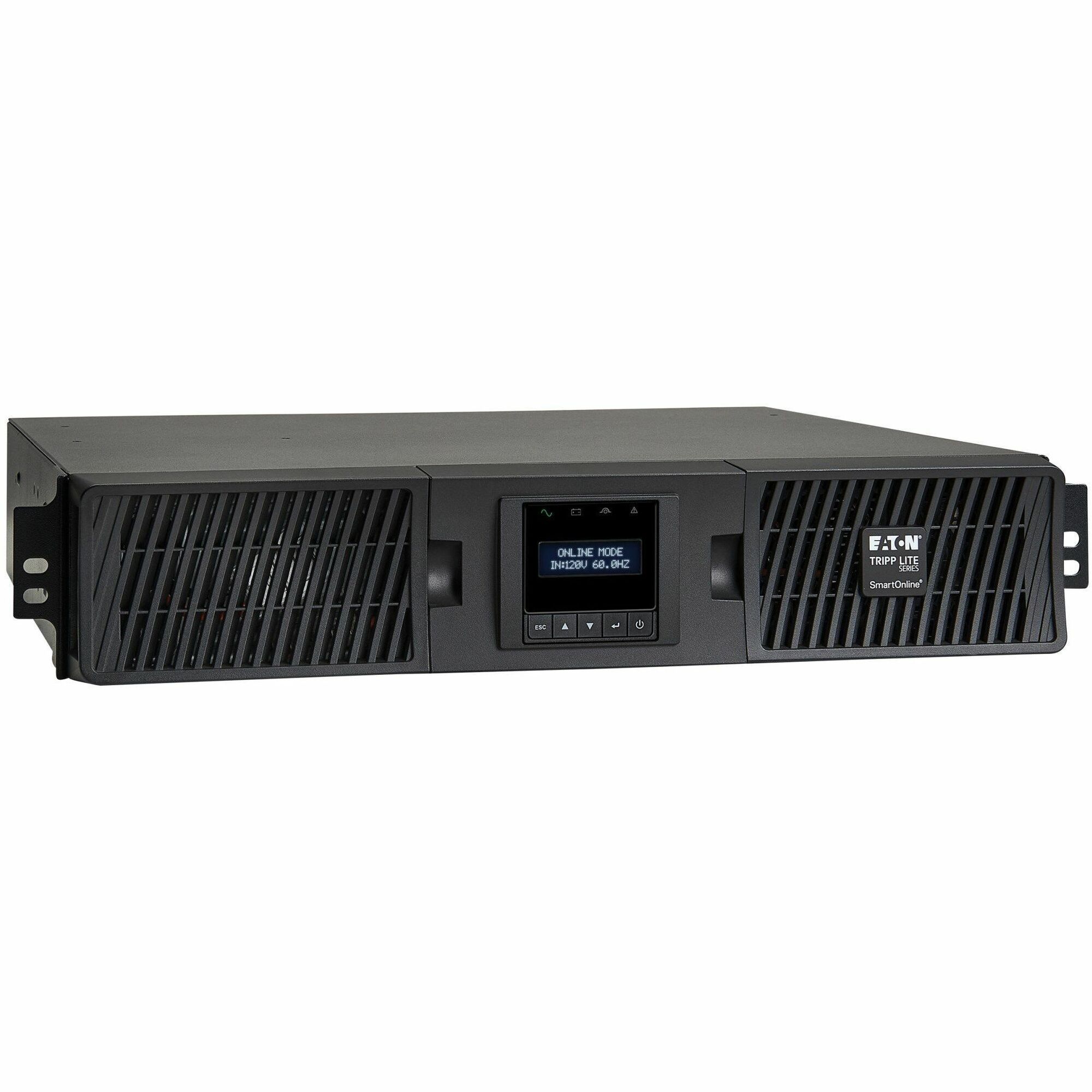

SMARTONLINE 2000VA 1800W 120V DOUBLE CONVERSION SINE WAVE UPS 2U

Name: SMARTONLINE 2000VA 1800W 120V DOUBLE CONVERSION SINE WAVE UPS 2U
Brand: EATON
SKU: S93139
Price: 2190.34 USD
Availability: InStock

EATON

PCN#

S93139

MFG#

SU2200RTXLCD2UTAA

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$2,190.34

Extended & Accidental Damage Protection Plans Available Details

2-Year $168.99

3-Year $225.99

Estimated Shipment:

Product Highlights:

2U Rack/Tower
3 Hour Recharge
7.70 Minute Stand
by
120 V AC Input
120 V AC, 100 V AC, 110 V AC, 115 V AC, 127 V AC Output
Single Phase
Pure Sine Wave
Serial Port
USB
LCD Display
6 x NEMA 5
20R, 1 x NEMA L5
20R
Dry Contact, DB
9 RS
232, SNMP/HTTP Remote Monitoring
TAA Compliant

Product Condition: New and Factory Fresh

Limited Warranty2 YearDirectly Connected Equipment Guarantee250000 Lifetime

Shipping Weight: 1 lbs.

Eaton Tripp Lite Series SmartOnline 2000VA 1800W 120V Double-Conversion Sine Wave UPS - 7 Outlets, Extended Run, Network Card Option, LCD, USB, DB9, 2U Rack/Tower, TAA

Overview

2kVA 1.8kW 120V Battery Backup Protects Equipment Against Damage, Downtime and Data LossThis on-line double-conversion UPS system maintains perfect output by converting AC input to DC, then reconverting UPS output to fully regulated sine wave AC. Constant on-line operation completely isolates sensitive equipment from every power problem on the AC line. The SmartOnline® SU2200RTXLCD2UTAA provides the highest level of power protection and battery backup for education, healthcare, military, government and other mission-critical IT applications where space is limited, but premium power reliability is essential.Product TypeDouble Conversion Online UPSTechnical InformationPlug/Connector TypeNEMA 5-20PReceptacle TypeNEMA 5-20RNEMA L5-20RReceptacle Detail6 x NEMA 5-20R1 x NEMA L5-20RCord Length8 ftTransfer Time0 nsEMI/RFI Noise FilterYesPhaseSingle PhaseEnergy SavingGreen Energy-SavingEfficiency Detail91.4% (AC Mode)96.8% (Eco Mode)Application/UsageMission Critical EquipmentITNetworkEducationHealthcareMilitaryGovernmentNetwork DeviceIT EquipmentNon-critical DeviceIndustrial EquipmentSurge SuppressionYesFeaturesAudible AlarmCold Start FunctionPower DescriptionLoad Capacity (VA)2000 VALoad Capacity (Watt)1800 WInput Voltage100 V AC110 V AC120 V ACInput Current16 AOutput Voltage100 V AC110 V AC115 V AC120 V AC127 V ACOutput Frequency50 Hz60 HzWaveform TypePure Sine WaveSurge Energy Rating190 JInput Power Factor0.99Output Power Factor0.9Display & GraphicsDisplayLCDManagementNetwork ManagementDry ContactDB-9 RS-232SNMP/HTTP Remote MonitoringAlarmUPS StartUpPower FailureLow BatteryOverloadUPS FaultRemote ShutdownControls/IndicatorsStatus Indicators

Tech Specs

Reliable, Expandable Battery Backup Keeps You Operational Through Power OutagesThe field-replaceable, hot-swappable VRLA battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in the case of a prolonged blackout. Zero transfer time between on-line and battery modes maintains continuous operation of connected equipment without interruption or rebooting. Extra runtime is available by connecting up to four optional extended battery modules (BP72RT2UTAA, sold separately). Optional Network Management Card Allows 24/7 Remote AccessThe WEBCARDLXE network interface (sold separately) enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. The IP-based Auto Probe feature ensures continuous network uptime by communicating with other network devices, detecting lost connectivity and automatically rebooting IT equipment. Optional EnviroSense2 modules (E2MT, E2MTDO and E2MTHDI, all sold separately) provide a variety of environmental monitoring and control options. Note

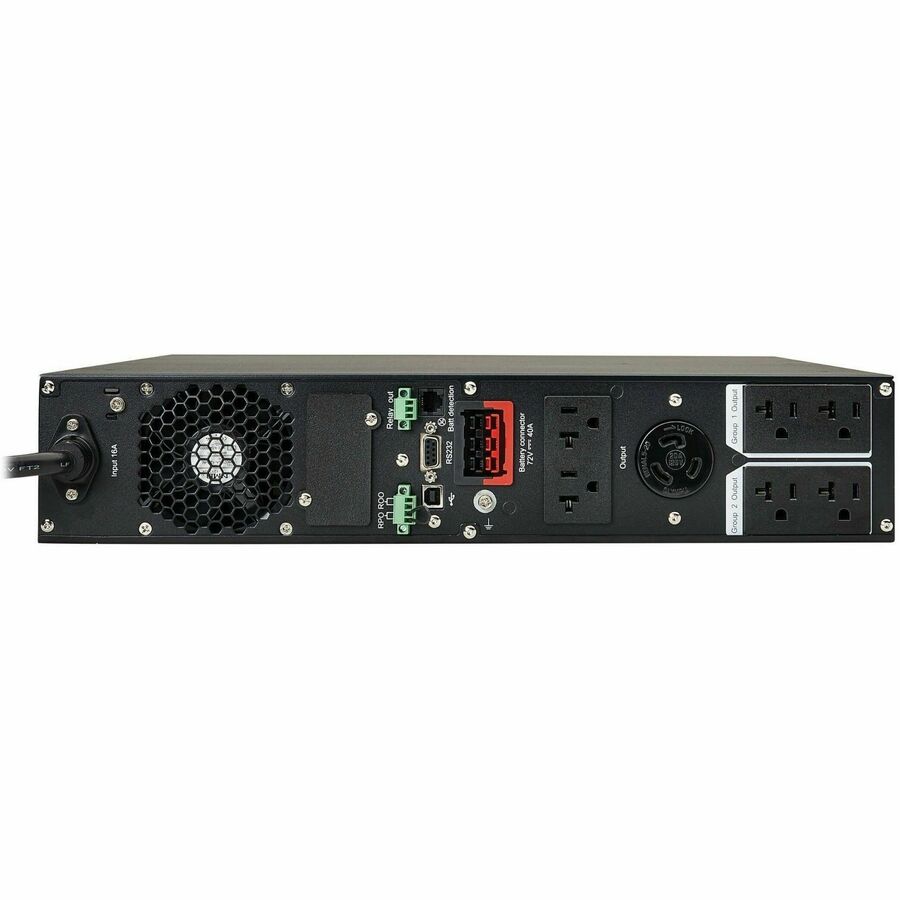

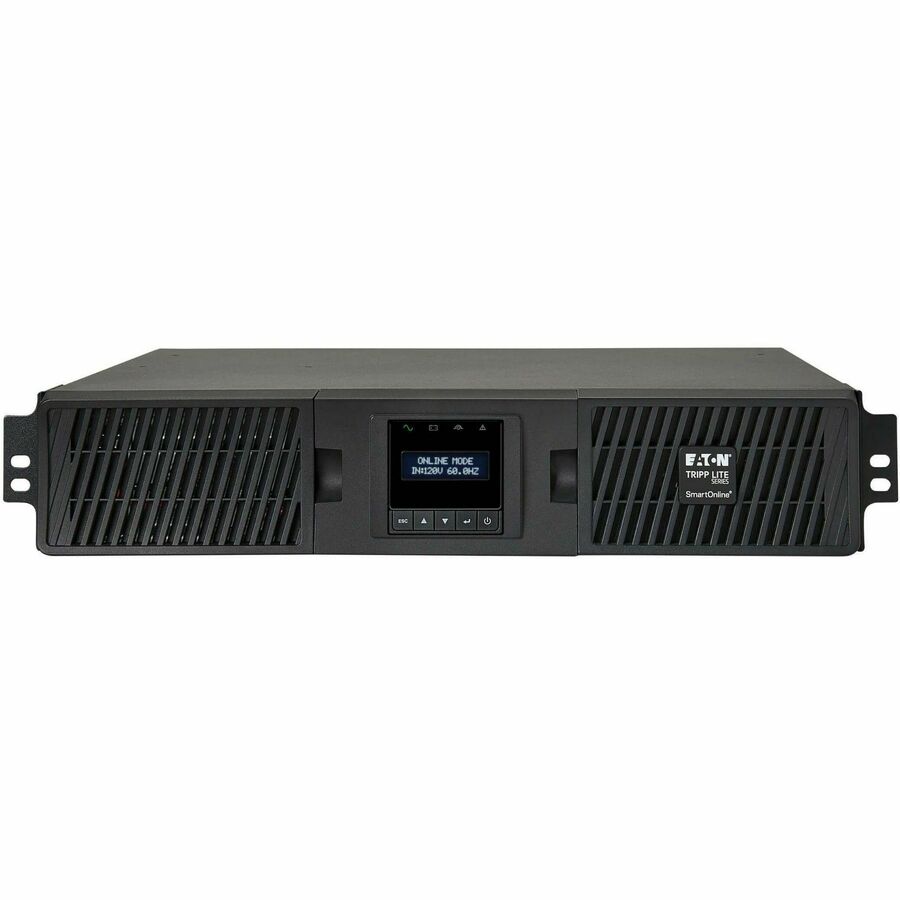

The SU2200RTXLCD2UTAA is not compatible with WEBCARDLX. NEMA Outlets Protect Your Connected ComponentsOne L5-20R and six 5-20R managed outlets provide connected equipment with pure sine wave AC output and allow you to manage power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. Four 5-20R outlets are split evenly into two switchable load banks that let you reboot select components or shed non-critical loads in order to extend runtime for critical loads during an outage. A cooling fan helps protect equipment from overheating. Premium Protection from EMI/RFI Line Noise Helps Your Equipment Perform BetterThis UPS system filters out disruptive electromagnetic and radio frequency interference that can inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer. Intuitive Front-Panel Interface for Convenient UPS Operation and MonitoringThe two-line front-panel LCD features 10 selectable screens that allow quick access to a wide range of detailed UPS and site power information. LEDs show UPS status
a green light means utility power is on, an orange light means the UPS is in battery or bypass mode and a red light indicates an active alarm or fault. The control panel rotates to accommodate both rack-mount and tower configurations. Advanced Communications Ports Allow for Automatic Saves and ShutdownsRS-232 and USB ports connect to a device for a variety of communication options (cables are included). A dry-contact relay port can be programmed through the LCD to provide reliable communications to automation and industrial components. The RPO/ROO port permits emergency shutdown or remote restart of all connected equipment.Product TypeDouble Conversion Online UPSTechnical InformationPlug/Connector TypeNEMA 5-20PReceptacle Type

NEMA 5-20R
NEMA L5-20R

Receptacle Detail

6 x NEMA 5-20R
1 x NEMA L5-20R

Cord Length8 ftTransfer Time0 nsEMI/RFI Noise FilterYesPhaseSingle PhaseEnergy SavingGreen Energy-SavingEfficiency Detail

91.4% (AC Mode)
96.8% (Eco Mode)

Application/Usage

Mission Critical Equipment
IT
Network
Education
Healthcare
Military
Government
Network Device
IT Equipment
Non-critical Device
Industrial Equipment

Surge SuppressionYesFeatures

Audible Alarm
Cold Start Function

Power DescriptionLoad Capacity (VA)2000 VALoad Capacity (Watt)1800 WInput Voltage

100 V AC
110 V AC
120 V AC

Input Current16 AOutput Voltage

100 V AC
110 V AC
115 V AC
120 V AC
127 V AC

Output Frequency

50 Hz
60 Hz

Waveform TypePure Sine WaveSurge Energy Rating190 JInput Power Factor0.99Output Power Factor0.9Display & GraphicsDisplayLCDManagementNetwork Management

Dry Contact
DB-9 RS-232
SNMP/HTTP Remote Monitoring

Alarm

UPS StartUp
Power Failure
Low Battery
Overload
UPS Fault
Remote Shutdown

Controls/IndicatorsStatus Indicators LCD Display

Site Power Status and Operating Data
Plus Configuration of Voltage
Frequency
Operating Mode
Alarm Function

LED Indicators

4 Status-indicating LEDs

Interfaces/PortsSerial PortYesUSBYesEPO PortYesNumber of USB Ports1Battery InformationDC System Voltage72 V DCBattery CharacteristicsValve-regulatedBattery ChemistryLead AcidBackup/Run Time (Full Load)7.70 MinuteBackup/Run Time (Half Load)20.20 MinuteTypical Battery Recharge Time3 HourHot SwappableYesReplaceable BatteryYesEnvironmental ConditionsMinimum Operating Temperature32°F (0°C)Maximum Operating Temperature104°F (40°C)Storage Temperature-13°F (-25°C) - 131°F (55°C)Maximum Operating Elevation10000 ftSound Emission47 dBThermal Dissipation285.45 WPhysical CharacteristicsHeight3.41"Width17.33"Depth23.82"Rack Height2UForm FactorRack/TowerWeight (Approximate)61.51 lbMiscellaneousPackage Contents

SmartOnline SU2200RTXLCD2UTAA 2000VA Rack/tower UPS
USB Cable
DB9 Cable
Rack-mounting Hardware
Tower Support Stands
Safety Instructions
Quick Start Guide

Certifications & Standards

UL 1778
cTUVus
FCC

Energy StarYesCountry of OriginTaiwanTAA CompliantYesEnvironmental Compliance

Restriction of Hazardous Substances (RoHS)
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

WarrantyLimited Warranty2 YearDirectly Connected Equipment Guarantee

250000 Lifetime
