PRODUCT HIGHLIGHTS
- Limited Warranty2 Year
- Shipping Weight12 lbs.
- 42 V DC, 63 V DC Input
- 350 mA Output
- 16 x PoE Input Port(s)
- 16 x Ethernet Output Port(s)
- 16.80 W

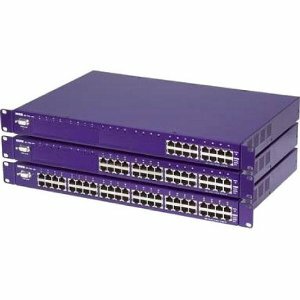

16 PORT MIDSPAN INJECTOR 802.3AF GIGABIT
Checking delivery estimate…
PRODUCT HIGHLIGHTS
- Limited Warranty2 Year
- Shipping Weight12 lbs.
- 42 V DC, 63 V DC Input
- 350 mA Output
- 16 x PoE Input Port(s)
- 16 x Ethernet Output Port(s)
- 16.80 W
Overview
The TP-MS3xx series of rack mount mid span POE power sources are used for supplying POE and data to multiple devices from a central location such as an operations room. The POE devices feature a separate data-in port coupled with a data out/POE port. The POE function is fully IEEE802.3af compliant.The included PC software allows for configuration of the individual ports and for displaying port status. Connecting to a PC is easy with the included RS232 cable. Ports can be configured for forced POE output (Passive POE) or IEE802.3af detection. POE DC Voltage (48V) is supplied on pins 4,5 (V+) and 7,8 (V-). Maximum power output per rack mount unit is 400W. The individual outputs are overload and short circuit protected.
16 PORT MIDSPAN INJECTOR 802.3AF GIGABIT
OVERVIEW
16 PORT MIDSPAN INJECTOR 802.3AF GIGABIT
The TP-MS3xx series of rack mount mid span POE power sources are used for supplying POE and data to multiple devices from a central location such as an operations room. The POE devices feature a separate data-in port coupled with a data out/POE port. The POE function is fully IEEE802.3af compliant.The included PC software allows for configuration of the individual ports and for displaying port status. Connecting to a PC is easy with the included RS232 cable. Ports can be configured for forced POE output (Passive POE) or IEE802.3af detection. POE DC Voltage (48V) is supplied on pins 4,5 (V+) and 7,8 (V-). Maximum power output per rack mount unit is 400W. The individual outputs are overload and short circuit protected.
PACKAGE CONTENTS
