ITA2 20KVA 400V VRLA 1+1 PARALL

by
VERTIV - 3 PHASE UPS
PCN#
S14629
MFG#
ITA2-40KRT400V31URN
$43,840.57
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • Rack
  • mountable / tower | Online Double Conversion UPS Solution | with Liebert IntelliSlot Card (RDU120) factory installed and is compatible with all Liebert SN Sensors
Product Condition: New and Factory Fresh
Limited Warranty2 Year
Shipping Weight: 538 lbs.

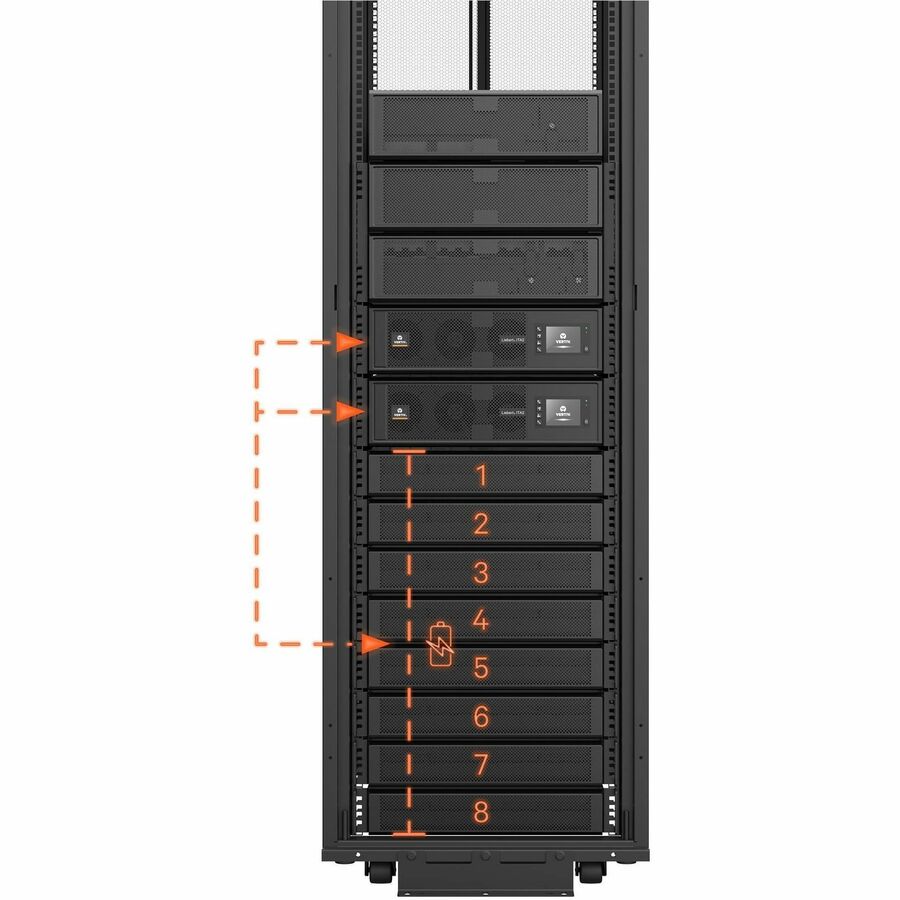

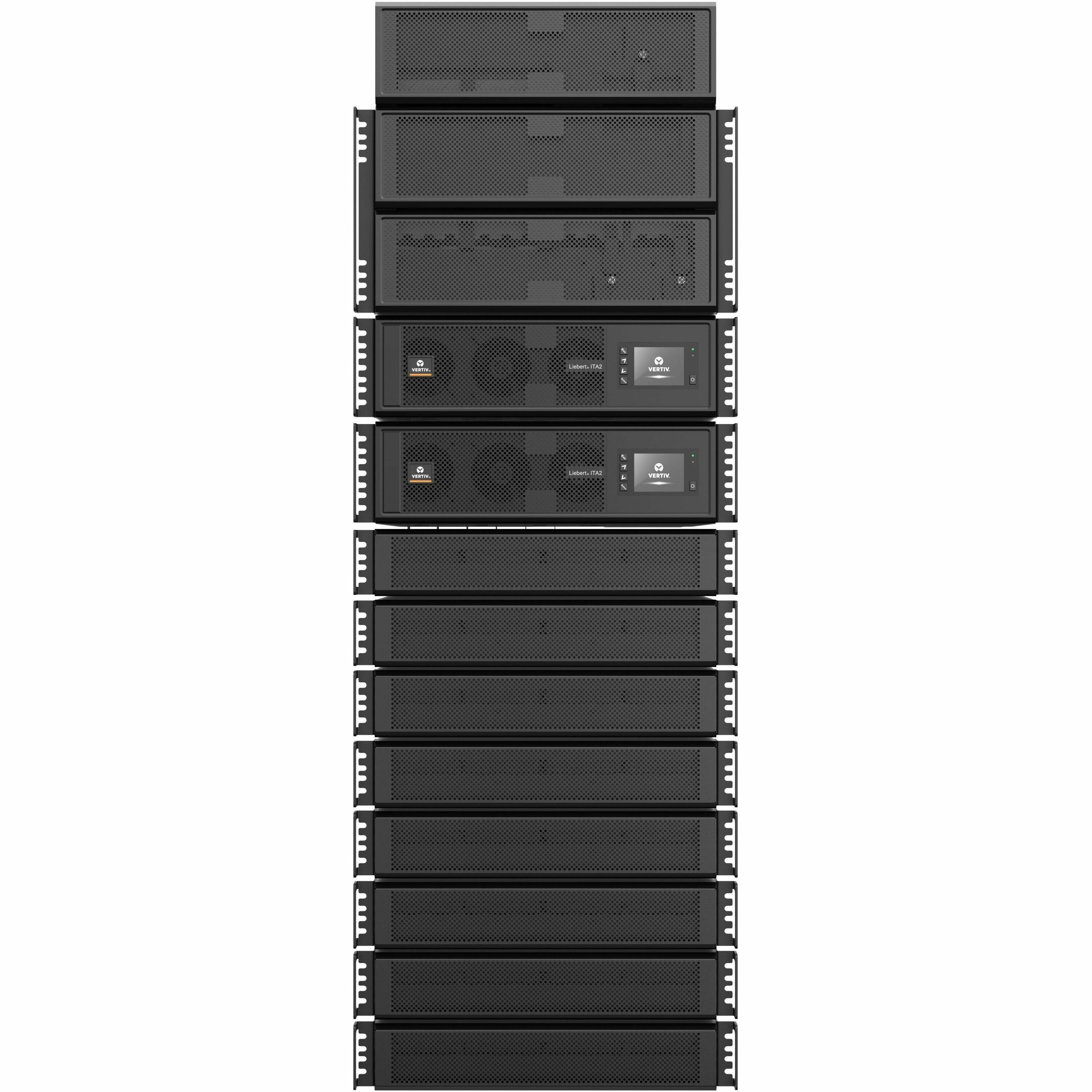

Vertiv Liebert ITA2 UPS - 40kVA/40kW 1+1 Redundant; 400VAC (240VAC) 3-phase 4 Wire w/ RDU120 Card, 4 pair of VRLA battery (ITA2-40KRT400V31URN)
Tech Specs
Specifications

Manufacturer

Vertiv

Manufacturer Part Number

ITA2-40KRT400V31URN

Manufacturer Website Address

http://www.vertiv.com/

Brand Name

Vertiv Liebert

Product Series

ITA2

Product Name

ITA2 40kVA Rack/Tower UPS

Marketing Information

The Vertiv Liebert ITA2 UPS bundle (ITA2-40KRT400V31URN) includes a 40kVA/40kW 1+1 Redundant; 400VAC (240VAC) UPS with VRLA battery. The Vertiv Liebert ITA2 UPS is a compact, rack-tower convertible UPS that employs true on-line, double-conversion technology that continuously conditions and regulates its output voltage. It is designed to supply microcomputers, servers, networking, and other sensitive equipment with clean sine wave input power. It offers economical, efficient, and reliable 3-phase power for critical loads up to 40kVA 400V 1+1 redundant. It has scalable battery runtimes, output distribution options, a unity power factor (1.0) and an optimized maintenance bypass cabinet option for enhanced availability and flexibility. It is easy to install and operate. It provides intuitive control panel and optional software monitoring for visibility, control, and peace of mind for manned or unmanned locations. It has Energy Star 2.0 certification and comes with a 2-yr warranty.

Product Type

Double Conversion Online UPS
Technical Information

Transfer Time

0 ns

Protection Type

  • Surge
  • Lightning

Phase

Three Phase

Application/Usage

  • IT System
  • Medical
  • Lab Equipment
  • VoIP
  • ISDN
  • Storage System
  • Security System
  • Branch Office
  • CCTV Camera
  • Automated Teller Machine (ATM)
  • Cellular System
  • Network Equipment
  • Office
  • Server Room
  • POS Equipment
  • Network Closet

Crest Factor

3:1

Efficiency

96.5%
Power Description

Load Capacity (VA)

40 kVA

Load Capacity (Watt)

40 kW

Input Frequency

  • 50 Hz
  • 60 Hz

Waveform Type

Sine Wave

Input Power Factor

0.99

Output Power Factor

1
Display & Graphics

Display

LCD
Management

Network Management

  • Intelligent Card Slot
  • SNMP
  • Network Interface Card

Alarm

  • Output Overload
  • Low Battery
  • Replace Battery
Interfaces/Ports

USB

Yes
Battery Information

DC System Voltage

384 V DC

Number of Batteries

4

Battery Characteristics

Maintenance-free/Sealed

Battery Chemistry

Lead Acid

Replaceable Battery

Yes
Environmental Conditions

Maximum Operating Temperature

122°F (50°C)

Storage Temperature

-40°F (-40°C) - 158°F (70°C)
Physical Characteristics

Form Factor

Rack/Tower

Height

5.1"

Width

16.9"

Depth

25.8"

Weight (Approximate)

66.10 lb
Miscellaneous

Package Contents

  • ITA2 40kVA Rack/Tower UPS
  • Tower Stand
  • USB Cable
  • Quick Installation Guide
  • Safety Instructions
  • Adjustable 4-Post Rack Mounting Kit
  • Copper Jumpers for Single Input Configuration
  • Shared Battery Connector Cable (for redundancy/paralleling UPS with VRLA Batteries
  • Vertiv™ Power Insight Management Software (free download from Vertiv.com)
  • IS-Unity DP Communication Card
  • Certifications & Standards

  • FCC Part 15, Class A
  • ANSI C62.41 Category A
  • Energy Star

    Yes

    Energy Efficiency Certification

    ENERGY STAR 2.0

    Environmental Compliance

    Restriction of Hazardous Substances (RoHS)
    Warranty

    Limited Warranty

    2 Year
