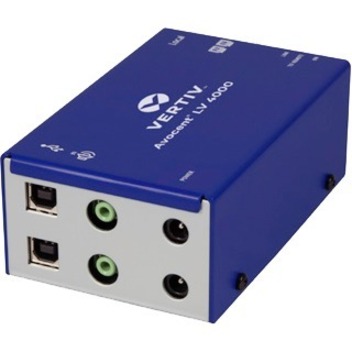

Vertiv Avocent LV4000 | IP KVM Extender | DVI, USB, Audio (LV4020P-001)

Name: Vertiv Avocent LV4000 | IP KVM Extender | DVI, USB, Audio (LV4020P-001)
Brand: VERTIV
SKU: 3A0186
Price: 2176.03 USD
Availability: InStock

VERTIV

PCN#

3A0186

MFG#

LV4020P-001

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$2,176.03

Extended & Accidental Damage Protection Plans Available Details

2-Year $168.99

3-Year $225.99

Free Shipping

Estimated Shipment:

Product Highlights:

IP KVM Transmitter | IP
based KVM Extender | USB Extender | DVI, USB, Audio, or CATx cable | Distance from 50 meters/150 feet.

Product Condition: New and Factory Fresh

Limited Warranty2 Year

Shipping Weight: 5 lbs.

Vertiv Avocent LV4000 | IP KVM Extender | DVI, USB, Audio (LV4020P-001)

Overview

Tech Specs

Specifications

Manufacturer	Vertiv
Manufacturer Part Number	LV4020P-001
Manufacturer Website Address	http://www.vertiv.com/
Brand Name	Vertiv AVOCENT
Product Line	LV
Product Series	4000
Product Model	LV4020
Product Name	LV4020 Dual VGA KVM Extender
Marketing Information	The Vertiv Avocent LongView LV4020P KVM extender is part of the Avocent high-performance family of KVM extension solution products. The LV4020P KVM extender allows users to distribute a single-link DVI video stream, USB 2.0, and analog audio over a single CATx cable. The LV4020P transmits and delivers perfect 1080p digital video at distances over 164 feet (50 meters) and resolutions up to 164 MPixels per second (such as 1920x1200 @ 60Hz or 3840x2400 @ 17Hz). Locate critical computing hardware in a secure and temperature-controlled environment, away from the user's workstation environment, while maintaining the same user experience. In operation, the LongView 4020P is truly plug and play, delivering full Extended Display ID (EDID) data from computer to screen ensuring your hardware is always setup to deliver optimal display performance.
Packaged Quantity	1
Product Type	KVM Console/Extender

Technical Information

Connectivity Technology	Wired
Number of Computers Supported	1
Number of Remote Users Supported	1
Maximum Operating Distance	164.04 ft
Device Type	High Performance KVM

Video

Graphic Mode	WUXGA
Maximum Video Resolution	1920 x 1200

Interfaces/Ports

Network (RJ-45)	Yes
USB	Yes
Digital Audio/Video	Yes
DVI	Yes
Number of Network (RJ-45) Ports	4
Number of USB Ports	6
Number of DVI Ports	4

Power Description

Input Voltage	120 V AC 240 V AC
Input Voltage Range	120V AC to 230V AC
Power Consumption	12.50 W

Physical Characteristics

Form Factor	Rack-mountable
Transmitter Height	2"
Transmitter Width	4.70"
Transmitter Depth	3"
Receiver Height	2"
Receiver Width	4.70"
Receiver Depth	3"
Transmitter Weight (Approximate)	1.10 lb
Receiver Weight (Approximate)	1.10 lb

Miscellaneous

Platform Supported	PC
Country of Origin	United Kingdom

Warranty

Limited Warranty

2 Year
