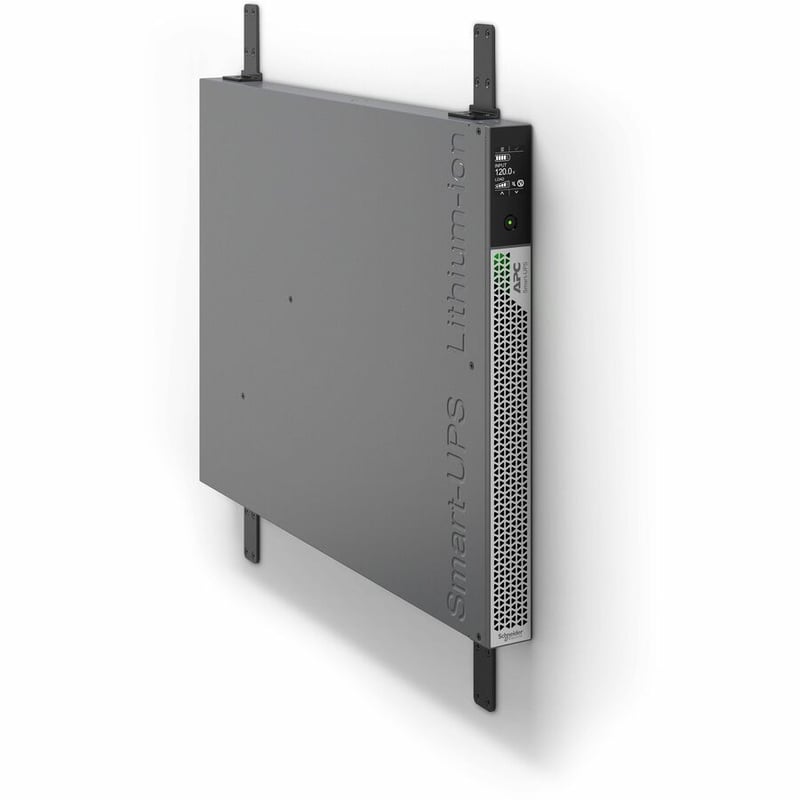

APC by Schneider Electric Smart-UPS Ultra 2200VA Rack/Tower/Wall/Ceiling/Desktop Mountable UPS

Name: APC by Schneider Electric Smart-UPS Ultra 2200VA Rack/Tower/Wall/Ceiling/Desktop Mountable UPS
Brand: APC
SKU: 08RM80
Price: 3671.08 USD
Availability: InStock

APC

PCN#

08RM80

MFG#

SRTL2K2RM1UC

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

Estimated Shipment:

Product Highlights:

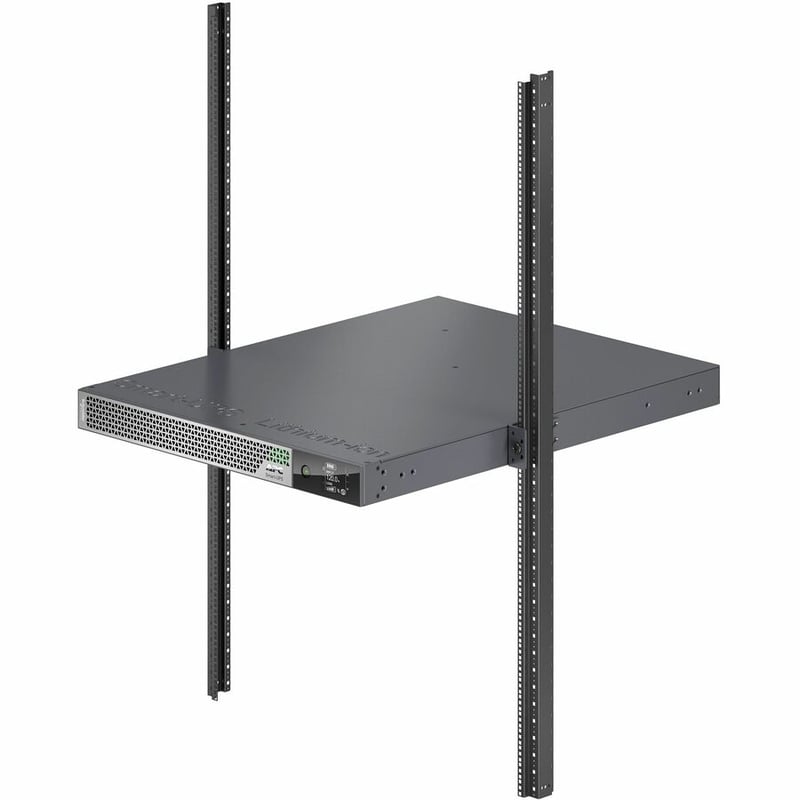

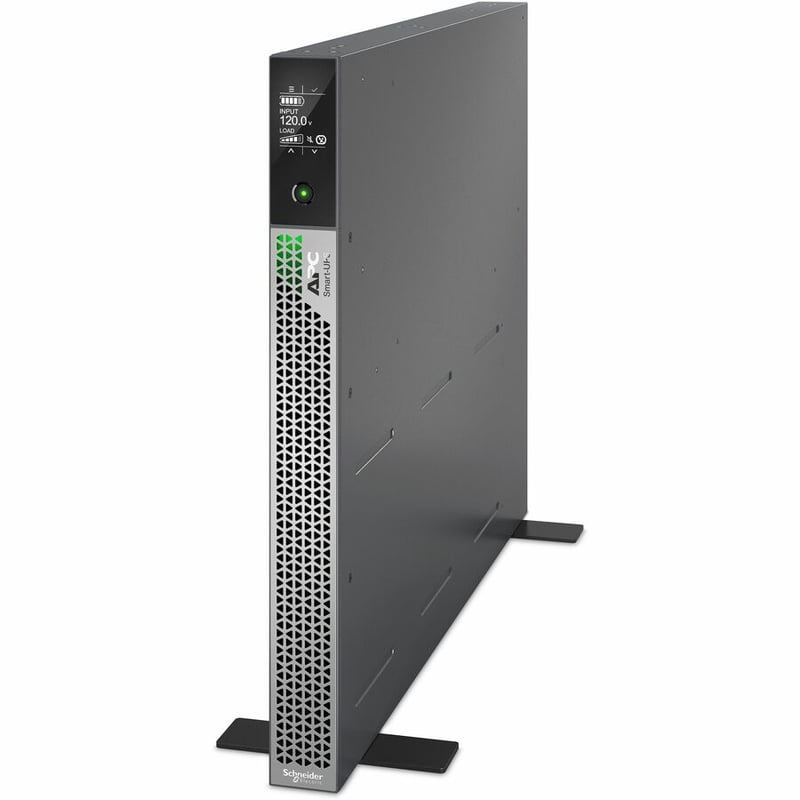

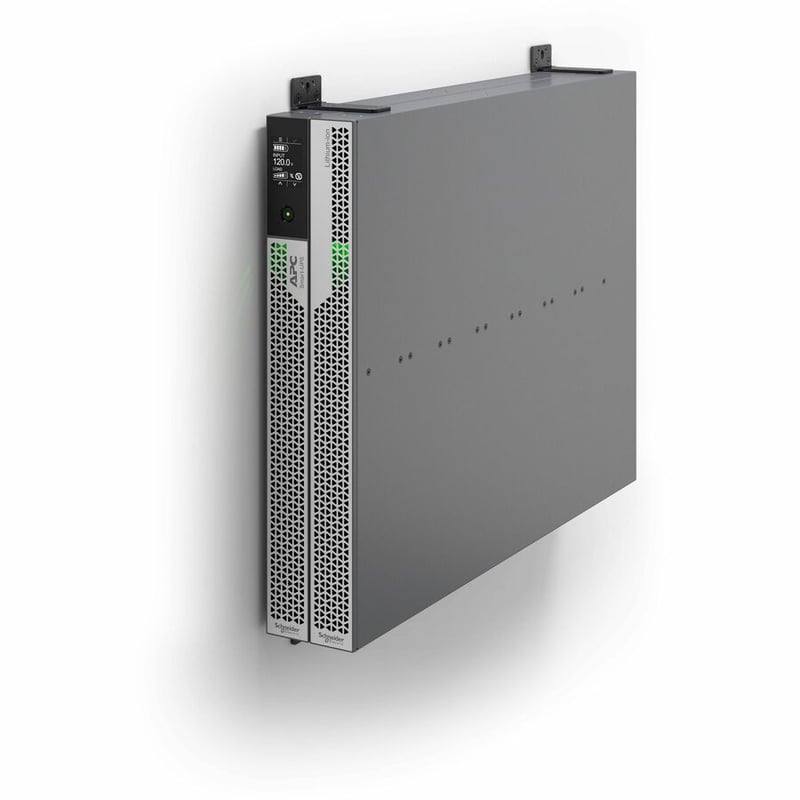

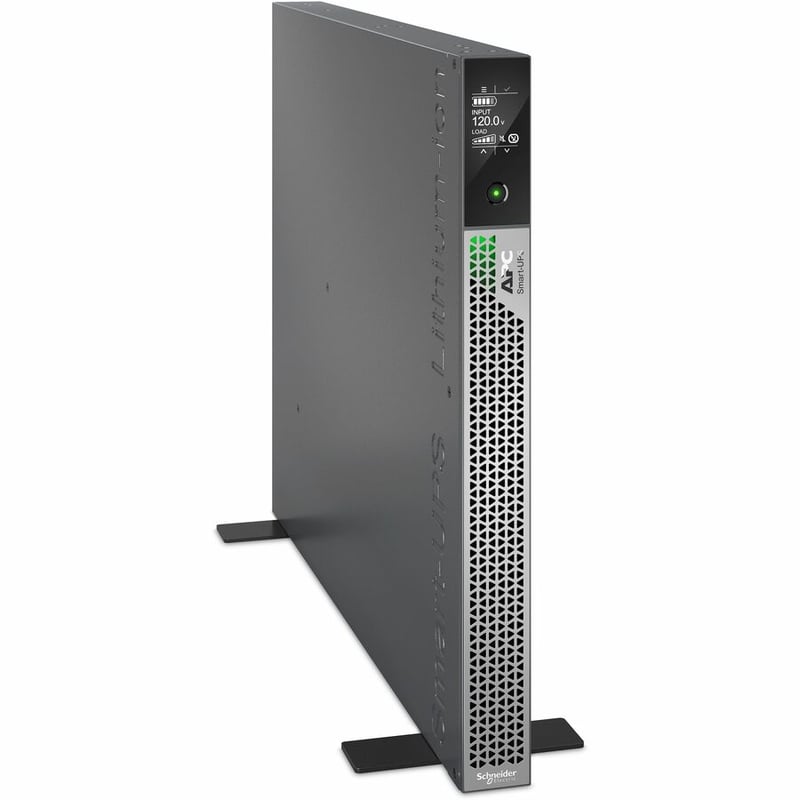

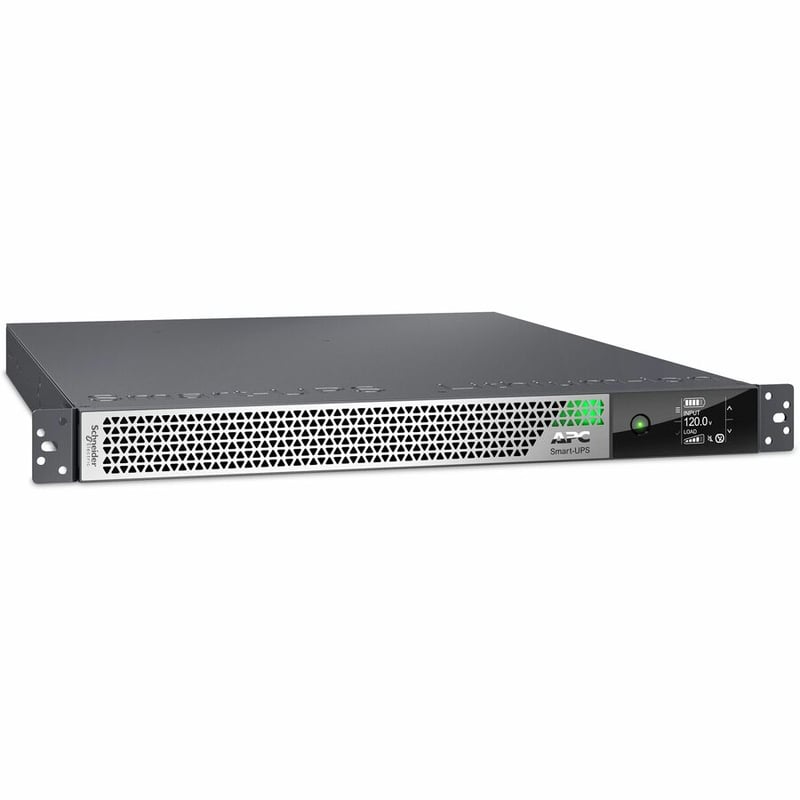

1U Rack/Tower/Wall/Ceiling/Desktop Mountable
1.50 Hour Recharge
6.05 Minute Stand
by
120 V, 125 V Input
120 V AC Output
Sine Wave
USB

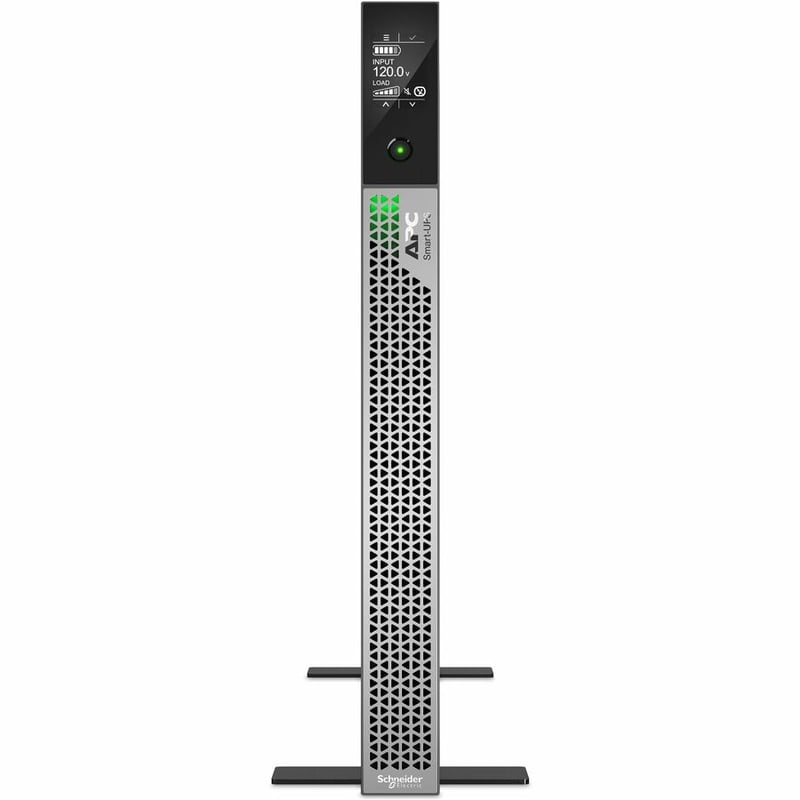

LCD Display
1 x NEMA L5
20R, 5 x NEMA 5
20R

Product Condition: New and Factory Fresh

Limited Warranty5 YearAdditional Warranty Information5 years repair or replace

Shipping Weight: 54 lbs.

APC by Schneider Electric Smart-UPS Ultra 2200VA Rack/Tower/Wall/Ceiling/Desktop Mountable UPS

Overview

Tech Specs

Specifications

Manufacturer	Schneider Electric SA
Manufacturer Part Number	SRTL2K2RM1UC
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC by Schneider Electric
Product Line	Smart-UPS Ultra
Product Name	Smart-UPS Ultra 2200VA Rack/Tower/Wall/Ceiling/Desktop Mountable UPS
Marketing Information	Ultra-high power density, On-Line power protection with Lithium-ion batteries and scalable runtime options.
Packaged Quantity	1
Product Type	Dual Conversion Online UPS

Technical Information

Plug/Connector Type	NEMA 5-20P
Receptacle Type	NEMA 5-20P

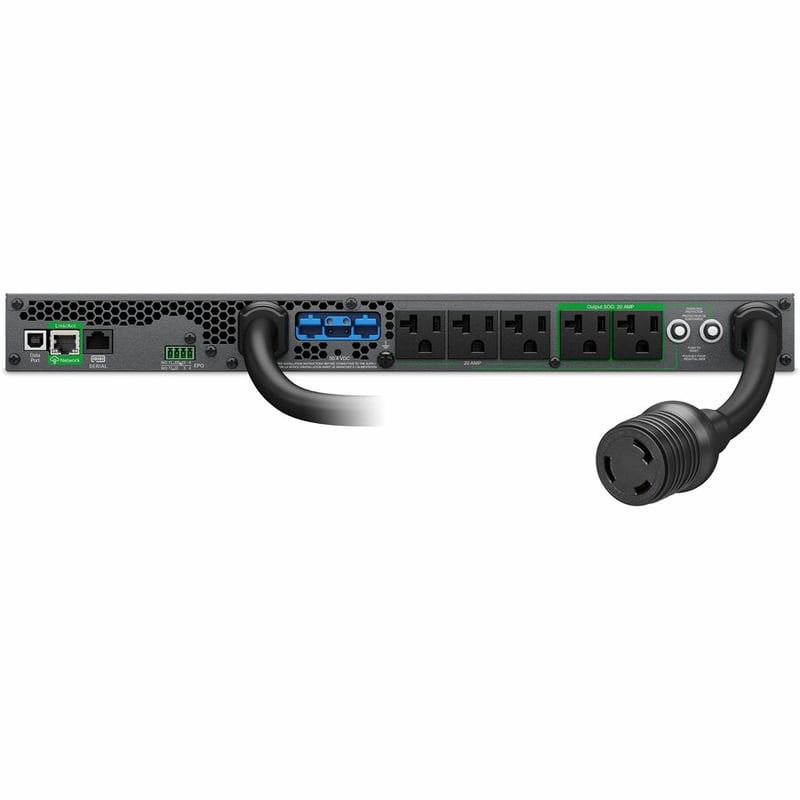

Receptacle Detail	1 x NEMA L5-20R 5 x NEMA 5-20R
Cord Length	8 ft
Application/Usage	Network Server

Power Description

Load Capacity (VA)	2200 VA
Load Capacity (Watt)	2200 W
Input Voltage	120 V 125 V
Output Voltage	120 V AC
Input Frequency	60 Hz
Output Frequency	60 Hz
Waveform Type	Sine Wave

Display & Graphics

Display

LCD

Interfaces/Ports

Network (RJ-45)	Yes
USB	Yes
EPO Port	Yes

Battery Information

DC System Voltage	50 V DC
Battery Chemistry	Lithium Ion (Li-Ion)
Battery Energy	1123.2 kJ
Backup/Run Time (Full Load)	6.05 Minute
Backup/Run Time (Half Load)	12.65 Minute
Typical Battery Recharge Time	1.50 Hour
Replaceable Battery	Yes

Environmental Conditions

Maximum Operating Temperature	104°F (40°C)
Storage Temperature	5°F (-15°C) - 113°F (45°C)
Maximum Operating Elevation	10000 ft
Maximum Storage Elevation	50000 ft
Storage Relative Humidity	95%
Sound Emission	55 dB

Physical Characteristics

Color Family	Silver
Product Color	Silver Gray
Height	1.7"
Width	17"
Depth	22"
Rack Height	1U
Form Factor	Rack/Tower/Wall/Ceiling/Desktop Mountable
Weight (Approximate)	35.05 lb

Miscellaneous

Package Contents	Smart-UPS Ultra 2200VA Rack/Tower/Wall/Ceiling/Desktop Mountable UPS RJ45 Cable USB Cable Country-Specific Detachable Power Cord Rack Mounting Brackets Rack Mounting Support Rails Installation Guide Warranty Card
Certifications & Standards	UL/cUL listed\|FCC
Environmentally Friendly	Yes
Environmental Certification	RoHS
Green Premium	Yes
Mercury Free	Yes
RoHS Exemption Information	https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SRTL2K2RM1UC_ROHS_DECLARATION&p_FileName=SRTL2K2RM1UCKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=555828789&lang=en-us
EU RoHS Declaration URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=555828789&lang=en-us
Environmental Profile Availability	https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP2311011_V1
End of Life Manual Availability	https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI2311011_V1
REACH free of SVHC	No
WEEE Statement	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Warranty

Limited Warranty	5 Year
Additional Warranty Information	5 years repair or replace
