POWER DISTRIBUTION MODULE 3KVA 6KVA UPS L6-30P 1 L6-30R 1XL14-30R

Name: POWER DISTRIBUTION MODULE 3KVA 6KVA UPS L6-30P 1 L6-30R 1XL14-30R
Brand: EATON
SKU: SN0862
Price: 1248.81 USD
Availability: InStock

EATON

PCN#

SN0862

MFG#

9PXPPDM1G2

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$1,248.81

Extended & Accidental Damage Protection Plans Available Details

3-Year $143.99

2-Year $107.99

Estimated Shipment:

Product Highlights:

NEMA L6
30P
1 x NEMA L14
30R, 1 x NEMA L6
30R, 6 x NEMA 5
20R
230 V AC
Surge Protection
6 ft Cord Length
3U
Rack
mountable
Rack/Tower

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 129 lbs.

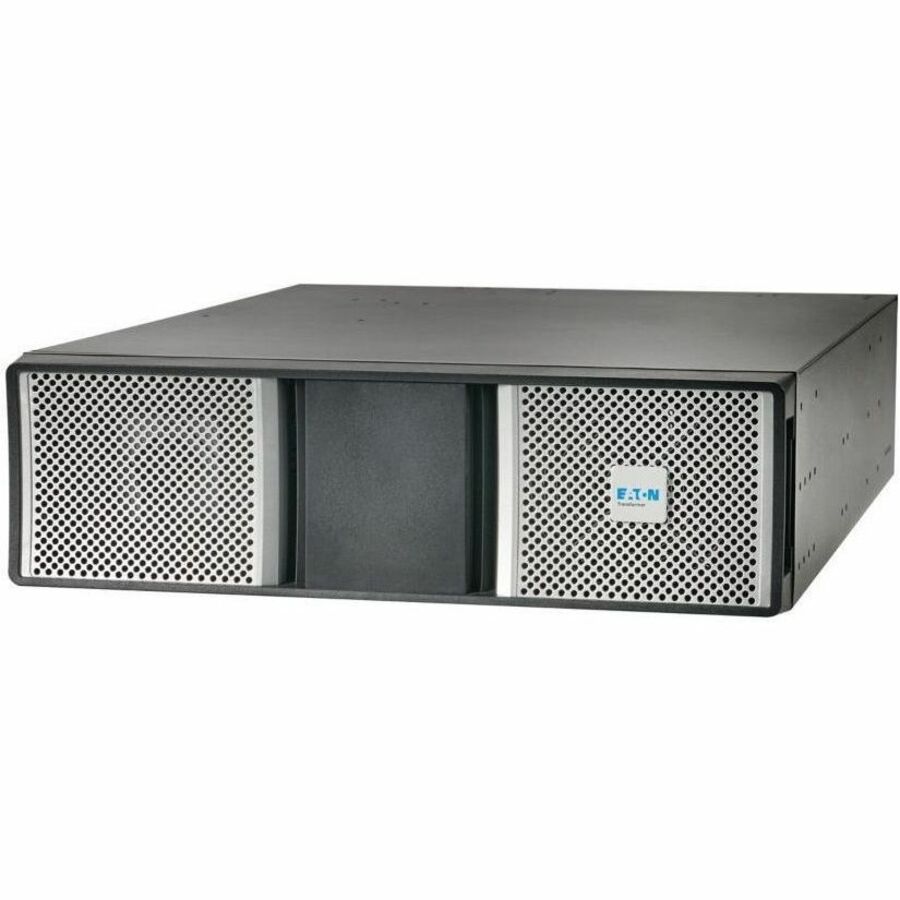

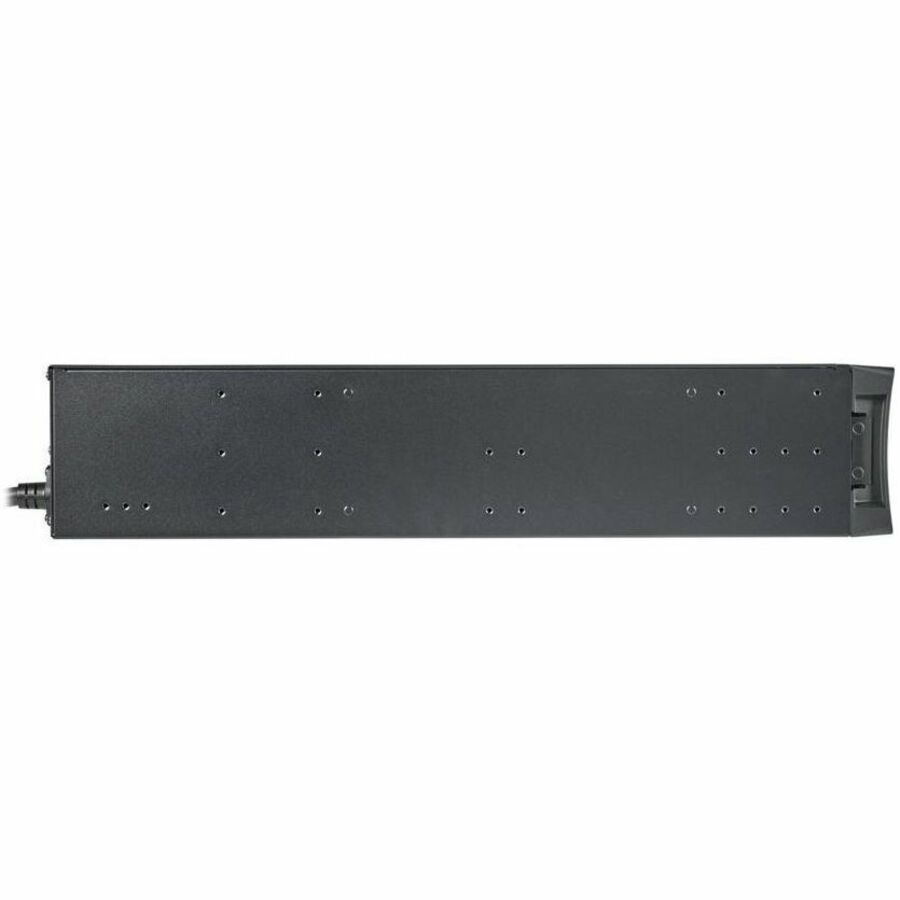

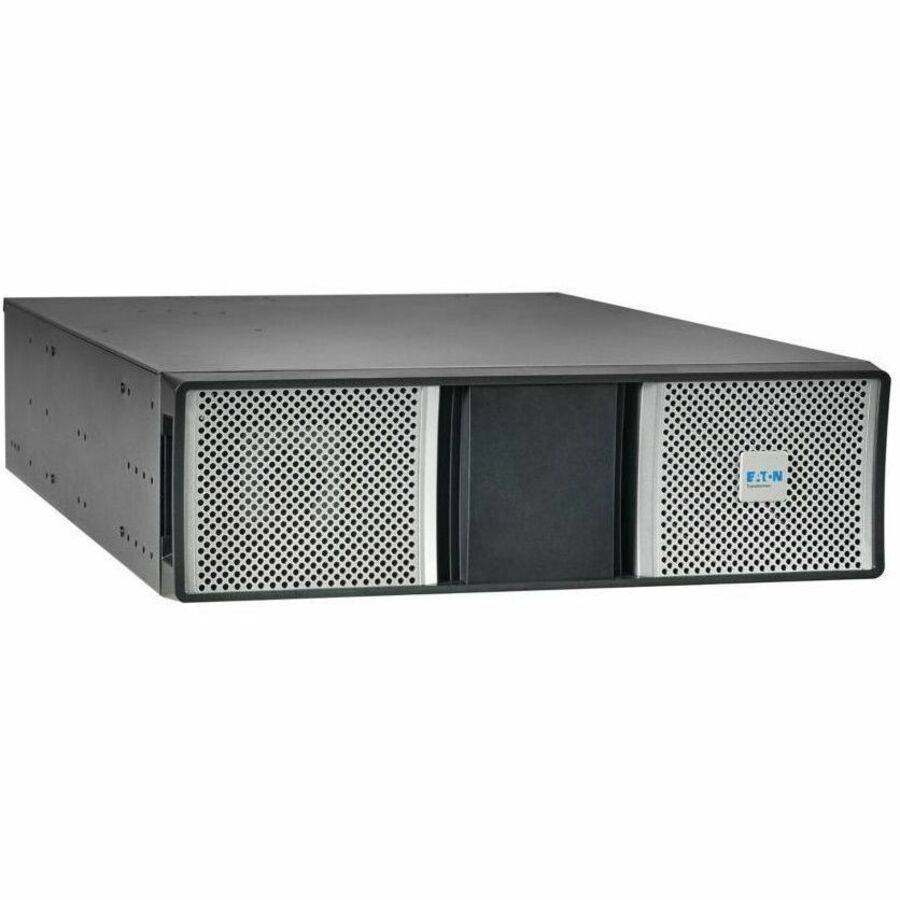

Eaton 9PX G2 PowerPass Distribution Module for 3kVA to 6kVA 9PX G2 UPS Systems, L6-30P Input, 1x L6-30R, 1x L14-30R and 6x 5-20R Outlets, 3U Rack/Tower

Overview

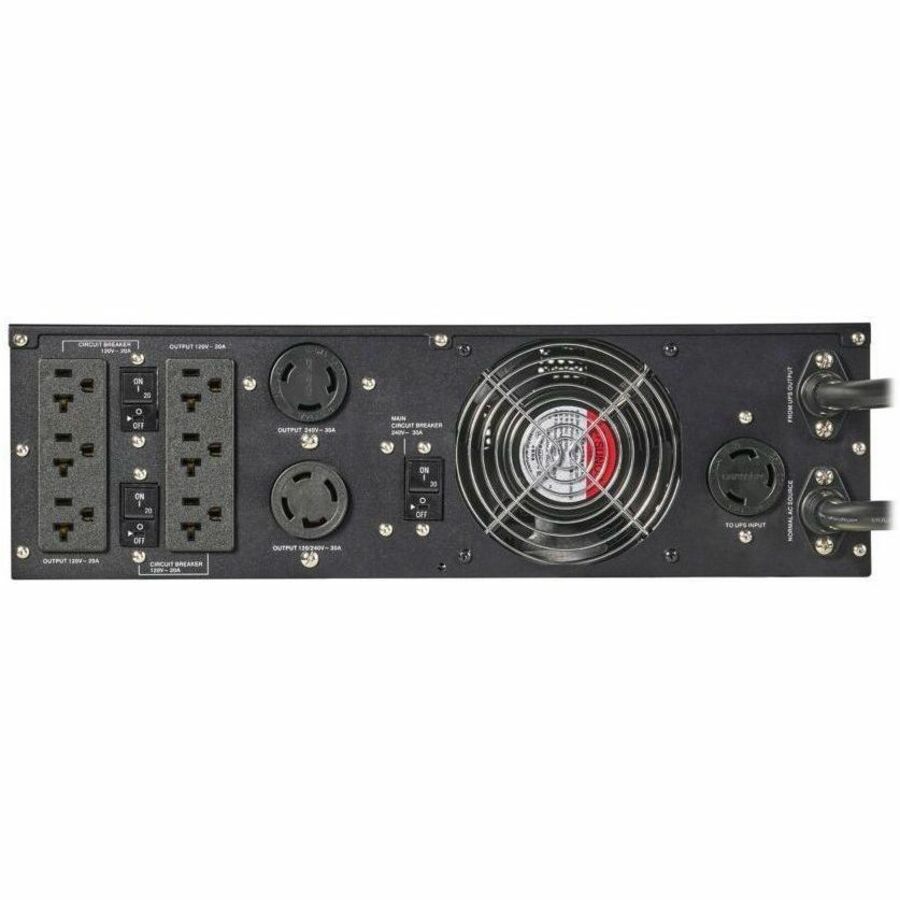

208V to 120V Power Distribution Module Converts High-Voltage Input to Low-Voltage OutputThe 9PXPPDM1G2 converts your UPS system's 208V high-voltage input to 120V low-voltage output. It features one L6-30R, one L14-30R and six NEMA 5-20R outlets for connecting equipment. Resettable 30A circuit breakers protect against overload conditions.Product TypePDUTechnical InformationPhaseSingle PhasePlug/Connector TypeNEMA L6-30PReceptacle TypeNEMA 5-20RNEMA L14-30RNEMA L6-30RReceptacle Detail1 x NEMA L14-30R1 x NEMA L6-30R6 x NEMA 5-20RProtection TypeSurge ProtectionLoad Capacity (VA)6000 WLoad Capacity (Watt)6000 WPower DescriptionInput Voltage230 V ACOutput Voltage100 V AC110 V AC120 V AC208 V AC220 V AC230 V AC240 V ACPower SourceUPSInput Current30 AInput Frequency60 HzCircuit BreakerYesPhysical CharacteristicsColor FamilyBlackProduct ColorBlackMount TypeRack-mountableForm FactorRack/TowerRack Height3UCord Length6 ftHeight5.1"Width17.3"Depth25"Environmental ConditionsMinimum Operating Temperature32°F (0°C)Maximum Operating Temperature104°F (40°C)MiscellaneousPackage ContentsPowerPass 9PXPPDM1G2 8-Outlets PDUJoining Bracket And Hardware For Tower ConfigurationRack-mounting HardwareOwner's ManualsApplication/UsageUPSCompatibility

Tech Specs

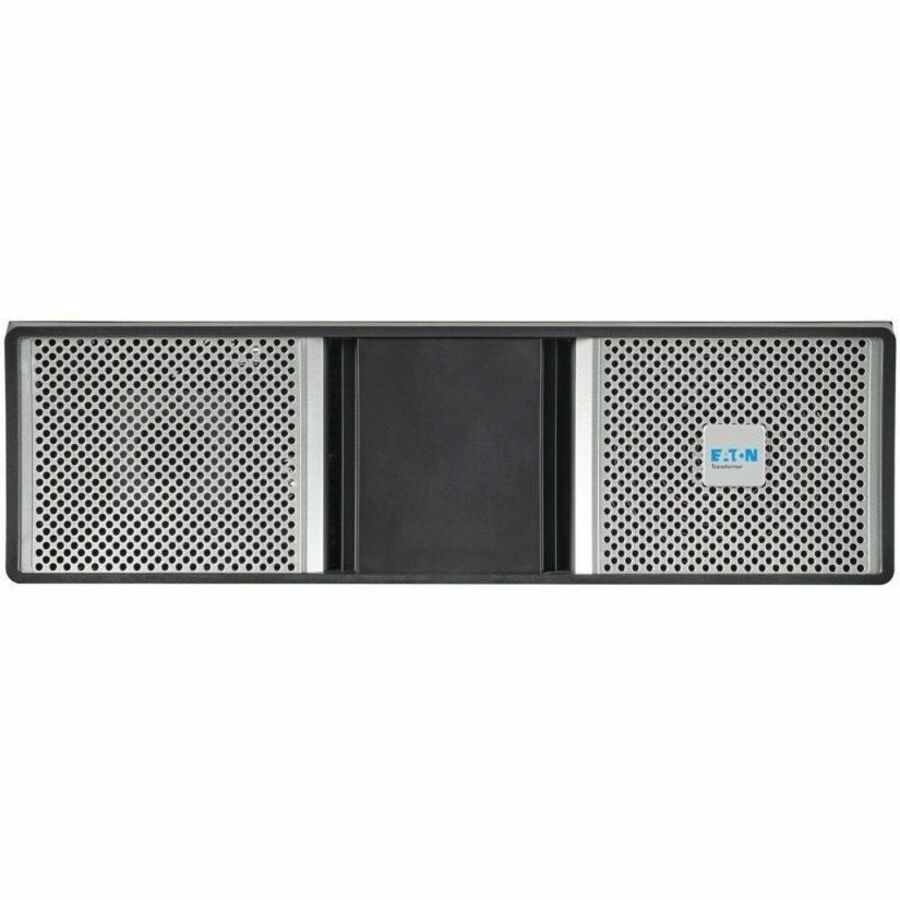

Compatible with Select Eaton UPS SystemsThe 9PXPPDM1G2 works with Eaton's 9PX5KG2, 9PX6KG2, 9PX6K-L and 9PX3K3UG2 UPS systems. Its front-panel maintenance bypass switch lets you service or replace the UPS system without powering down any equipment and risking costly downtime. All connected equipment remains energized, even while the UPS system is not present. Versatile Installation OptionsYou can mount the 9PXPPDM1G2 in 3U of space in an EIA-standard 19-inch rack using the included 4-post rail kit or an optional 2-post rail kit (RK2PC, sold separately). You can also adapt it for tower installation using the included joining bracket and hardware. The 10-foot power cord with L6-30P plug connects to a compatible AC outlet.Product TypePDUTechnical InformationPhaseSingle PhasePlug/Connector TypeNEMA L6-30PReceptacle Type

NEMA 5-20R
NEMA L14-30R
NEMA L6-30R

Receptacle Detail

1 x NEMA L14-30R
1 x NEMA L6-30R
6 x NEMA 5-20R

Protection TypeSurge ProtectionLoad Capacity (VA)6000 WLoad Capacity (Watt)6000 WPower DescriptionInput Voltage230 V ACOutput Voltage

100 V AC
110 V AC
120 V AC
208 V AC
220 V AC
230 V AC
240 V AC

Power SourceUPSInput Current30 AInput Frequency60 HzCircuit BreakerYesPhysical CharacteristicsColor FamilyBlackProduct ColorBlackMount TypeRack-mountableForm FactorRack/TowerRack Height3UCord Length6 ftHeight5.1"Width17.3"Depth25"Environmental ConditionsMinimum Operating Temperature32°F (0°C)Maximum Operating Temperature104°F (40°C)MiscellaneousPackage Contents

PowerPass 9PXPPDM1G2 8-Outlets PDU
Joining Bracket And Hardware For Tower Configuration
Rack-mounting Hardware
Owner's Manuals

Application/UsageUPSCompatibility Eaton's 9PX G2 UPS Systems

9PX5KG2
9PX6KG2
9PX6K-L
9PX3K3UG2

Certifications & Standards

CE (Europe)
NOM (Mexico)
cUL Listed

Energy StarYesCountry of OriginPhilippinesEnvironmental ComplianceRestriction of Hazardous Substances (RoHS)WarrantyLimited Warranty3 Year
