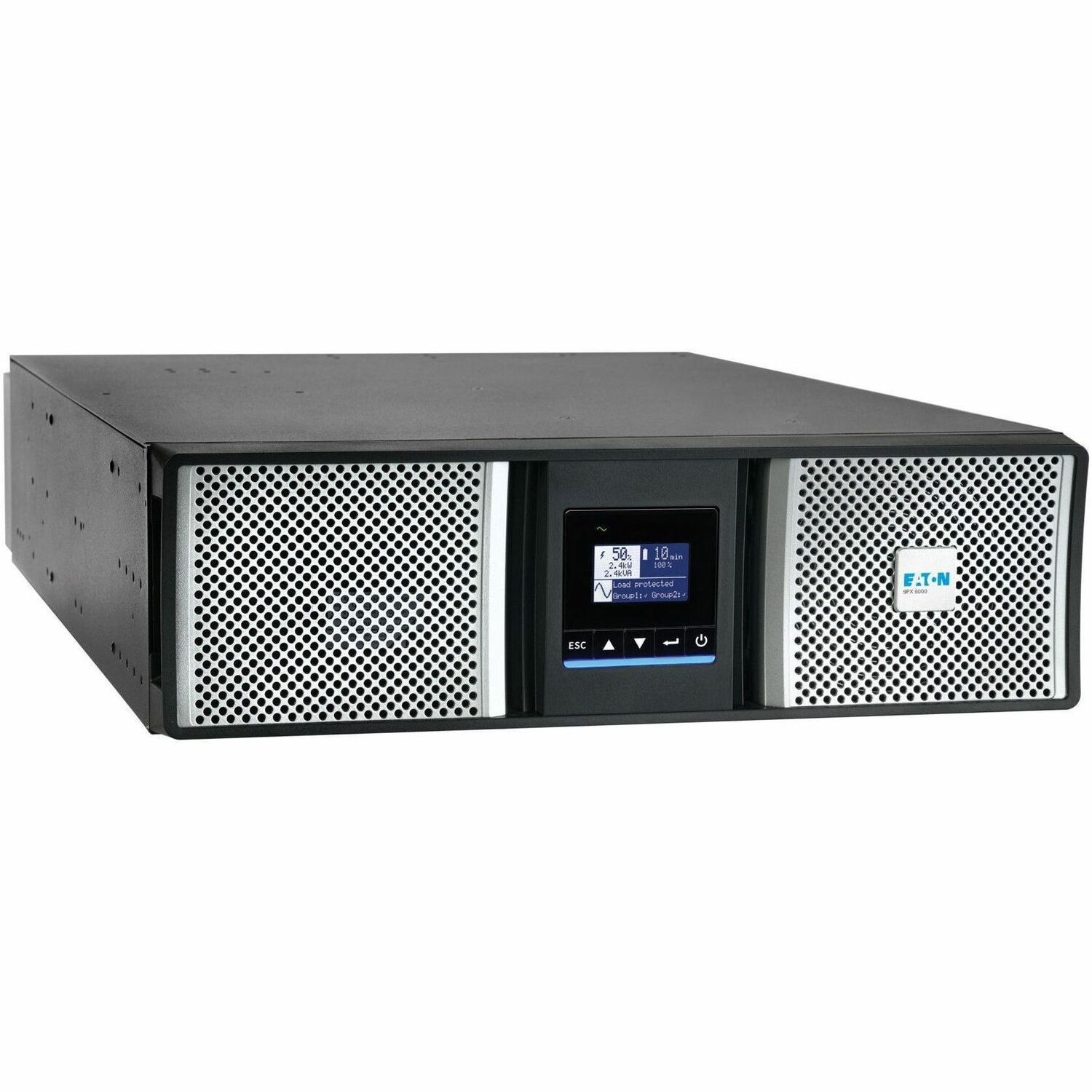

9PX 6KVA 5.4KW 208V ONLINE UPS L6-30P HW IN 2 L6-20R 2 L6-30R 3U

Delivers Maximum Power Reliability with Best-in-Class EfficiencyThe 9PX6KG2 maximizes usable output power and allows you to support more devices, including servers, PoE switches and other networking equipment. The most efficient UPS system in its class, it complies with the latest ENERGY STAR standards to reduce greenhouse gas emissions and to save you money on energy and cooling costs. Load segments with energy metering help you optimize energy use. Reliable, Expandable Battery Backup with Enhanced ManagementExclusive ABM+ technology improves predictive battery replacement analytics to better pinpoint when you should replace UPS batteries. By adding this predictive algorithm, you can determine the expected battery failure date based on real-life usage and conditions. This prevents unexpected downtime caused by waiting too long and unnecessary expense caused by replacing too soon. ABM+ also optimizes charging to increase battery lifespan up to 50%. You can connect up to 12 extended battery modules (9PXEBM180RTG2, sold separately) to add necessary runtime during prolonged power outages. Included Gigabit Network Interface Offers 24/7 Remote Access and CybersecurityThe NETWORK-M3 cybersecure network management card enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. UPS firmware can also be flashed remotely through the NETWORK-M3 without dropping the load, so you don't have to plan for downtime. The card meets both UL 2900-1 and IEC 62443-4-2 standards for cybersecurity, which were developed to address the vulnerability of connected devices to known malware/exploits and to protect business from these risks. High-Visibility LCD Interface Keeps You Informed at a GlanceThe high-contrast color LCD provides control settings and critical information to help diagnose any issues. A large color LED bar makes it easy to diagnose UPS status from a distance and quickly locate units that require attention. The interface rotates to accommodate both rack-mount and tower configurations, and it tilts up to 45 degrees for more comfortable viewing. Ready for Virtualization, HCI and Generative AIBrightlayer software provides simple yet powerful fleet management. You can remotely manage UPS systems in diverse IT environments across multiple distributed sites from one location, maintain uptime and improve operational efficiency. Brightlayer also enables intelligent coordination with virtualized, hyperconverged and generative AI infrastructure, including complex orchestrations during blackouts and other power events to extend runtime and preserve data. Product TypeDouble Conversion Online UPSTechnical InformationPlug/Connector Type

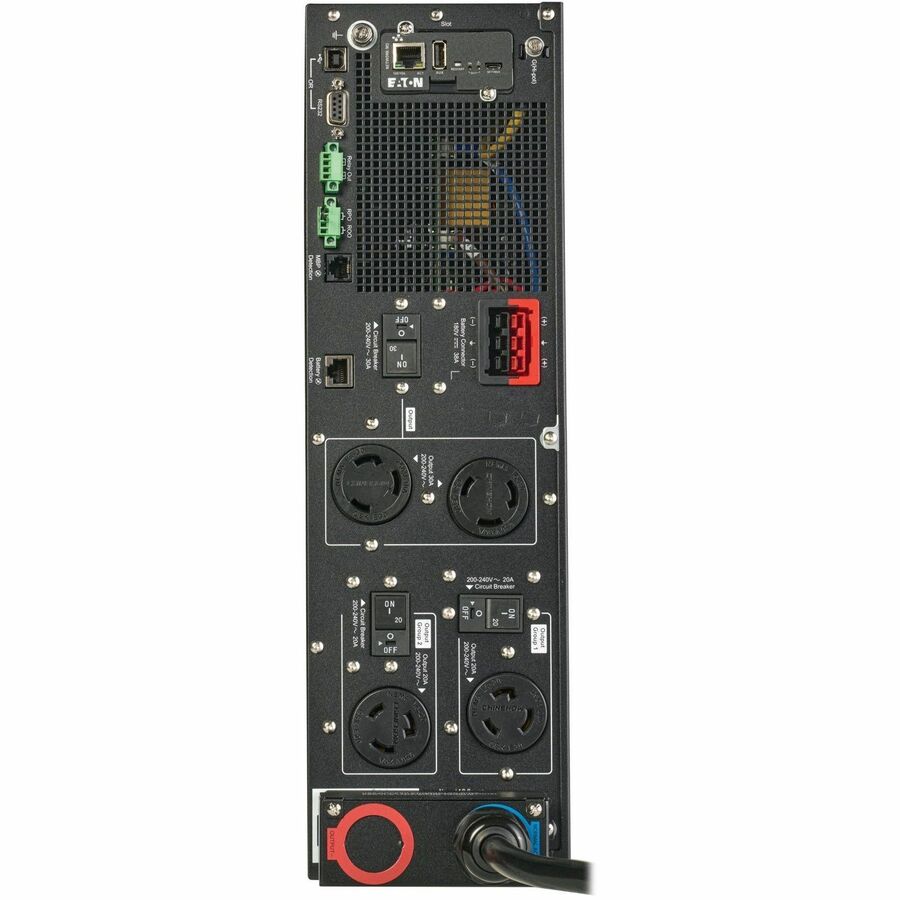

• Hardwired
• NEMA L6-30P

Receptacle Type

• Hardwired
• NEMA L6-20R
• NEMA L6-30R

Receptacle Detail

• 2 x NEMA L6-20R
• 2 x NEMA L6-30R

Cord Length10 ftEMI/RFI Noise FilterYesPhaseSingle PhaseEfficiency Detail

• 96% (AC Mode)
• 98.9% (Eco Mode)

Application/Usage

• Mission Critical Equipment
• IT
• Edge Computing
• Network
• Equipment
• IT Equipment
• Data Center
• Business
• Education
• Government
• Healthcare
• Retail
• Server
• PoE System
• Switch

Surge SuppressionYesFeaturesAdvanced Battery Management (ABM+)Power DescriptionLoad Capacity (VA)6000 VALoad Capacity (Watt)5400 WInput Voltage230 V ACInput Current24.40 AOutput Voltage

• 200 V AC
• 208 V AC
• 220 V AC
• 230 V AC
• 240 V AC

Output Frequency

• 50 Hz
• 60 Hz

Waveform Type

• Sine Wave
• Pure Sine Wave

Circuit BreakerYesOutput Power Factor0.9Display & GraphicsDisplayLCDManagementNetwork Management

• INDGW-M2 Card
• Relay-MS Card
• Network-M3 Card
• Network Card

Alarm

• Utility Power Failure
• Low Battery
• Overload
• UPS Fault
• Battery Fault
• Remote Shutdown

Controls/IndicatorsStatus Indicators LED Indicators

• LED status bar

Interfaces/PortsSerial PortYesUSBYesEPO PortYesBattery InformationDC System Voltage180 V DCBattery CharacteristicsValve-regulatedBattery ChemistryLead AcidBackup/Run Time (Full Load)3 MinuteBackup/Run Time (Half Load)8.30 MinuteTypical Battery Recharge Time3 HourHot SwappableYesReplaceable BatteryYesEnvironmental ConditionsMinimum Operating Temperature32°F (0°C)Maximum Operating Temperature104°F (40°C)Thermal Dissipation338.50 WPhysical CharacteristicsHeight5.10"Width17.30"Depth27"Rack Height3UForm FactorRack/TowerWeight (Approximate)98.30 lbMiscellaneousPackage Contents

• 9PX G2 9PX6KG2 6000VA Rack/Tower UPS
• NETWORK-M3 Gigabit Network Card
• USB Cable
• RS-232 Cable
• Cable Gland for Hardwire Connection
• Rack-mounting Hardware
• Tower Support Stands
• Quick Start Guide

Certifications & Standards

• NOM (Mexico)
• cUL Listed
• EN 62040-2
• FCC Part 15 Class A (USA)
• CE (Europe)
• FCC (USA)

Energy StarYesEnvironmental ComplianceRestriction of Hazardous Substances (RoHS)WarrantyLimited Warranty3 Year
