6000VA 5400W 208V 2 L6-20R AND 2 L6-30R 3U RACK/TOWER TAA

Name: 6000VA 5400W 208V 2 L6-20R AND 2 L6-30R 3U RACK/TOWER TAA
Brand: EATON
SKU: S38360
Price: 5063.08 USD
Availability: InStock

EATON

PCN#

S38360

MFG#

SU6000RT3UTAA

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$5,063.08

Extended & Accidental Damage Protection Plans Available Details

3-Year $471.99

2-Year $354.99

Estimated Shipment:

Product Highlights:

3U Rack/Tower
AVR
3 Minute Stand
by
230 V AC Input
220 V AC, 230 V AC, 240 V AC, 208 V AC, 200 V AC Output
Single Phase
Pure Sine Wave
Serial Port
USB
LCD Display
2 x NEMA L6
20R, 2 x NEMA L6
30R
Dry Contact, DB
9 RS
232, SNMP/HTTP Remote Monitoring, Network Card
TAA Compliant

Product Condition: New and Factory Fresh

Limited Warranty2 YearDirectly Connected Equipment Guarantee250000 Lifetime

Shipping Weight: 75 lbs.

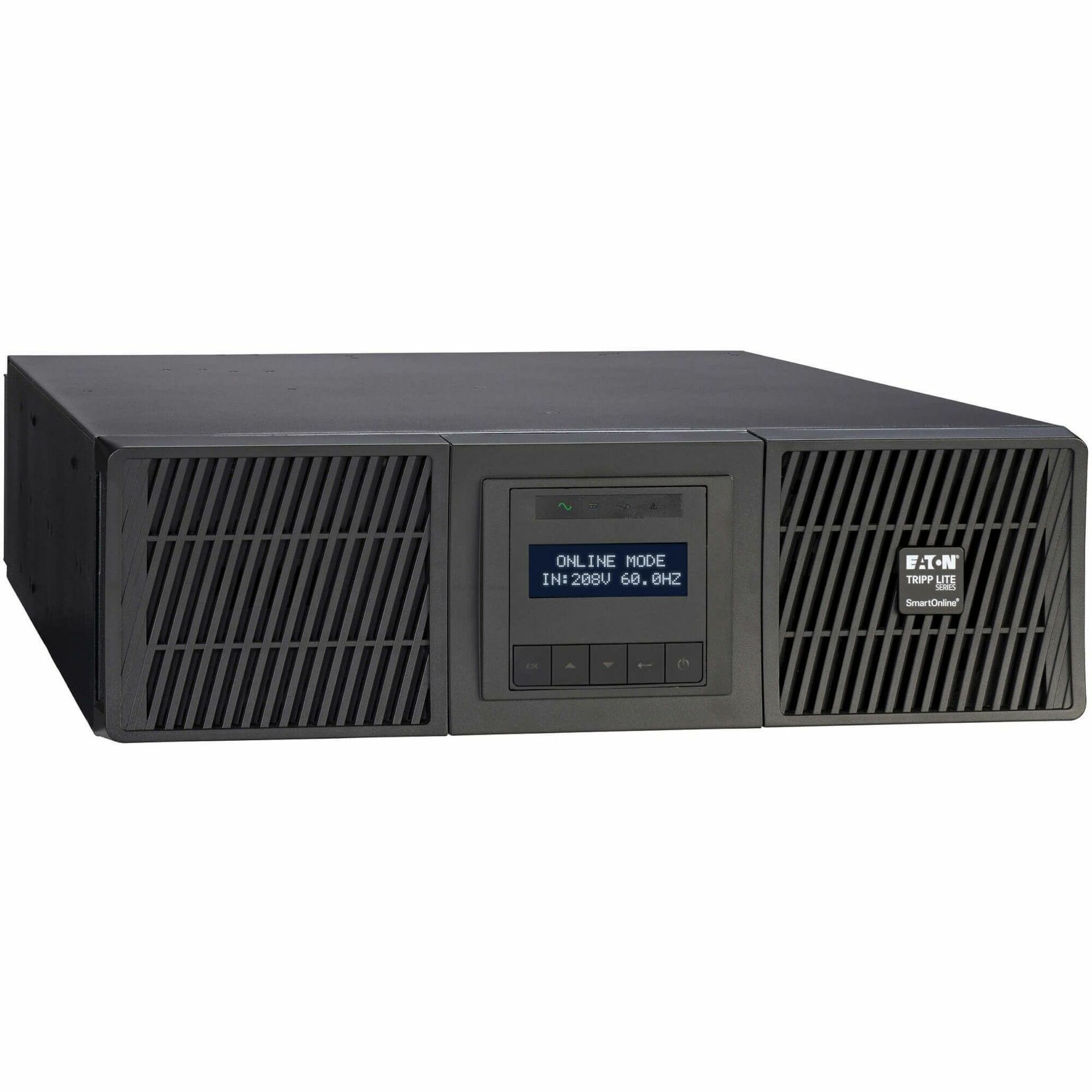

Eaton Tripp Lite Series SmartOnline 6000VA 5400W 208V Online Double-Conversion UPS - 2 L6-20R and 2 L6-30R Outlets, L6-30P Input, Network Card Included, Extended Run, 3U Rack/Tower, TAA

Overview

6kVA/5.4kW/208V Battery Backup for IT Installations and Edge NetworksThis SmartOnline® rack-mount online double-conversion UPS system provides uninterrupted battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage valuable IT equipment or destroy data. The SU6000RT3UTAA provides reliable power management for government, education, commercial, financial or healthcare networking components, including Cisco switches and servers.Product TypeDouble Conversion Online UPSTechnical InformationAVRYesPlug/Connector TypeHardwiredNEMA L6-30PReceptacle TypeNEMA L6-20RNEMA L6-30RHardwiredReceptacle Detail2 x NEMA L6-20R2 x NEMA L6-30RCord Length10 ftTransfer Time0 nsEMI/RFI Noise FilterYesPhaseSingle PhaseEnergy SavingGreen Energy-SavingEfficiency Detail93% (AC Mode)98% (ECO Mode)Application/UsageMission Critical EquipmentITNetworkEducationHealthcareMilitaryGovernmentNetwork DeviceIT EquipmentNon-critical DeviceIndustrial EquipmentSurge SuppressionYesFeaturesAudible AlarmCold Start FunctionPower DescriptionLoad Capacity (VA)6000 VALoad Capacity (Watt)5400 WInput Voltage200 V AC208 V AC220 V AC230 V AC240 V ACInput Current24.80 AOutput Voltage220 V AC230 V AC240 V AC208 V AC200 V ACOutput Frequency60 Hz50 HzWaveform TypePure Sine WaveCircuit BreakerYesOutput Power Factor0.9Display & GraphicsDisplayLCDManagementNetwork ManagementDry ContactDB-9 RS-232SNMP/HTTP Remote MonitoringNetwork CardAlarmLow BatteryOverloadUPS FaultRemote ShutdownUtility Power FailureBattery FaultControls/IndicatorsStatus Indicators

Tech Specs

Reliable, Expandable Internal Battery Backup Keeps You Operational Through Power OutagesThe field-replaceable, hot-swappable VRLA battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in the case of a prolonged blackout. Automatic restart after power outages reduces costly on-site visits. Hours of extra runtime can be achieved by connecting up to four optional extended battery modules (BP180RT3UTAA, sold separately). Pre-Installed Network Management Card Allows 24/7 Remote AccessThe WEBCARDLXE network interface enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. The IP-based Auto Probe feature ensures continuous network uptime by communicating with other network devices, detecting lost connectivity and automatically rebooting IT equipment. Optional EnviroSense2 modules (E2MT, E2MTDO and E2MTHDI, all sold separately) provide a variety of environmental monitoring and control options. Note

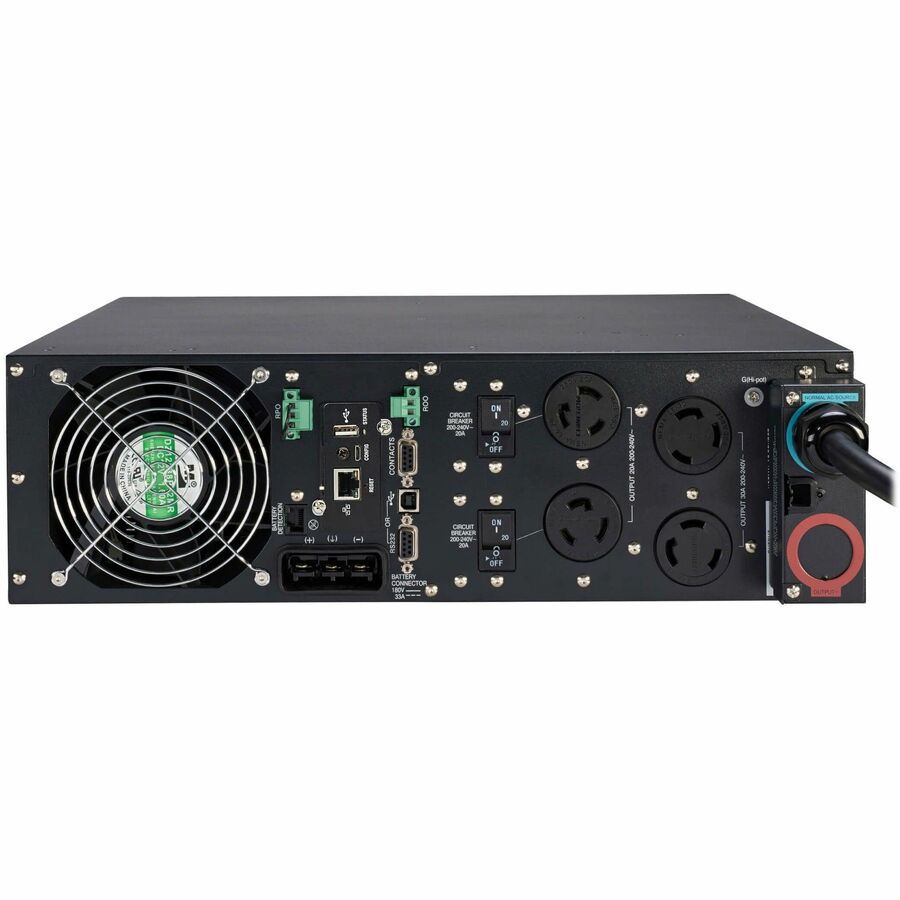

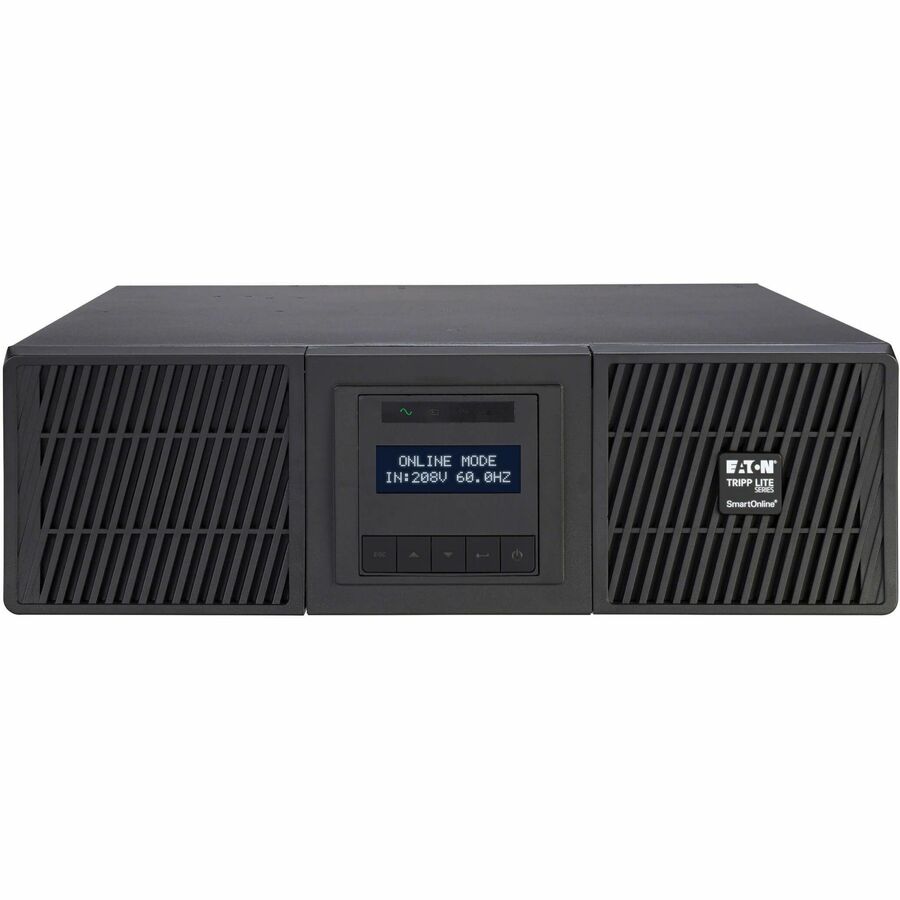

The SU6000RT3UTAA is not compatible with WEBCARDLX. NEMA Outlets Protect Your Connected ComponentsTwo L6-20R and two L6-30R managed outlets provide connected equipment with pure sine wave AC output and allow you to manage power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. The SU6000RT3UTAA also supports hardwired output. Intuitive LCD Interface Keeps You Informed at a GlanceThe menu-driven LCD provides control settings and critical information to help diagnose any issues, including alarm and fault notifications. The interface rotates to accommodate both rack-mount and tower configurations, and tilts up to 45 degrees for more comfortable viewing. Advanced Communications Ports Allow for Automatic Saves and ShutdownsRS-232 and USB ports connect to a serial-enabled device for a variety of communication options (cables are included). A dry-contact relay port can be programmed through the LCD to provide reliable communications to automation and industrial components. The RPO/ROO connectors permit emergency shutdown or remote restart of all connected equipment. Versatile Installation OptionsYou can mount the SU6000RT3UTAA in just 3U of space in an EIA-standard 19-inch rack using the included 4-post rail kit or an optional 2-post rail kit (RK2PC, sold separately). You can also adapt it for tower installation using the included support stands. The 10-foot power cord with NEMA L6-30P plug connects to a compatible AC outlet. A cable gland is included for alternate hardwire input. TAA-Compliant for GSA Schedule PurchasesThe SU6000RT3UTAA is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.Product TypeDouble Conversion Online UPSTechnical InformationAVRYesPlug/Connector Type

Hardwired
NEMA L6-30P

Receptacle Type

NEMA L6-20R
NEMA L6-30R
Hardwired

Receptacle Detail

2 x NEMA L6-20R
2 x NEMA L6-30R

Cord Length10 ftTransfer Time0 nsEMI/RFI Noise FilterYesPhaseSingle PhaseEnergy SavingGreen Energy-SavingEfficiency Detail

93% (AC Mode)
98% (ECO Mode)

Application/Usage

Mission Critical Equipment
IT
Network
Education
Healthcare
Military
Government
Network Device
IT Equipment
Non-critical Device
Industrial Equipment

Surge SuppressionYesFeatures

Audible Alarm
Cold Start Function

Power DescriptionLoad Capacity (VA)6000 VALoad Capacity (Watt)5400 WInput Voltage

200 V AC
208 V AC
220 V AC
230 V AC
240 V AC

Input Current24.80 AOutput Voltage

220 V AC
230 V AC
240 V AC
208 V AC
200 V AC

Output Frequency

60 Hz
50 Hz

Waveform TypePure Sine WaveCircuit BreakerYesOutput Power Factor0.9Display & GraphicsDisplayLCDManagementNetwork Management

Dry Contact
DB-9 RS-232
SNMP/HTTP Remote Monitoring
Network Card

Alarm

Low Battery
Overload
UPS Fault
Remote Shutdown
Utility Power Failure
Battery Fault

Controls/IndicatorsStatus Indicators LED Indicators

4 Status-indicating LEDs

Interfaces/PortsSerial PortYesUSBYesEPO PortYesNumber of USB Ports1Battery InformationDC System Voltage180 V DCBattery CharacteristicsValve-regulatedBattery ChemistryLead AcidBackup/Run Time (Full Load)3 MinuteBackup/Run Time (Half Load)8 MinuteHot SwappableYesReplaceable BatteryYesEnvironmental ConditionsMinimum Operating Temperature32°F (0°C)Maximum Operating Temperature104°F (40°C)Maximum Operating Elevation3280 ftThermal Dissipation555.37 WPhysical CharacteristicsHeight5.10"Width17.30"Depth27.03"Rack Height3UForm FactorRack/TowerWeight (Approximate)106 lbMiscellaneousPackage Contents

SmartOnline SU6000RT3UTAA 6000VA Rack/tower UPS
WEBCARDLXE Network Card
USB Cable
DB9 Cable
Tower Support Stands
Cable Gland for Hardwire Connection
Rack-mounting Hardware
Quick Start Guide

Certifications & Standards

UL 1778
cTUVus
FCC

Energy StarYesCountry of OriginTaiwanTAA CompliantYesEnvironmental Compliance

Restriction of Hazardous Substances (RoHS)
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

WarrantyLimited Warranty2 YearDirectly Connected Equipment Guarantee

250000 Lifetime
