POWER DISTRIBUTION MODULE 3KVA 6KVA 9PX G2 UPS HW 3U RACK/TOWER

Name: POWER DISTRIBUTION MODULE 3KVA 6KVA 9PX G2 UPS HW 3U RACK/TOWER
Brand: EATON
SKU: SN0839
Price: 1248.79 USD
Availability: InStock

EATON

PCN#

SN0839

MFG#

9PXPPDM2G2

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$1,248.79

Extended & Accidental Damage Protection Plans Available Details

3-Year $143.99

2-Year $107.99

Estimated Shipment:

Product Highlights:

Hardwired
1 x Hardwired
230 V AC
Surge Protection
3U
Rack
mountable
Rack/Tower

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 127 lbs.

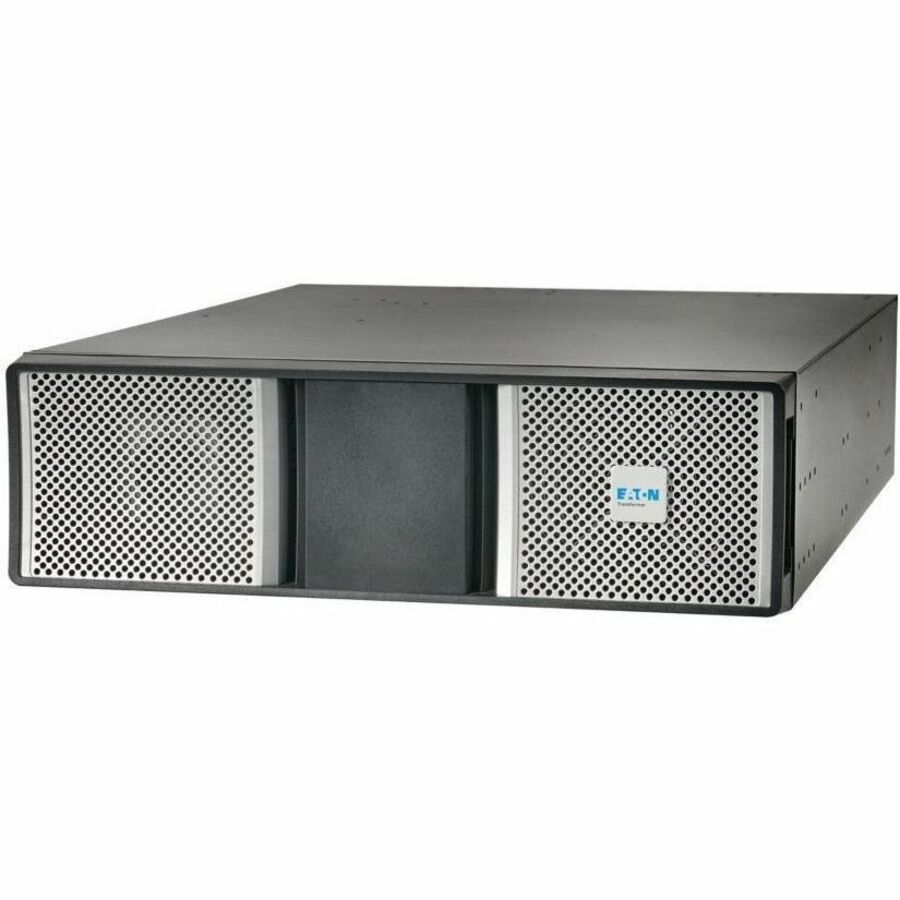

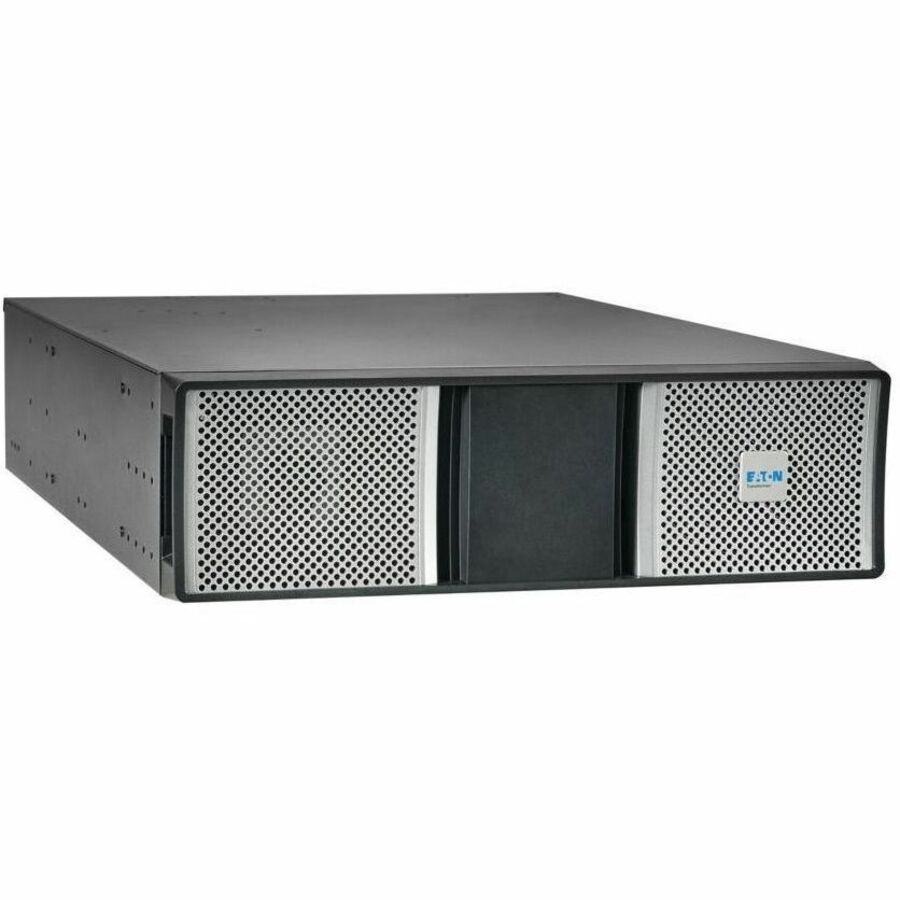

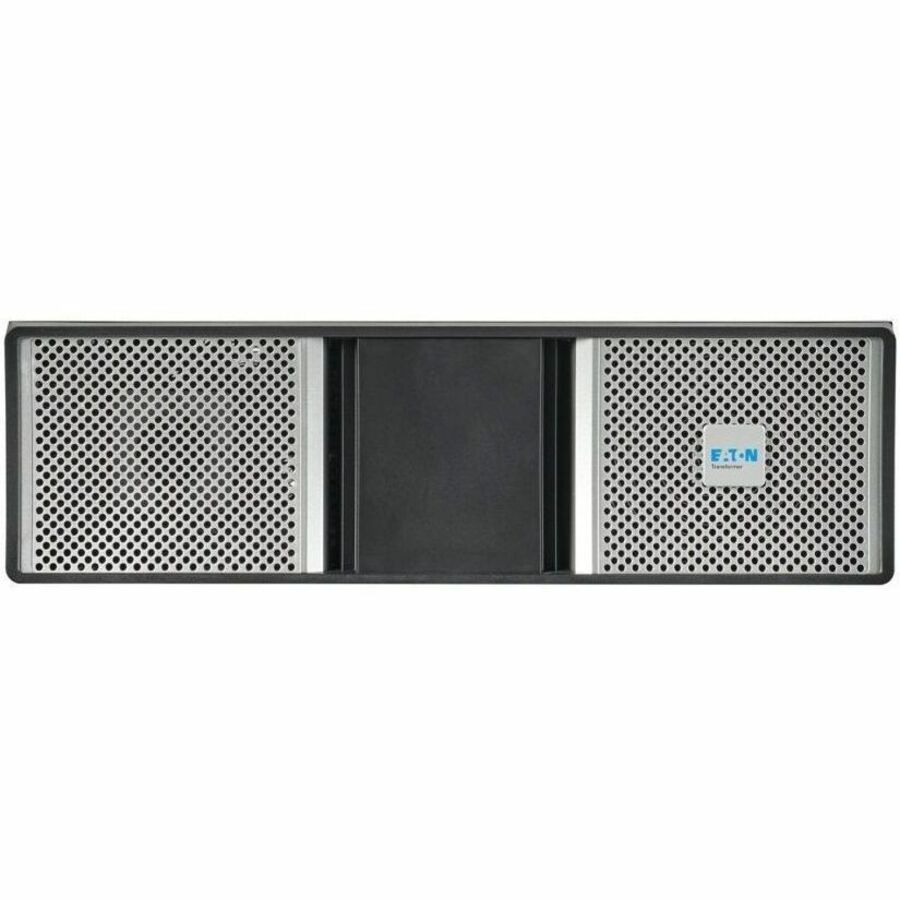

Eaton 9PX G2 PowerPass Distribution Module for 3kVA to 6kVA 9PX G2 UPS Systems, Hardwire Input/Output, 3U Rack/Tower

Overview

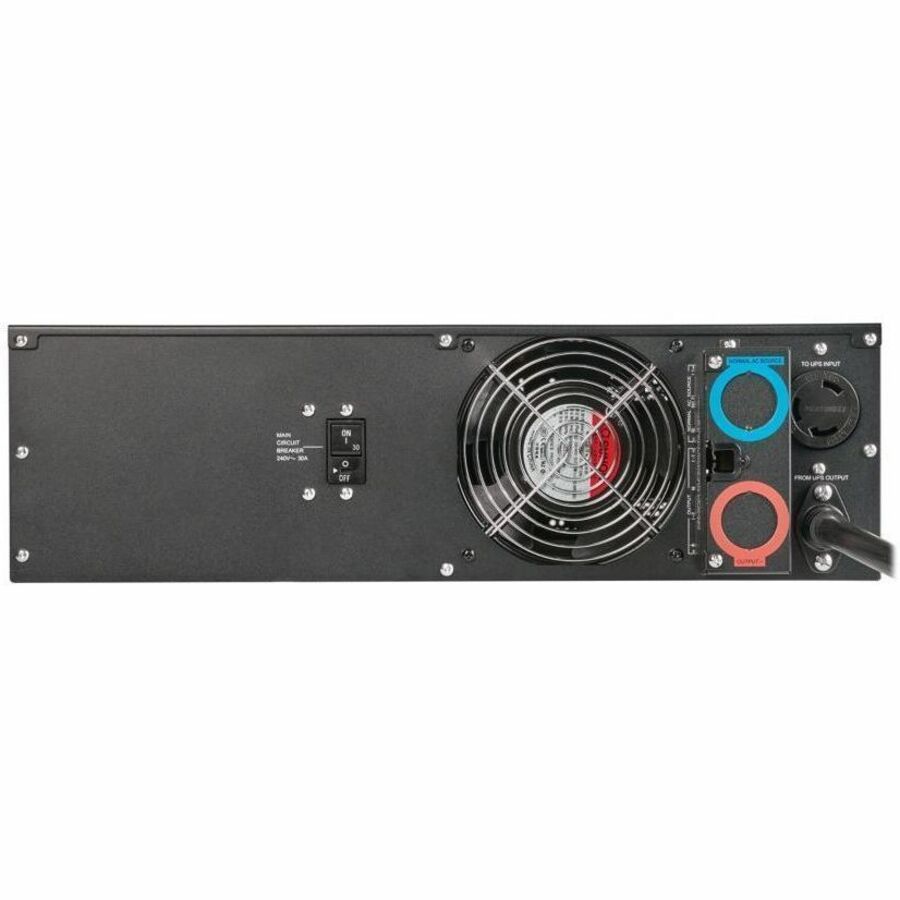

208V to 120V Power Distribution Module Converts High-Voltage Input to Low-Voltage OutputThe 9PXPPDM2G2 converts your UPS system's 208V high-voltage input to 120V low-voltage output. It features hardwired input and output for connecting equipment and resettable 30A circuit breakers that protect against overload conditions.Product TypePDUTechnical InformationPhaseSingle PhasePlug/Connector TypeHardwiredReceptacle TypeHardwiredReceptacle Detail1 x HardwiredProtection TypeSurge ProtectionLoad Capacity (VA)6000 WLoad Capacity (Watt)6000 WPower DescriptionInput Voltage230 V ACOutput Voltage100 V AC110 V AC120 V AC208 V AC220 V AC230 V AC240 V ACPower SourceUPSInput Current30 AInput Frequency60 HzCircuit BreakerYesPhysical CharacteristicsMount TypeRack-mountableForm FactorRack/TowerRack Height3UHeight5.1"Width17.3"Depth26.9"Environmental ConditionsMinimum Operating Temperature32°F (0°C)Maximum Operating Temperature104°F (40°C)MiscellaneousPackage ContentsPowerPass 9PXPPDM2G2 1-Outlet PDU2 x Cable GlandsJoining Bracket And Hardware For Tower ConfigurationRack-mounting HardwareUser's GuideApplication/UsageUPSCompatibility

Tech Specs

Compatible with Select Eaton UPS SystemsThe 9PXPPDM2G2 works with Eaton's 9PX5KG2, 9PX6KG2, 9PX6K-L and 9PX3K3UG2 9PX G2 UPS systems. Its front-panel maintenance bypass switch lets you service or replace the UPS system without powering down any equipment and risking costly downtime. All connected equipment remains energized, even while the UPS system is not present. Versatile Installation OptionsYou can mount the 9PXPPDM2G2 in 3U of space in an EIA-standard 19-inch rack using the included 4-post rail kit or an optional 2-post rail kit (RK2PC, sold separately). You can also adapt it for tower installation using the included joining bracket and hardware.Product TypePDUTechnical InformationPhaseSingle PhasePlug/Connector TypeHardwiredReceptacle TypeHardwiredReceptacle Detail1 x HardwiredProtection TypeSurge ProtectionLoad Capacity (VA)6000 WLoad Capacity (Watt)6000 WPower DescriptionInput Voltage230 V ACOutput Voltage

100 V AC
110 V AC
120 V AC
208 V AC
220 V AC
230 V AC
240 V AC

Power SourceUPSInput Current30 AInput Frequency60 HzCircuit BreakerYesPhysical CharacteristicsMount TypeRack-mountableForm FactorRack/TowerRack Height3UHeight5.1"Width17.3"Depth26.9"Environmental ConditionsMinimum Operating Temperature32°F (0°C)Maximum Operating Temperature104°F (40°C)MiscellaneousPackage Contents

PowerPass 9PXPPDM2G2 1-Outlet PDU
2 x Cable Glands
Joining Bracket And Hardware For Tower Configuration
Rack-mounting Hardware
User's Guide

Application/UsageUPSCompatibility Eaton's 9PX G2 UPS Systems

9PX5KG2
9PX6KG2
9PX6K-L
9PX3K3UG2

Certifications & Standards

cUL Listed
NOM (Mexico)
CE (Europe)

Energy StarYesCountry of OriginPhilippinesEnvironmental ComplianceRestriction of Hazardous Substances (RoHS)WarrantyLimited Warranty3 Year
