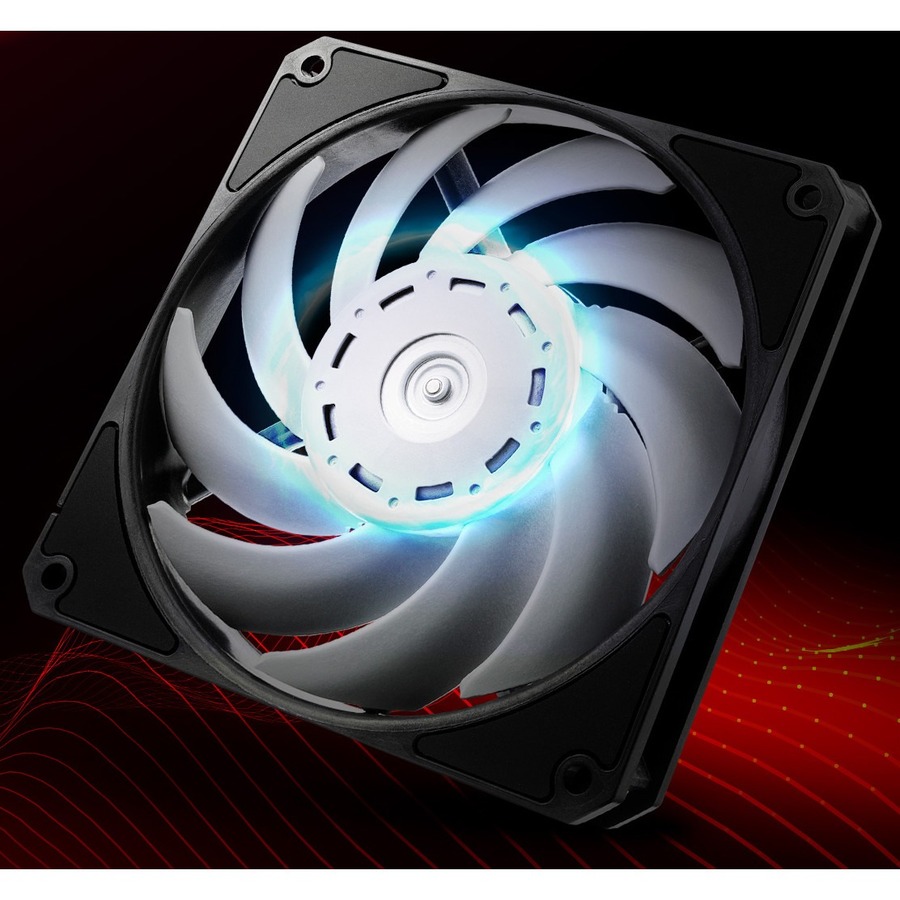

XPG VENTO PRO 120 PWM Cooling Fan - 1 Pack

Name: XPG VENTO PRO 120 PWM Cooling Fan - 1 Pack
Brand: A-DATA TECHNOLOGY
SKU: 1198BE
Price: 28.82 USD
Availability: InStock

A-DATA TECHNOLOGY

PCN#

1198BE

MFG#

75260188

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$28.82

Extended & Accidental Damage Product Replacement Plan Available Details

2-Year $9.99

1-Year $7.99

Estimated Shipment:

Product Highlights:

4.72" Maximum Fan Diameter
1 x Fan(s)
75 CFM Maximum Airflow
2150 rpm
Dual Ball Bearing
4
Pin PWM
1
Motherboard, PC
28.5 Year Life

Product Condition: New and Factory Fresh

Limited Warranty2 Year

Shipping Weight: 1 lbs.

XPG VENTO PRO 120 PWM Cooling Fan - 1 Pack

Overview

Tech Specs

Specifications

Manufacturer	ADATA Technology Co., Ltd
Manufacturer Part Number	75260188
Manufacturer Website Address	http://www.adata.com
Brand Name	XPG
Product Line	VENTO PRO 120 PWM
Product Model	VENTOPRO120PWM-BKCWW
Product Name	VENTO PRO 120 PWM Cooling Fan
Marketing Information	XPG VENTO PRO 120 PWM is a high performance fan with silent operation. The fan's innovative design concept allows high static pressure/high airflow to co-exist with low noise and reduced fan frequency disturbance. This performance fan has several unconventional fan design approaches that can greatly dissipate heat efficiently and quietly. HIGH PERFORMANCE FAN XPG has teamed-up with Nidec, improving the original GentleTyphoon design to provide a tailored solution for modders and PC gaming enthusiasts that want only. 4-PIN PWM DESIGN Pulse Width Modulation (PWM) allows motherboards to alter fan speed RPM dynamically and smoothly without annoying stepping. Flat cable design paired with its Daisy Chain capability, it's easy to connect and simultaneously operate together to manage temperatures more efficiently. HIGH PRECISION DUAL BEARINGS Equipped with high-precision Japanese quality Dual Bearings, XPG VENTO PRO 120 PWM fan can withstand heavy duty loads and endure the highest thermal environment. Dual Bearings also operate with greater efficiency, granting quiet spinning and longer lifespan. HIGH STATIC PRESSURE XPG VENTO PRO 120 PWM has high static pressure up to 3.15mm H?O, and it's capable of producing up to 75 CFM airflow, making it an ideal air intake/exhaust gear to complement water cooling radiators, or to be installed at the front despite front panel and dust filter limiting airflow. QUIETER by Nidec DESIGN Innovative fan motor design and motor support mechanism utilize a doublevibration reduction structure and a spring instrument to greatly dampen and reduce vibration. In addition, the fan propeller is meticulously designed to reduce the disturbing frequency fan noise to a more refined "vibration tone" better suited to human ears. Anti-vibration rubber pads further dampen the noise at 28 dBA (100% duty cycle at 2,150 RPM). HIGH THERMAL ENDURANCE XPG VENTO PRO 120 PWM Fan has a verified MTTF (mean time to failure) 250,000 hours at 25?, or 60,000 hours at 60? ambient, which makes it ideal for heavier duty loads, e.g. more space-constrained builds with higher internal temperatures. Taking advantage of the high precision dual bearings, XPG VENTO PRO 120 PWM Fan can quietly operate and maintain stable at a large temperature range.
Packaged Quantity	1
Product Type	Cooling Fan

Fan Information

Number of Fans	1
Fan Bearing Type	Dual Ball Bearing
Fan Speed (Min)	900 rpm
Fan Speed (Max)	2150 rpm
Maximum Airflow	75 CFM
Noise Levels (A-Weighted)	28 dB(A)
Fan Life	28.5 Year
Maximum Air Pressure	3.15mmH2O

Interfaces/Ports

Connectors

4-Pin PWM

Power Description

Rated Current

160 mA

Physical Characteristics

Maximum Fan Diameter	4.72"
Fan Height	4.72"
Fan Width	4.72"
Fan Depth	0.98"
Weight (Approximate)	7.41 oz

Miscellaneous

Package Contents	VENTO PRO 120 PWM Cooling Fan 1 x 450mm extension cable 4 x Fan screws
Application/Usage	Motherboard PC

Warranty

Limited Warranty

2 Year
