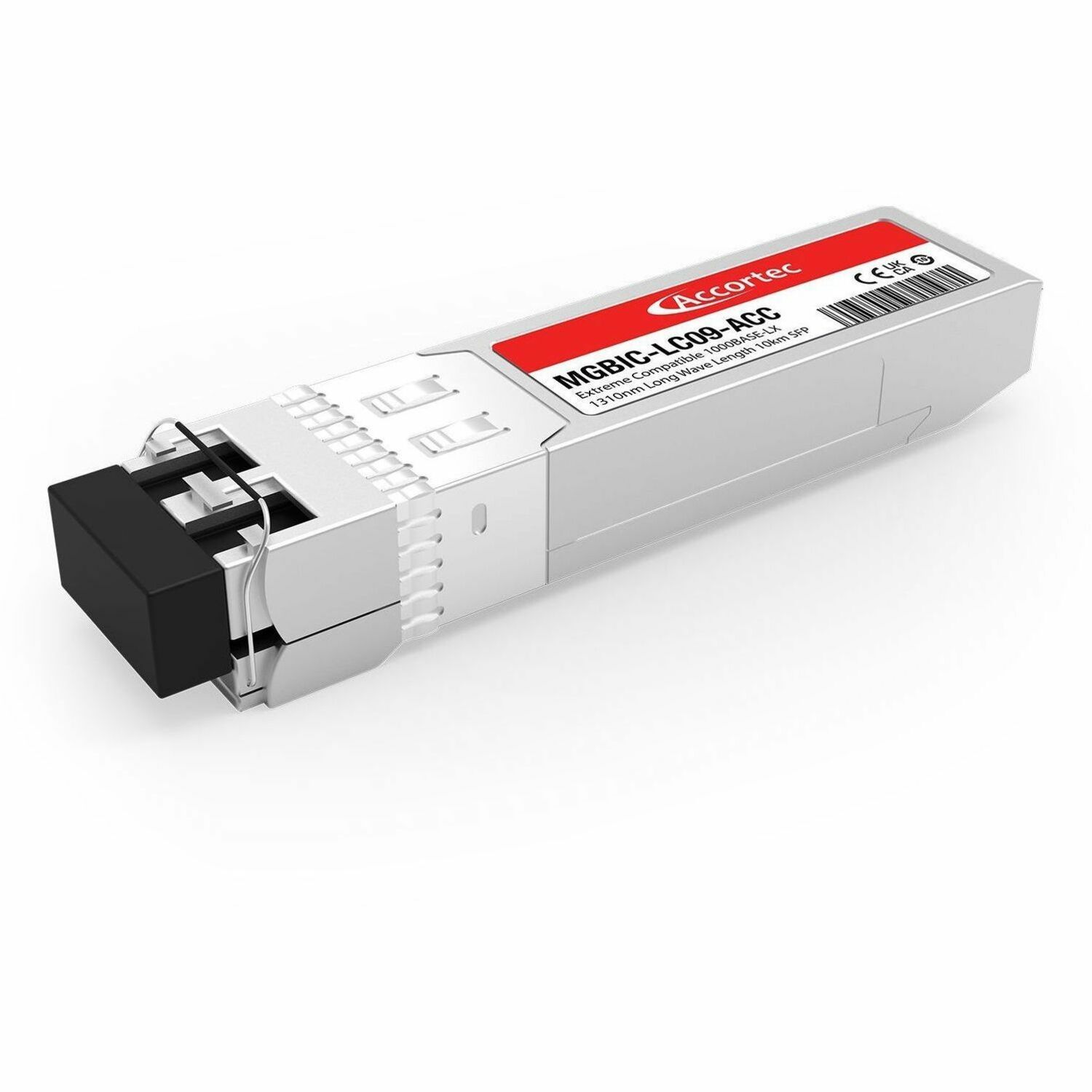

ACCORTEC MGBIC-LC09 COMPATIBLE 1000BASE-LX TRANSCEIVER (SFP1310NM10KM)

Name: ACCORTEC MGBIC-LC09 COMPATIBLE 1000BASE-LX TRANSCEIVER (SFP1310NM10KM)
Brand: ACCORTEC INCORPORATED
SKU: 2668BE
Price: 53.86 USD
Availability: InStock

ACCORTEC INCORPORATED

PCN#

2668BE

MFG#

MGBIC-LC09-ACC

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$53.86

Extended & Accidental Damage Product Replacement Plan Available Details

2-Year $23.99

1-Year $17.99

Estimated Shipment:

Product Highlights:

For Data Networking
1 x LC 1000Base
LX/SX LAN
Optical Fiber
10 µm, 62.5 µm, 50 µmMulti
mode, Single
mode
Gigabit Ethernet
1000Base
LX/SX10 km Maximum Distance

Product Condition: New and Factory Fresh

Shipping Weight: 1 lbs.

Accortec1000BASE-LX 1310nm Long Wave Length 10km SFP Extreme Networks Compatible

Overview

Tech Specs

Specifications

Manufacturer	Accortec, Inc
Manufacturer Part Number	MGBIC-LC09-ACC
Manufacturer Website Address	http://www.accortec.com
Brand Name	Accortec
Product Name	Matrix E Series MGBIC-LC09 SFP (mini-GBIC)
Marketing Information	MGBIC-LC09 have a smaller form factor than classic GBICs, providing the ability to populate more Gigabit Ethernet ports. To meet each customer's unique needs.
Product Type	SFP (mini-GBIC)

Technical Information

Application/Usage

Data Networking

Interfaces/Ports

Total Number of Ports	1
Connector Type	LC
Interfaces/Ports Details	1 x LC 1000Base-LX/SX LAN

Media & Performance

Media Type Supported	Optical Fiber
Fiber Optic Cable Core/Cladding Specification	10 µm 62.5 µm 50 µm
Fiber Mode Supported	Multi-mode Single-mode
Ethernet Technology	Gigabit Ethernet
Network Technology	1000Base-LX/SX
Maximum Distance Supported	10 km

Physical Characteristics

Height	0.3"
Width	0.5"
Depth	2.1"

Miscellaneous

Additional Information

Flexible, high-performance connectivity with wire-speed switching and routing on every port

Fully integrate into Matrix E1 WS and GWS switches

Supports all Matrix E1 multilayer features and functionality to protect existing investments

Optical Specifications:

62.5 µm MMF:
- Transmit Power (minimum): -11.5 dBm
- Receive Sensitivity: -20 dBm
- Link Power Budget: 8.5 dBm
50 µm MMF:
- Transmit Power (minimum): -11.5 dBm
- Receive Sensitivity: -20 dBm
- Link Power Budget: 8.5 dBm
10 µm MMF:
- Transmit Power (minimum): -9.5 dBm
- Receive Sensitivity: -20 dBm
- Link Power Budget: 10.5 dBm

Compatibility

Matrix E1 Workgroup Switch and Gigabit Workgroup Switch
