FORM C DOOR RELEASE RELAY, 18-24V DC INPUT

Name: FORM C DOOR RELEASE RELAY, 18-24V DC INPUT
Brand: ACCU-TECH CORPORATION
SKU: 5165BE
Price: 48.29 USD
Availability: InStock

ACCU-TECH CORPORATION

PCN#

5165BE

MFG#

RY-1824L

$48.29

Extended & Accidental Damage Product Replacement Plan Available Details

2-Year $14.99

1-Year $10.99

Estimated Shipment:

Product Highlights: No Description Found

Product Condition: New and Factory Fresh

Shipping Weight: 12 lbs.

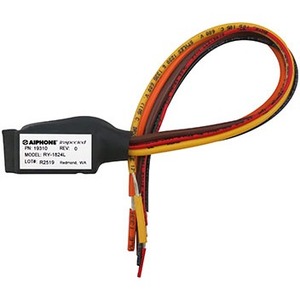

Aiphone RY-1824L Door Interference Relay

Tech Specs

Specifications

Manufacturer	Aiphone Co., Ltd
Manufacturer Part Number	RY-1824L
Manufacturer Website Address	http://www.aiphone.com
Brand Name	Aiphone
Product Model	RY-1824L
Product Name	RY-1824L Door Interference Relay
Marketing Information	The RY-1824L door release relay module is an interface between the door release contact on the Aiphone master station or CEU and the actual release mechanism. The contact closure directly from the master station or CEU has limited voltage and current capacity. Use the RY-1824L to ensure that the contact rating will be sufficient for the electric strike or magnetic lock used. The relay's contact rating supports a majority of door release hardware available. This relay is recommended for all AX, KB, JF, JO, and JP Series systems when using door release and will protect the built-in contact from possible surge damage. Us the RY-1824L with the JP-4MED, KB-3MRD, JF-2MED, JO-1MD, JO-1FD masters and sub stations or the AX-084C, AX-248C, AX-320C central control units.
Product Type	Door Interface Relay

Product Information

Application/Usage

Door Control

Power Description

Minimum Operating Voltage	18 V DC
Maximum Operating Voltage	24 V DC

Physical Characteristics

Miscellaneous

Additional Information	Relay Input: 18-24V DC, red and black wires, 22AWG Relay Output: Brown, yellow, orange wires, 18AWG Output Rating: 8A at 250V AC, 5A at 30V DC Wiring: 2-conductor from station's door release contacts to RY-1824L 2-conductor from RY-1824L to release mechanism, with power wired in series Country of origin: United States. Country of origin is subject to change
Compatibility	Aiphone Masters and Sub Stations: JP-4MED KB-3MRD JF-2MED JO-1MD JO-1F Aiphone Central Control Units: AX-084C AX-248C AX-320C
Country of Origin	United States
