1 PORT,60W,IEEE 802.3BT-COMPLIANT INDOOR POE MIDSPAN

Name: 1 PORT,60W,IEEE 802.3BT-COMPLIANT INDOOR POE MIDSPAN
Brand: ADAPTEC
SKU: 8484AZ
Price: 268.87 USD
Availability: InStock

ADAPTEC

PCN#

8484AZ

MFG#

PD-9501GCS/AC-US

$268.87

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

Product Condition: New and Factory Fresh

Limited Warranty1 Year

Shipping Weight: 2 lbs.

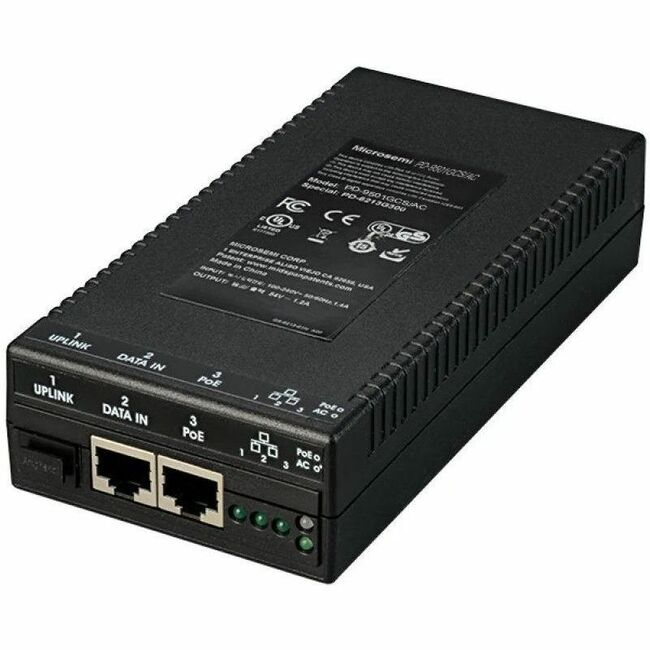

Microchip PD-9501GCS/AC Transceiver/Media Converter with power cord

Tech Specs

Specifications

Manufacturer	Microchip Technology Inc.
Manufacturer Part Number	PD-9501GCS/AC-US
Manufacturer Website Address	http://www.microchip.com
Brand Name	Microchip
Product Model	PD-9501GCS/AC
Product Name	PD-9501GCS IEEE 802.3bt Type 3 PoE Media Converter With 60W of PoE Output
Marketing Information	Microchip's PD-9501GCS is a media converter with PoE functionality that can power up to 60W. It contains three ports that can be active simultaneously and you can input data via an SFP module or RJ45 port. This media converter offers a unique solution to power long-range installations that receive data input through fiber. You can use standard SFP modules (SM or MM) with this device. The PD-9501GCS supports IEEE 802.3bt type 3 end devices and provides PoE after detection. The PoE port provides the power level required by the end device to offer a safe solution for all types of applications including IEE 802.3af-compliant loads and up to four pairs of IEEE 802.3btcompliant loads.
Product Type	Transceiver/Media Converter

Interfaces/Ports

Media & Performance

Media Type Supported	Twisted Pair Optical Fiber
Maximum Data Transfer Rate	1000 Mbit/s

I/O Expansions

Total Number of Expansion Slots	1
Expansion Slot Type	SFP (mini-GBIC)
Number of SFP Slots	1

Network & Communication

Ethernet Technology	Gigabit Ethernet
Network Technology	10/100/1000Base-T 1000Base-X

Power Description

Power Source	AC
Frequency	50 Hz 60 Hz

Physical Characteristics

Miscellaneous

Package Contents	PD-9501GCS IEEE 802.3bt Type 3 PoE Media Converter With 60W of PoE Output Power Cord
Application/Usage	Network
Certifications & Standards	IEEE 802.3bt/at/af FCC Part 15 Class B EN 55032 Class B EN55035 VCCI UL/IEC/EN 62368-1
Environmentally Friendly	Yes
Environmental Compliance	Waste Electrical and Electronic Equipment Directive (WEEE) Restriction of Hazardous Substances (RoHS) China Restriction of Hazardous Substances (China RoHS)
Country of Origin	China

Warranty

Limited Warranty

1 Year
