1GBS 8XRJ-45 TO 2XSFP PORT POE MEDIA CONVERTER

Name: 1GBS 8XRJ-45 TO 2XSFP PORT POE MEDIA CONVERTER
Brand: ADDON
SKU: NK4057
Price: 180.61 USD
Availability: InStock

ADDON

PCN#

NK4057

MFG#

ADD-GMC-8RJ2SFP-POE

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$180.61

Extended & Accidental Damage Protection Plans Available Details

2-Year $25.99

3-Year $36.99

Free Shipping

Estimated Shipment:

Product Highlights:

Network (RJ
45)
Multi
mode, Single
mode
1 Gbit/s
SFP
AC/DC

Product Condition: New and Factory Fresh

Shipping Weight: 6 lbs.

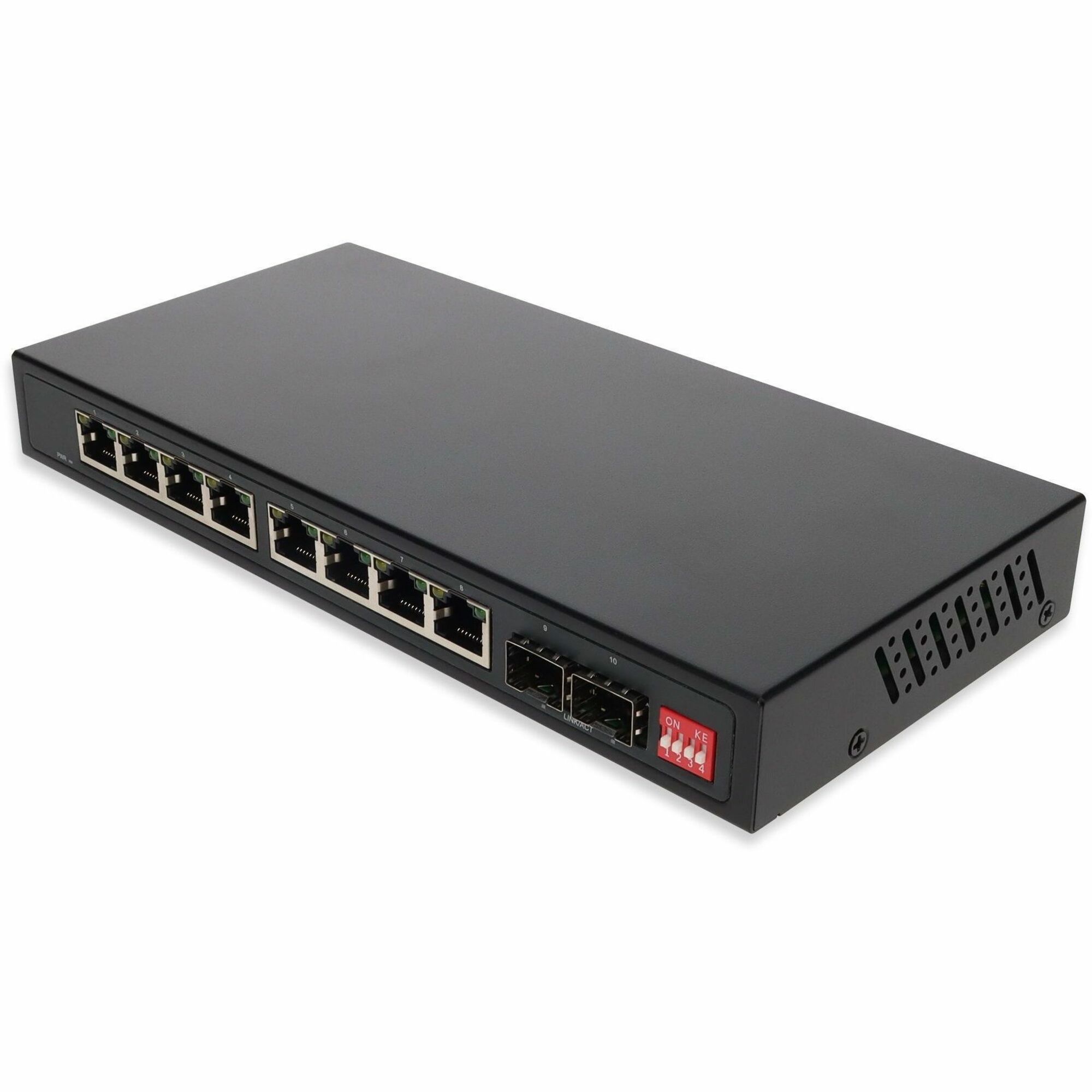

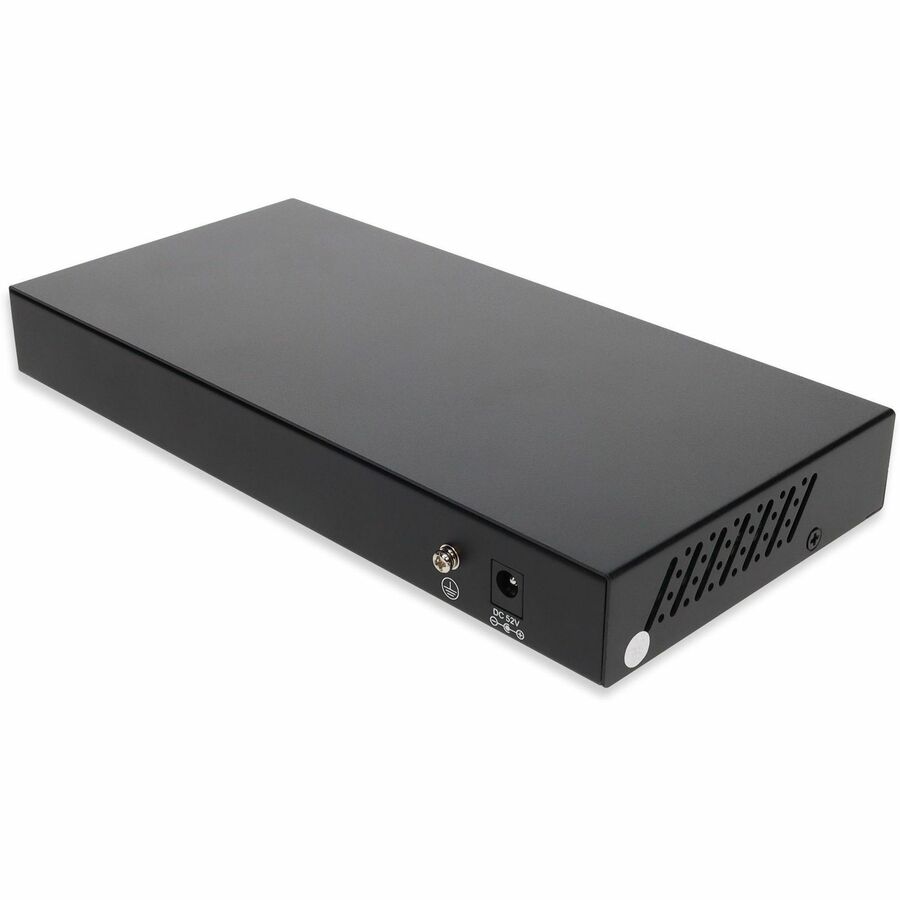

AddOn 10/100/1000Base-TX(RJ-45) x8 to 2 Open SFP Port POE Media Converter

Overview

Tech Specs

Specifications

Manufacturer	AddOn
Manufacturer Part Number	ADD-GMC-8RJ2SFP-POE
Manufacturer Website Address	http://www.addoncomputer.com
Brand Name	AddOn
Product Name	10/100/1000Base-TX(RJ-45) x8 to 2 Open SFP Port POE Media Converter
Marketing Information	This is a ten-port media converter that converts and supports eight10/100/1000Base-TX(RJ-45) to two 1000Base-X via 2 open SFP port connectors. The open SFP ports allows users to customize between the SX, LX, or BX connections. This media converter provides a cost-effective conversion from eight 10/100/1000Base-TX(RJ-45) to two 1000Base-X, while extending the network reach beyond the 100m reach limitation of copper. All the eight 10/100/1000Mbps UTP RJ-45 ports support full duplex 10/100/1000Mbps connectivity (half duplex only supported in 10/100Mbps mode). The PoE (PSE) ethernet switch is a Power Sourcing Equipment (PSE) which combines data transferred over cable with 48V(typical) power supply, providing power to IEEE802.3af powered device (PD) over CAT5e UTP cable (cable length up to 100 meters/330 feet). All the eight UTP RJ-45 ports are organized to be PoE output port, and each PoE port can output up to 15.4 watts (DC 48V/0.35A) power into CAT5e twisted-pair cable. Our media converters and network interface cards are 100% compliant for all of our networking needs. Now you have a cost-effective solution to your network upgrade needs. With our certification test program, we can guarantee your product will work right the first time.
Packaged Quantity	1
Product Type	Transceiver/Media Converter

Interfaces/Ports

Network (RJ-45)

Yes

Media & Performance

Fiber Mode Supported	Multi-mode Single-mode
Maximum Data Transfer Rate	1 Gbit/s

I/O Expansions

Expansion Slot Type

SFP

Power Description

Power Source	AC/DC
Input Voltage	48 V DC 56 V DC
Power Consumption	15 W

Physical Characteristics

Height	5.5"
Width	9.5"
Depth	3.8"
Weight (Approximate)	6 lb

Miscellaneous

Additional Information	Management Type: Unmanaged IEEE Standard: 802.3af
Compatibility	Compatible OEM: Industry Standard
Country of Origin	China
TAA Compliant	No
