1GBS 1RJ-45 TO 1 LC PORT 850NM 550M POE MINI MEDIA CONVERTER

Name: 1GBS 1RJ-45 TO 1 LC PORT 850NM 550M POE MINI MEDIA CONVERTER
Brand: ADDON
SKU: 980K24
Price: 107.34 USD
Availability: InStock

ADDON

PCN#

980K24

MFG#

ADD-GMC-SX-LC-POE-UK

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$107.34

Extended & Accidental Damage Product Replacement Plan Available Details

2-Year $32.99

1-Year $24.99

Free Shipping

Estimated Shipment:

Product Highlights:

Network (RJ
45)
1x PoE (RJ
45) Ports
1 x LC Ports
Multi
mode
850 nm Fiber
Gigabit Ethernet
10/100/1000Base
TX, 1000Base
SX
0.55 km
AC/DC

Product Condition: New and Factory Fresh

Shipping Weight: 1 lbs.

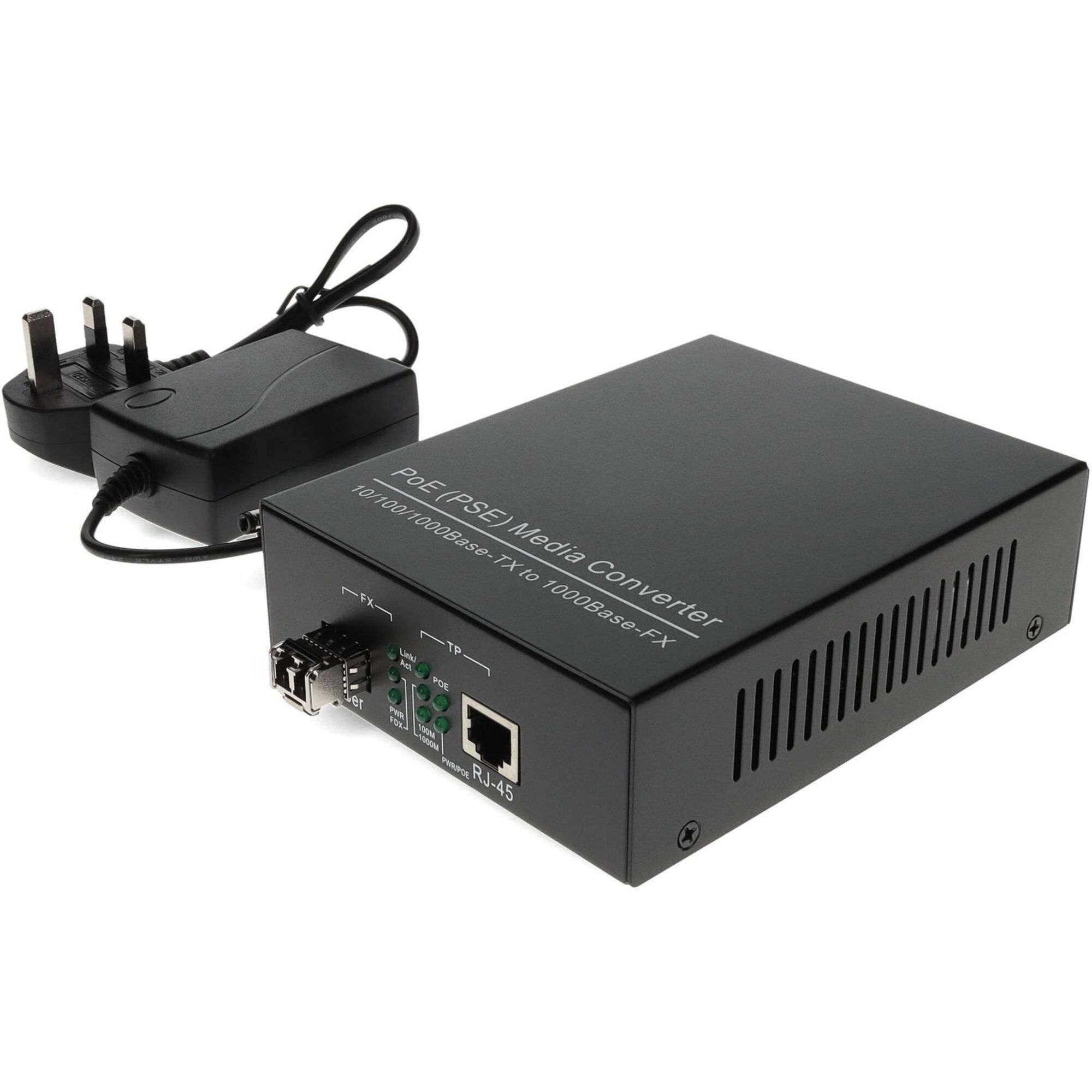

AddOn 10/100/1000Base-TX(RJ-45) to 1000Base-SX(LC) MMF 850nm 550m POE Mini Media Converter

Overview

Tech Specs

Specifications

Manufacturer	AddOn
Manufacturer Part Number	ADD-GMC-SX-LC-POE-UK
Manufacturer Website Address	http://www.addoncomputer.com
Brand Name	AddOn
Product Line	Mini
Product Name	Mini Transceiver/Media Converter
Marketing Information	This is a media converter that converts a 10/100/1000Base-TX(RJ-45) to 1000Base-SX(LC) via a 850nm multi-mode fiber (MMF) LC connector, which allows distance reach up to 550m. This provides a cost effective conversion from 10/100/1000Base-TX(RJ-45) to 1000Base-SX fiber, while extending the network reach beyond the 100m reach limitation of copper. This AC/DC powered PoE media converter is a Power Sourcing Equipment (PSE), which combines data transferred over a fiber optic link with 48V (or other voltage) power supply, providing power to IEEE802.3af powered device (PD) over CAT5 and up UTP cable (cable length up to 100 meters / 330 feet). It complies with the IEEE802.3af standard. The converter includes a single port PSE controller, which offers PD signature sensing and power monitoring features. Other features include over-current protection and LFP function. The LFP (Link Fault Pass-through) allows the media converter to monitor both the fiber and copper RX port for loss of signal. In case of a loss of RX signal on one media port, the converter will automatically disable the TX signal to the other media port, thus passing through the link fault. Our media converters and network interface cards are 100% compliant for all of our networking needs. Now you have a cost effective solution to your network upgrade needs.
Packaged Quantity	1
Product Type	Transceiver/Media Converter

Interfaces/Ports

Total Number of Ports	2
Network (RJ-45)	Yes
Number of PoE (RJ-45) Ports	1
PoE Port Type	PSE
Number of LC Ports	1

Media & Performance

Media Type Supported	Twisted Pair Optical Fiber
Fiber Mode Supported	Multi-mode
Fiber Optic Cable Wavelength	850 nm
Maximum Distance Supported	0.55 km

Network & Communication

Ethernet Technology	Gigabit Ethernet
Network Technology	10/100/1000Base-TX 1000Base-SX

Power Description

Power Source

AC/DC

Miscellaneous

Package Contents	Mini Transceiver/Media Converter 1 x Transceiver
Application/Usage	Network Industrial
Certifications & Standards	IEEE802.3af
