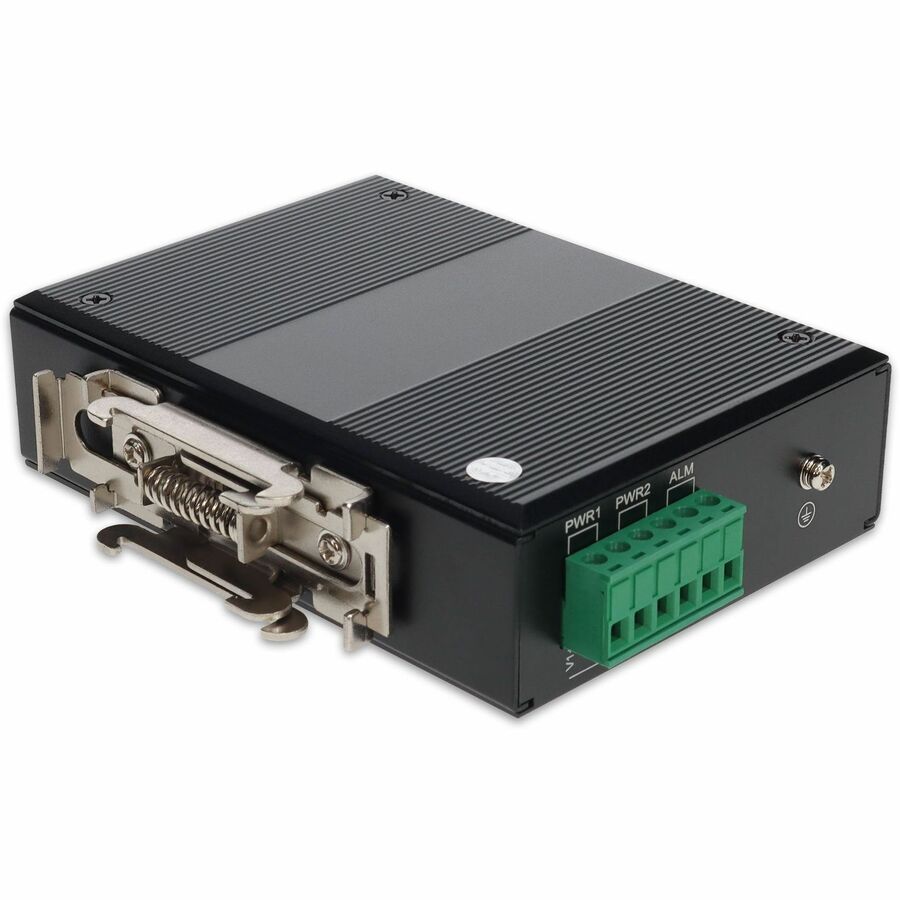

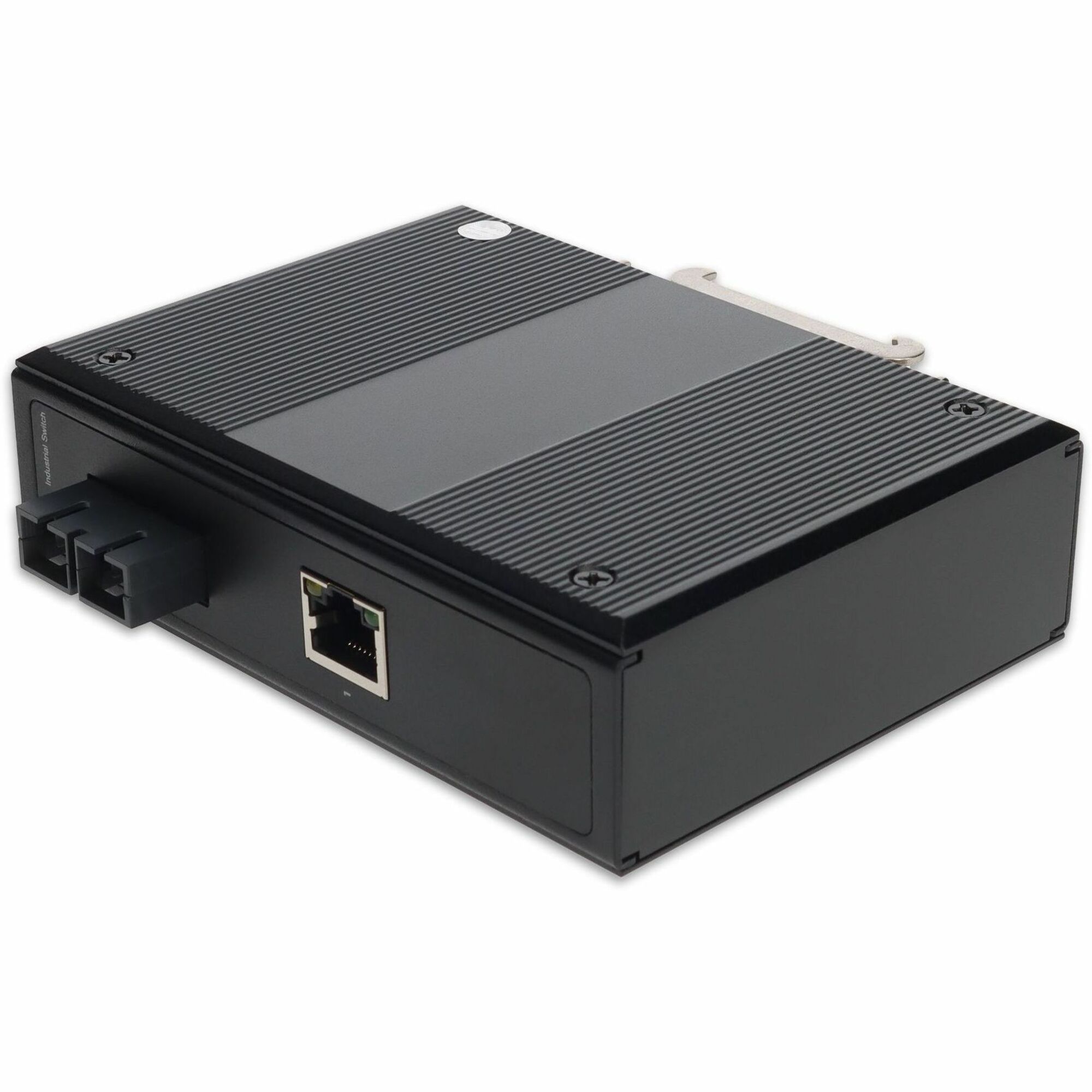

100MBS 1 RJ-45 TO 1 SC PORT INDUSTRIAL POE MEDIA CONVERTER

Name: 100MBS 1 RJ-45 TO 1 SC PORT INDUSTRIAL POE MEDIA CONVERTER
Brand: ADDON
SKU: 380J32
Price: 103.45 USD
Availability: InStock

ADDON

PCN#

380J32

MFG#

ADD-IFMCP-LX-SC

$103.45

Extended & Accidental Damage Product Replacement Plan Available Details

2-Year $32.99

1-Year $24.99

Free Shipping

Estimated Shipment:

Product Highlights:

Product Condition: New and Factory Fresh

Shipping Weight: 1 lbs.

AddOn 10/100Base-TX(RJ-45) to 100Base-LX(SC) SMF 1310nm 20km Industrial Media Converter POE (15W)

Tech Specs

Specifications

Manufacturer	AddOn
Manufacturer Part Number	ADD-IFMCP-LX-SC
Manufacturer Website Address	http://www.addoncomputer.com
Brand Name	AddOn
Product Name	Transceiver/Media Converter
Marketing Information	This is an industrial media converter fiber switch that converts 10/100Base-TX(RJ-45) to 100Base-LX via 1310nm single-mode fiber (SMF) SC, with a maximum distance reach of 20km. This provides a cost effective conversion from 10/100Base-TX(RJ-45) to 100Base-FX fiber, while extending the network reach beyond the 100m reach limitation of copper. The PoE(PSE) ethernet switch is a Power Sourcing Equipment (PSE) which combines data transfered over cable with 48V(typical) power supply, providing power to IEEE802.3af powered device (PD) over CAT5e UTP cable (cable length up to 100 meters/330 feet). The four UTP RJ-45 ports are organized to be PoE output port, and each PoE port can output up to 15.4 watts (DC 48V/.35A) power into CAT5e twisted-pair cable.This industrial grade product includes a terminal block and does not come with a power plug. Our media converters and network interface cards are 100% compliant for all of our networking needs. Now you have a cost effective solution to your network upgrade needs.
Packaged Quantity	1
Product Type	Transceiver/Media Converter

Interfaces/Ports

Media & Performance

Media Type Supported	Twisted Pair Optical Fiber
Fiber Mode Supported	Single-mode
Fiber Optic Cable Wavelength	1310 nm
Maximum Data Transfer Rate	100 Mbit/s
Maximum Distance Supported	20 km

Network & Communication

Ethernet Technology	Fast Ethernet
Network Technology	10/100Base-TX 100Base-LX

Power Description

Physical Characteristics

Miscellaneous

Application/Usage	Industrial
Additional Information	Management Type: Unmanaged IEEE Standard: 802.3af
Compatibility	Compatible OEM: Industry Standard
Country of Origin	China
TAA Compliant	No
