10IN ANDROID TABLET MEDICAL 10Q/4G/64G/A10/WIFI/BCR/MEDICAL

Name: 10IN ANDROID TABLET MEDICAL 10Q/4G/64G/A10/WIFI/BCR/MEDICAL
Brand: ADVANTECH
SKU: SG4103
Price: 1341.98 USD
Availability: InStock

ADVANTECH

PCN#

SG4103

MFG#

AIM-78H-200B00

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$1,341.98

Extended & Accidental Damage Protection Plans Available Details

3-Year $143.99

2-Year $107.99

Free Shipping

Estimated Shipment:

Product Highlights:

Kryo 260 Gold Quad
core (4 Core) 2.20 GHz + Kryo 260 Silver Quad
core (4 Core) 1.80 GHz
Upto 2 TB Memory Card Supported Capacity
microSD Supported
380 Nit
1920 x 1200
8 Megapixel Front Camera
6 Hours Maximum Battery Run Time

Product Condition: New and Factory Fresh

Shipping Weight: 2 lbs.

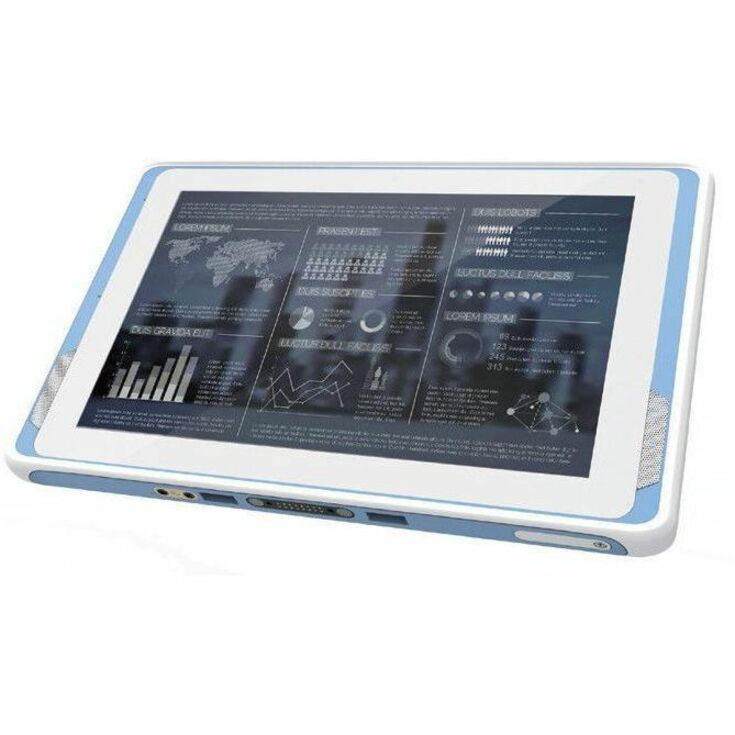

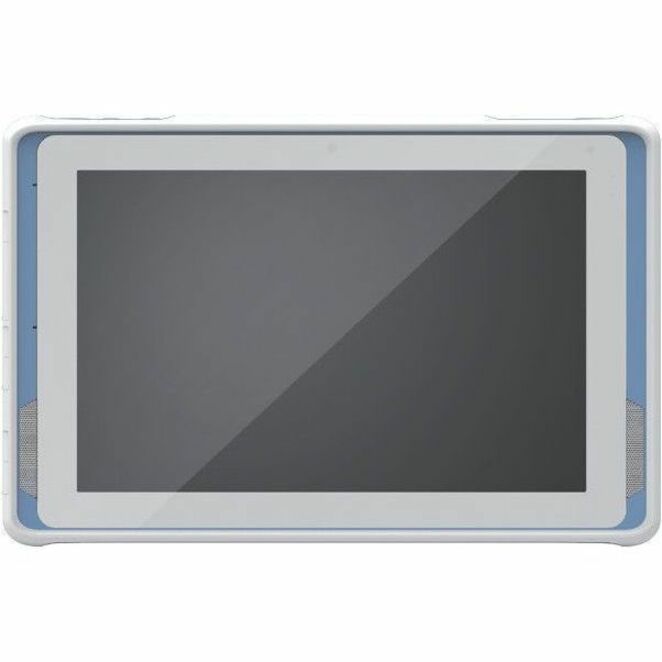

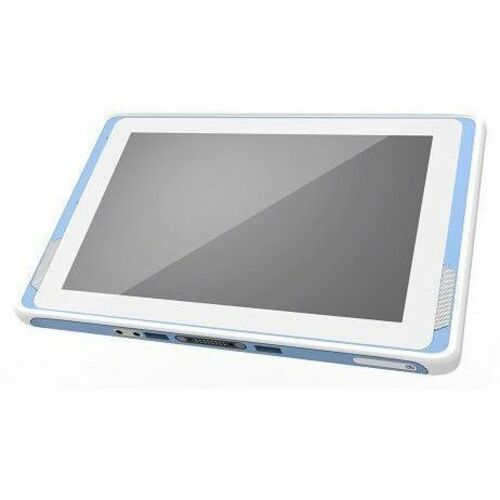

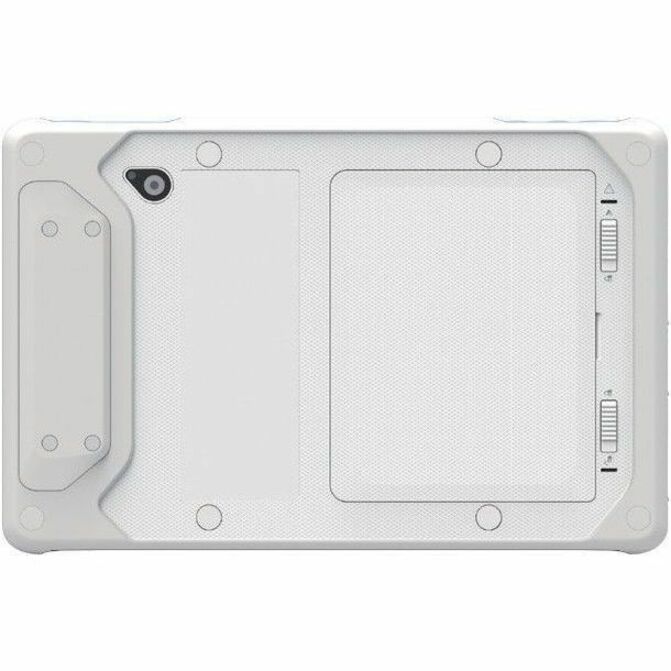

Advantech AIM-78H Tablet - 10.1" WUXGA - Qualcomm SDA660 Octa-core - 4 GB - 64 GB Storage - Android 10 - White Blue - 1

Overview

Tech Specs

Specifications

Manufacturer	Advantech Co., Ltd
Manufacturer Part Number	AIM-78H-200B00
Manufacturer Website Address	http://www.advantech.com
Brand Name	Advantech
Product Model	AIM-78H
Product Name	AIM-78H Tablet
Marketing Information	The Medical Tablet AIM-78H is Android-based tablet computer designed for healthcare applications; features the slim enclosure with antimicrobial property and the integration of a brilliant 10.1" capacitive touch screen supporting both glove and stylus mode for multi-usability in healthcare environment. With the built-in high resolution camera and stable wireless communication , the AIM-78H is a Telehealth-Capable device acting as an effective tool to monitor, record and retrieve patient information while inward and outdoor healthcare service. Moreover, AIM-78H is equipped with Advantech's DeviceOn/iService software, which is a next-generation unified device management solution based on the WISE-DeviceOn platform. With support for batch operations and multi-device control, DeviceOn/iService enables easy device configuration and deployment for convenient remote device management.
Packaged Quantity	1
Product Type	Tablet

Processor

Combined Processor Core	Octa-core
Processor Manufacturer	Qualcomm
Processor Type	Kryo 260 Gold
Processor Speed	2.20 GHz
Processor Core	Quad-core (4 Core)
2nd Processor Manufacturer	Qualcomm
2nd Processor Type	Kryo 260 Silver
2nd Processor Speed	1.80 GHz
2nd Processor Core	Quad-core (4 Core)

Chipset

Chipset Manufacturer	Qualcomm
Chipset Model	SDA660

Memory

Standard Memory	4 GB
Memory Technology	LPDDR4X
Memory Card Supported	microSD
Memory Card Supported Capacity	2 TB

Storage

Flash Memory Capacity

64 GB

Display & Graphics

Screen Size	10.1"
Display Screen Type	LCD
Screen Mode	WUXGA
Screen Resolution	1920 x 1200
Brightness	380 Nit
Graphics Controller Manufacturer	Qualcomm
Graphics Memory Technology	LPDDR4X
Graphics Memory Accessibility	Shared

Network & Communication

WWAN Supported	No
Wireless Connectivity Technology	Wi-Fi
Cellular Phone Capability	No
GPS	No
Wireless LAN	Yes
Wireless LAN Standard	IEEE 802.11a/b/g/n/ac/r/k/v
Bluetooth	Yes
Bluetooth Standard	Bluetooth 5.0
Near Field Communication	Yes

Interfaces/Ports

USB Type-C	Yes
USB Type-C Detail	1 x USB3.1 Type C supporting data transmission only
Number of USB 3.1 Type-C Ports	1

Built-in Devices

Sensor Type	Ambient Light Sensor eCompass G-sensor Gyroscope
Front Camera	Yes
Front Camera Resolution	8 Megapixel
Rear Camera	Yes
Rear Camera Resolution	13 Megapixel
Focus Modes	Fixed Focus Auto-focus

Operating System

Operating System Platform	Android
Operating System	Android 10

Battery Information

Battery Capacity	2400 mAh
Maximum Battery Run Time	6 Hours

Power Description

Power Source

Battery
AC Adapter

Physical Characteristics

Color Family	Blue
Product Color	White Blue
Form Factor	Slate
Height	7.1"
Width	11"
Depth	0.7"
Weight (Approximate)	2.16 lb

Miscellaneous

Package Contents	AIM-78H Tablet 1 x AC/DC Adapter 1 x 2-pin Power Cable (US)
Certifications & Standards	IEC/UL/EN 60601-1 FCC/IC CE NCC/BSMI TELEC/VCCI RCM CCC/SRRC
Features	Barcode Scanner Corning Gorilla Glass Drop Resistant Glove Touch Gorilla Glass 3 Pogo Pin Removable Battery Shock Resistant Vibration Resistant Volume Control Button
Ingress Protection (IP) Rating	IP65
Environmental Compliance	Taiwan Restriction of Hazardous Substances (Taiwan RoHS) Waste Electrical and Electronic Equipment Directive (WEEE) China Restriction of Hazardous Substances (China RoHS)
