LGA1700 ATX Q670E/IBMC/DP/HDMI/2GBE/M.2

by
ADVANTECH
PCN#
Z22032
MFG#
AIMB-788G2-00A1U

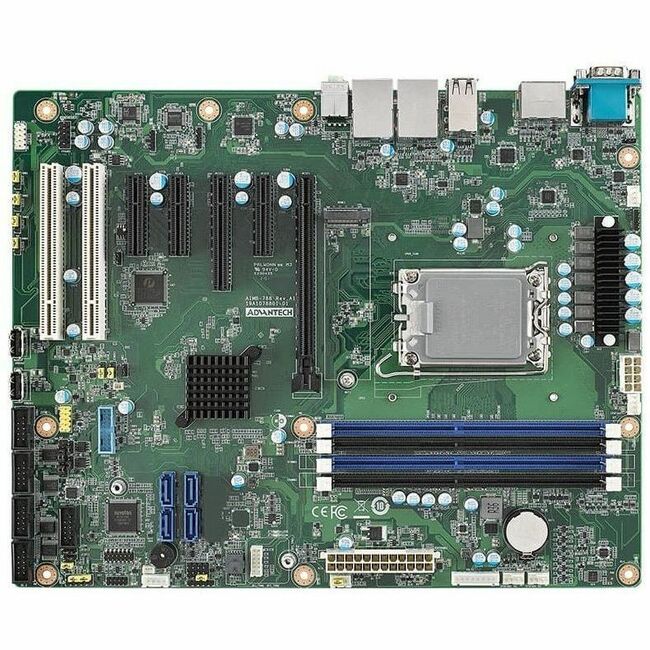

main product photo
fotorama-image
fotorama-image
ADVANTECH Authorized Dealer
$554.63
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • Core i9, Core i7, Core i5, Core i3 Processor Supported
  • 128 GB DDR4 SDRAM Maximum RAM
  • DIMM, UDIMM

Show more

Product Condition: New and Factory Fresh
Shipping Weight: 1 lbs.
Advantech AIMB-788 Desktop Motherboard - Intel Q670E Chipset - Socket LGA-1700 - ATX
Overview
Tech Specs
Specifications

Manufacturer

Advantech Co., Ltd

Manufacturer Part Number

AIMB-788G2-00A1U

Manufacturer Website Address

http://www.advantech.com

Brand Name

Advantech

Product Model

AIMB-788

Product Name

AIMB-788 Desktop Motherboard

Product Type

Desktop Motherboard
Processor & Chipset

Chipset Manufacturer

Intel

Chipset Model

Q670E

Total Processor Supported

1

Processor Socket

Socket LGA-1700

Processor Generation Supported

  • 13th Gen
  • 12th Gen

Processor Supported

  • Core i9
  • Core i7
  • Core i5
  • Core i3
Memory

Number of Memory Slots

4

Memory Form Factor

  • DIMM
  • UDIMM

Maximum Memory Supported

128 GB

Memory Technology

DDR4 SDRAM

Memory Speed Supported

3200 MHz
I/O Controller

Controller Type

Serial ATA/600

RAID Supported

Yes

RAID Levels

  • 0
  • 1
  • 5
  • 10
Video

Onboard Video

CPU Dependent Video

Graphics Controller Model

UHD Graphics
Network & Communication

Gigabit Ethernet

Yes
I/O Expansions

Total Number of Expansion Slots

7

PCI Express Standard

  • PCI Express 4.0
  • PCI Express 3.0

Total Number of PCI Express Slots

7

Number of PCI Express x4 Slots

3

Number of PCI Express x8 Slots

1

Number of PCI Express x16 Slots

1
Interfaces/Ports

Total Number of USB Ports

8

Number of USB 2.0 Ports

4

Number of USB 3.2 Gen 1 Ports

2

VGA

Yes

HDMI

Yes

DisplayPort

Yes

Number of Network (RJ-45) Ports

2
Onboard Interfaces

Number of SATA Interfaces

4

Number of M.2 Interfaces

1

Total Number of Onboard USB Ports

6

Number of Onboard USB 2.0 Ports

2
Physical Characteristics

Form Factor

ATX

Width

12"

Depth

9.6"
Miscellaneous

Package Contents

  • AIMB-788 Desktop Motherboard
  • 2 x SATA data cable
  • 1 x I/O port bracket (for 2U chassis or higher)
  • 1 x Startup manual

Environmental Compliance

  • China Restriction of Hazardous Substances (China RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
