4-CH TRIGGER / 4-CH LATCH ETHERCAT SUBDE

Introduction

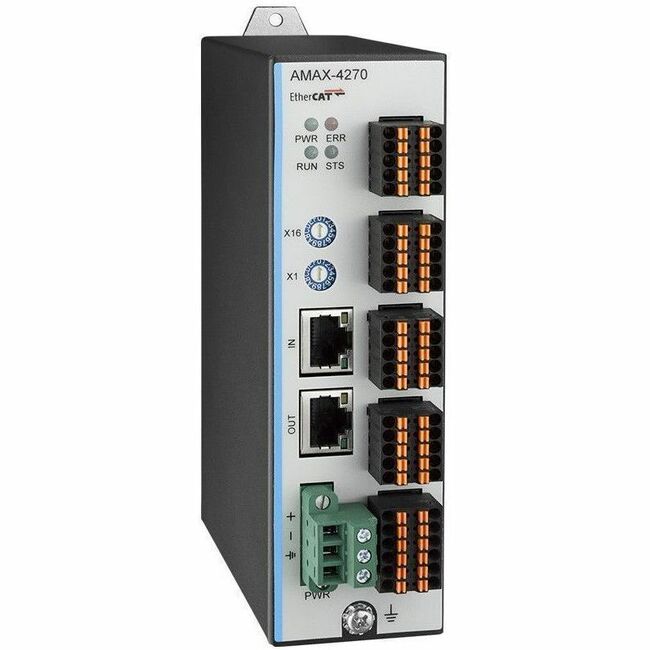

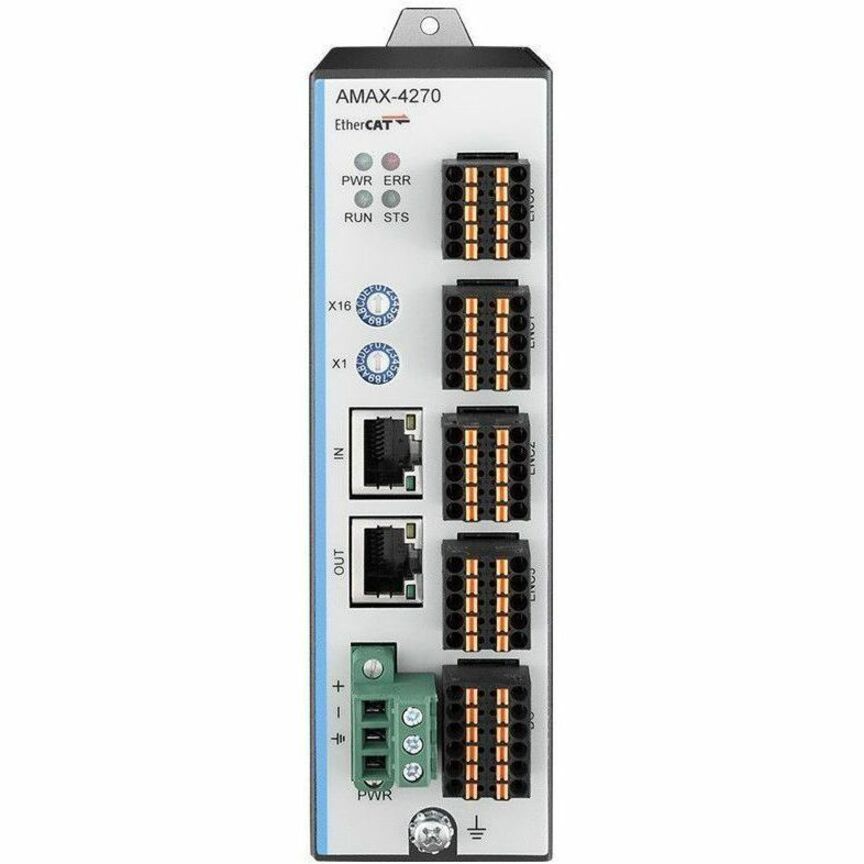

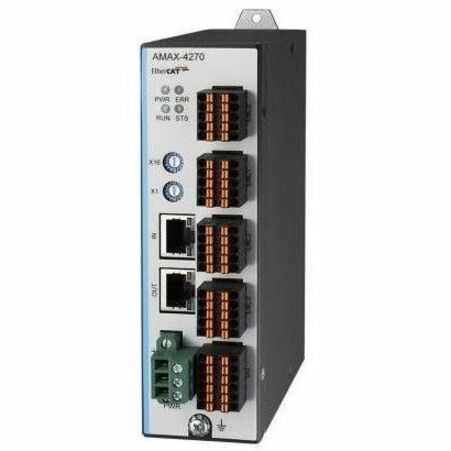

AMAX-4270 is the EtherCAT subDevice with 4-channel high speed trigger and latch function. It provides 32-bit 4-channel counter/encoder for incremental encoders, which supports

CW/CCW, Pulse/Direction and A/B mode. The trigger output supports sink, source and TTL type with 10kHz frequency, providing trigger delay time function for each trigger output

channel and 1D, 2D position compare. AMAX-4270 has 4-channel latch input with 10kHz for latching encoder value.

AMAX-4270 features high speed trigger and latch function that can help users to achieve the AOI, glue dispensing, measurement, and storage assembly applications.
