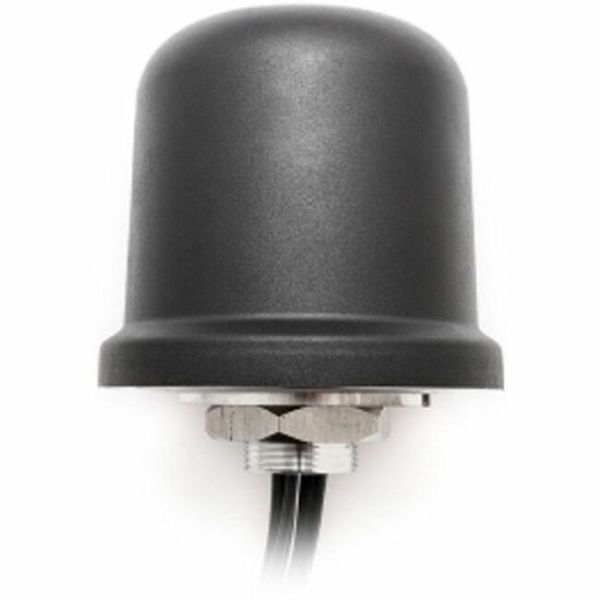

Advantech Antenna

by
ADVANTECH
PCN#
07FC09
MFG#
BB-2J7041BGFA-300
main product photo
fotorama-image
ADVANTECH Authorized Dealer
$237.89
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • 1710 MHz to 2170 MHz
  • 3 dB
  • 3.6 dBi

Show more

Product Condition: New and Factory Fresh
Shipping Weight: 2 lbs.
Advantech Antenna
Overview
Tech Specs
Specifications

Manufacturer

Advantech Co., Ltd

Manufacturer Part Number

BB2J7041BGFA300

Manufacturer Website Address

http://www.advantech.com

Brand Name

Advantech

Product Name

Antenna

Marketing Information

Compact heavy duty antenna designed for 4G LTE and GNSS suitable for wide range of applications within industry. Antenna is made with specific anti-rotation mounting system. Housing of the antenna is certified for standards of IP67 for water resistance, IK09 for high impact resistance and IP69K standard for high pressure and hot water ingress.

Packaged Quantity

1

Product Type

Antenna
Technical Information

Directivity

Omni-directional

Operating Frequency Range

1710 MHz to 2170 MHz

Antenna Gain

3 dB

Antenna Gain (Isotropic)

3.6 dBi

Antenna Type

Dome

Voltage Standing Wave Ratio (VSWR)

1.6:1 1.6:1
Interfaces/Ports

Connector Type

SMA
Physical Characteristics

Product Color

Black/White

Height

3.54"

Diameter

3.78"

Form Factor

Screw Mount

Weight (Approximate)

1.76 lb
Miscellaneous

Application/Usage

  • GPS
  • GLONASS
  • Cellular Network

Environmentally Friendly

Yes
