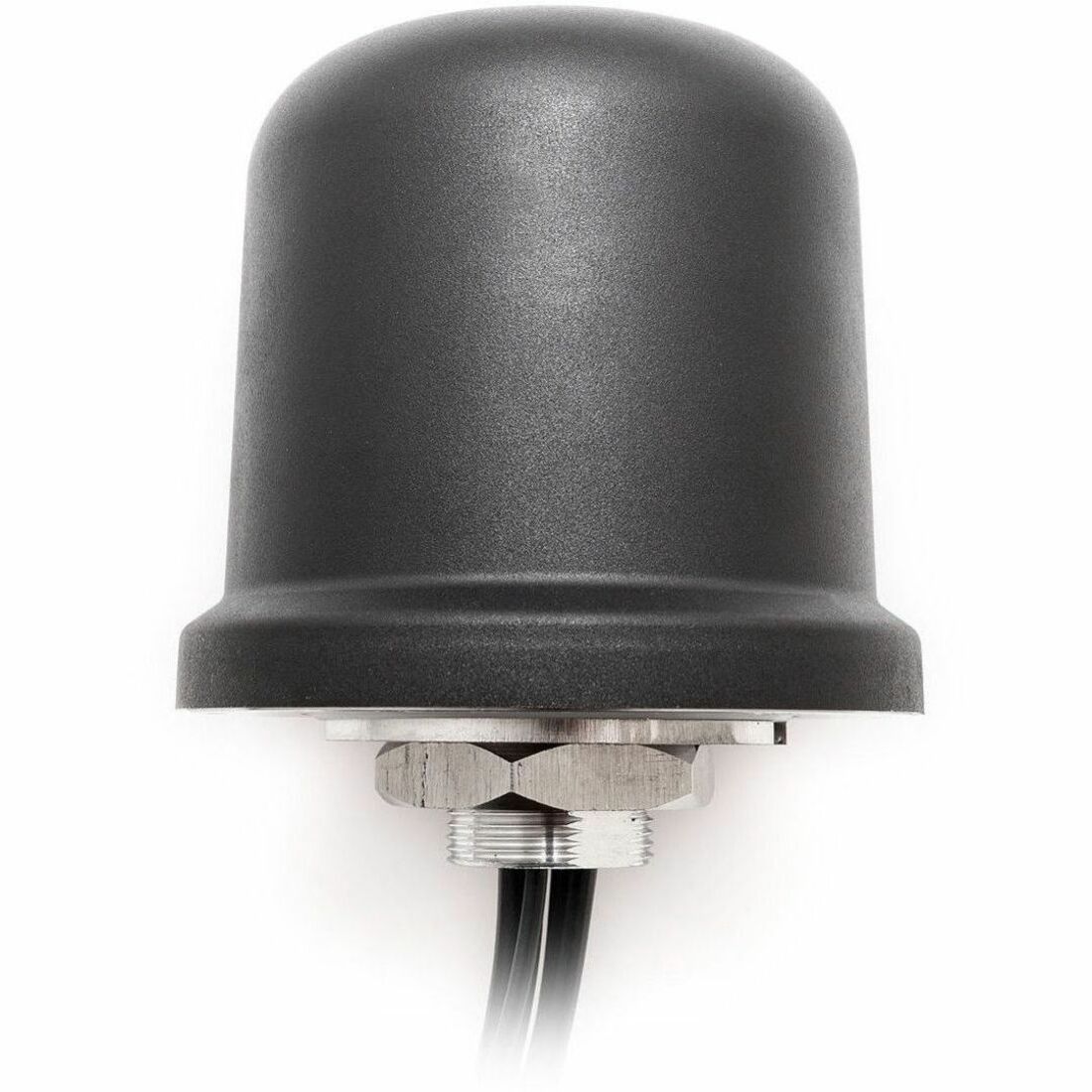

ANT 5IN1 LTE MIMO WIFI MIMO GPS DOME SCR

Name: ANT 5IN1 LTE MIMO WIFI MIMO GPS DOME SCR
Brand: ADVANTECH
SKU: Z22180
Price: 279.97 USD
Availability: InStock

ADVANTECH

PCN#

Z22180

MFG#

BB-2J7050BGFA-150

$279.97

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

698MHz to 960MHz, 1710MHz to 2170MHz, 2500MHz to 2700MHz, 2410MHz to 2490MHz, 4920MHz to 5925MHz
3 dB
5.6 dBi
Cellular Network, Wireless Data Network, Industrial, GPS, GLONASSScrew Mount
Omni
directional
SMA, R
SMA Connector

Product Condition: New and Factory Fresh

Shipping Weight: 1 lbs.

Advantech Antenna

Tech Specs

Specifications

Manufacturer	Advantech Co., Ltd
Manufacturer Part Number	BB-2J7050BGFA-150
Manufacturer Website Address	http://www.advantech.com
Brand Name	Advantech
Product Name	Antenna
Marketing Information	Compact heavy duty antenna designed for 4G LTE, 2.4/5.0 GHz ISM and GNSS suitable for wide range of applications within industry. Antenna is made with specific anti-rotation mounting system. Housing of the antenna is certified for standards of IP67 for water resistance, IK09 for high impact resistance and IP69K standard for high pressure and hot water ingress.
Product Type	Antenna

Technical Information

Directivity	Omni-directional
Operating Frequency Range	698MHz to 960MHz 1710MHz to 2170MHz 2500MHz to 2700MHz 2410MHz to 2490MHz 4920MHz to 5925MHz
Antenna Gain	3 dB
Antenna Gain (Isotropic)	5.6 dBi
Antenna Type	Dome
Voltage Standing Wave Ratio (VSWR)	2.1:1

Interfaces/Ports

Connector Type

Physical Characteristics

Form Factor

Screw Mount

Miscellaneous

Application/Usage	Cellular Network Wireless Data Network Industrial GPS GLONASS
Certifications & Standards	IP67 IP69 IK09
Environmental Compliance	Restriction of Hazardous Substances (RoHS) Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
