SMARTSTART EMEA LTE CAT4 1XETH 1XRS232 N

Name: SMARTSTART EMEA LTE CAT4 1XETH 1XRS232 N
Brand: ADVANTECH
SKU: Z22068
Price: 440.42 USD
Availability: InStock

ADVANTECH

PCN#

Z22068

MFG#

BB-SL30500110

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$440.42

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

LTE 800, LTE 900, LTE 1800, LTE 2100, LTE 2600, LTE 2300, LTE 2500, UMTS 900, UMTS 2100, LTE 700
LTE, LTE Cat 4, HSPA+, UMTS, EDGE, GPRS
18.75 MB/s Wireless Speed
Fast Ethernet
VPN Supported
DIN Rail Mountable, Wall Mountable

Product Condition: New and Factory Fresh

Shipping Weight: 1 lbs.

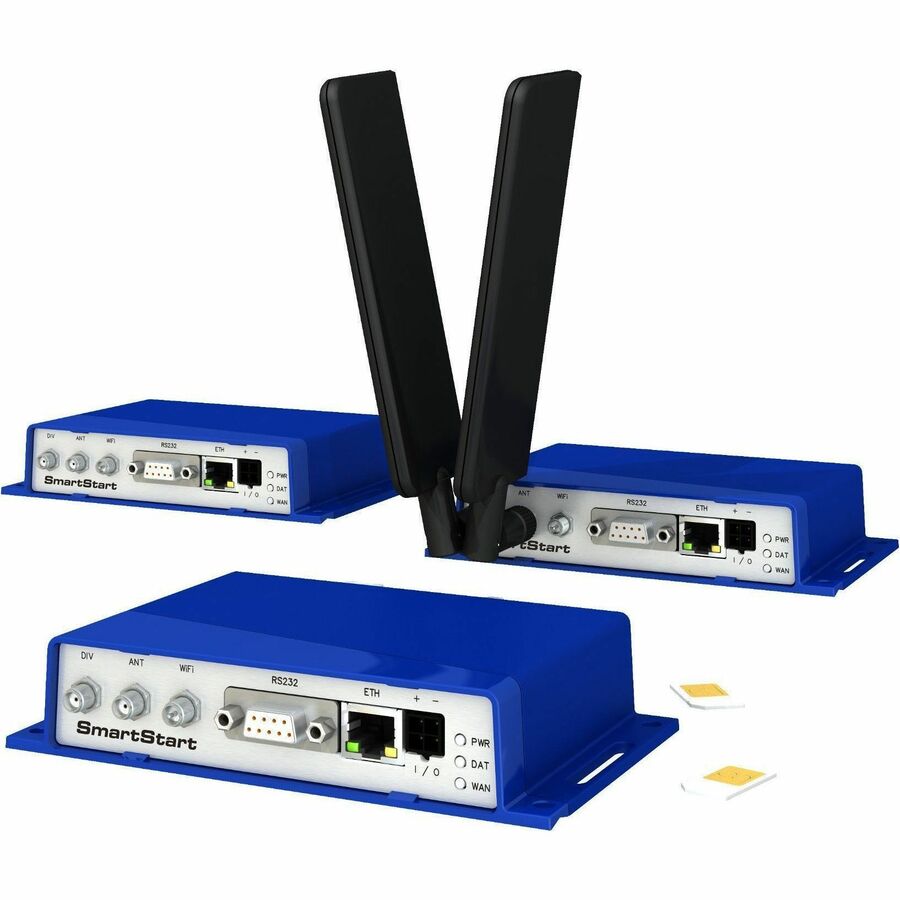

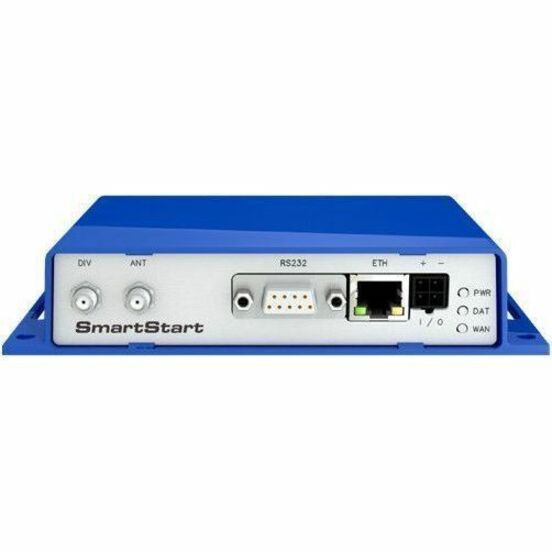

Advantech SmartStart SL305 2 SIM Cellular, Ethernet Modem/Wireless Router

Overview

Tech Specs

Specifications

Manufacturer	Advantech Co., Ltd
Manufacturer Part Number	BB-SL30500110
Manufacturer Website Address	http://www.advantech.com
Brand Name	Advantech
Product Line	SmartStart
Product Model	SL305
Product Name	SmartStart SL305 Modem/Wireless Router
Marketing Information	The SmartStart SL305 is the latest version of cellular router from SmartStart family routers. The router uses the newest Cat.4 LTE services. SL305 models from the SmartStart line is a cellular router equipped with an extended eMMC storage with 1.3 GB assigned for software customization. The new size of internal memory provides ample storage for custom scripts, software applications, and a wide variety of protocols using Router Apps, Node-RED or Docker. Due to the high speed of data transfer up to 150 Mbps (download) and up to 50 Mbs (upload) is an ideal solution for the wireless connection of traffic and security camera systems, individual computers, LAN networks, automatic teller machines (ATM), and other self-service terminals. SmartStart SL305 is equipped with a powerful microprocessor ARM Cortex-A8 at 1000 MHz. As a standard, SL305 is equipped with one Ethernet 10/100 Mbps port, with one RS232 a port using 9 wires (DB9 Female), with one digital input and one digital output. This router contains two SIMs readers, which are placed on the rear side of the device. The device is placed in an original robust plastic case. Customers can use wall mounting or use the supplied DIN holder. The router can be easily installed, monitored, maintained, and VPN-enabled using the cloud-based WebAccess/DMP for centralized management.
Product Type	Modem/Wireless Router

Technical Information

Processor Type	Cortex A8
Processor Speed	1 GHz
Standard Memory	512 MB
Maximum Upload Speed	6.25 MB/s

Wireless Specifications

Broadband Transmission Technology	Cellular Ethernet
Cellular Network Supported	LTE 800 LTE 900 LTE 1800 LTE 2100 LTE 2600 LTE 2300 LTE 2500 UMTS 900 UMTS 2100 LTE 700
Cellular Data Connectivity Technology	LTE LTE Cat 4 HSPA+ UMTS EDGE GPRS
Total Wireless Transmission Speed	18.75 MB/s
Encryption Standard	DES 3DES MD5 SHA AES RSA 4096-bit
Firewall Type	NAT PAT

Interfaces/Ports

Total Number of Network Ports

Network & Communication

Ethernet Technology	Fast Ethernet
VPN Supported	Yes
Multi-SIM Supported	Yes
Number of SIM Card Supported	2
SIM Size Supported	Mini

Storage

Flash Memory Capacity	4 GB
Storage Media	eMMC

Physical Characteristics

Product Material	Plastic
Form Factor	DIN Rail Mountable Wall Mountable
Height	1.2"
Width	5.9"
Depth	3.4"
Weight (Approximate)	7.05 oz

Miscellaneous

Package Contents	SmartStart SL305 Modem/Wireless Router Power Cable 4-wire, 1.35m DIN Clip
Certifications & Standards	EN 301 511 EN 301 908-1 EN 301 908-2 EN 301 908-13 EN 300 328 EN 301 489-1 EN 301 489-17 EN 301 489-52 EN 61000-6-2 EN 61000-4-2 EN 61000-4-3 EN 61000-4-4 EN 61000-4-5 EN 61000-4-6 EN 62368-1 EN 18031-1 E-mark CE UKCA EN 60068-2-64 EN 60068-2-27 EN 60068-2-1 EN 60529 EN 60068-2-2 EN 60068-2-14 EN 60068-2-30
Environmental Compliance	Restriction of Hazardous Substances (RoHS) 3 Waste Electrical and Electronic Equipment Directive (WEEE) Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) Restriction of Hazardous Substances (RoHS)
