LAN ROUTER 5XETH PLASTIC ACCEU

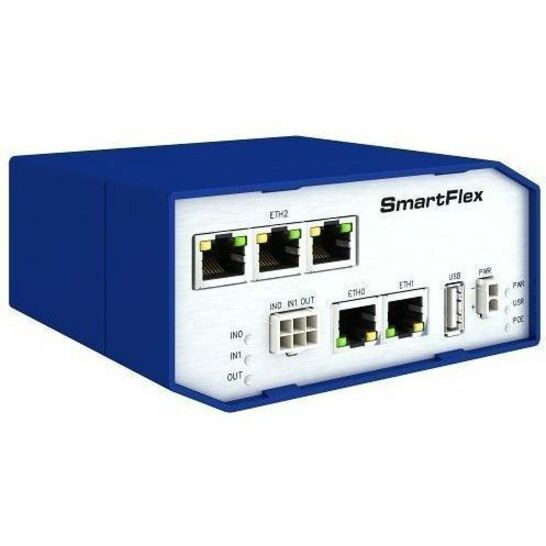

The SmartFlex SR300 router provides secure Internet connectivity for devices and LANs via the WAN networks. It can be used to provide automatic wireless failover for wired networks, wireless connectivity for devices in remote locations where cable connections are impractical, and wireless connectivity for mobile assets. With upload speeds of up to 100 Mbit/s and download speeds of up to 100 Mbps, the SmartFlex SR300 provides ample bandwidth, even for applications that require video.

The SmartFlex SR300 places intelligence at the network edge with an extremely powerful Cortex A8 CPU at 1GHz, 256 MB flash memory, 512 MB RAM and 128kB M-RAM, providing full support for LAN speeds and applications. A secure Web interface allows users to configure and manage SmartFlex SR300 from remote locations. The router can also upgrade its configuration and firmware from the operator's central server, allowing for simultaneous mass reconfiguration of every router on the network. Users may insert Linux scripts and they can create multiple configurations for the same router. Users may switch from one configuration to another at any time.

The standard configuration includes 5 Ethernet ports with 3 independent LANs/ IP addresses. The standard configuration also includes 1 USB host port, 1 microSD card holder, 2 binary inputs(I/O) . An optional built-in Wi-Fi module is also available, with industrial grade operating temperature ranges from -40 to +75 °C.

The SmartFlex SR300 supports real time data encryption and the creation of VPN tunnels using IPsec, OpenVPN and L2TP. It supports DHCP, NAT, NAT-T, DynDNS, NTP, VRRP, and numerous other functions, as well as additional software like SmartCluster VPN Server and R-SeeNet. other functions, as well as additional software like SmartCluster VPN Server and R-SeeNet.

• NAT
• PAT

• SmartFlex SR300 Wireless Router
• EU - Power Supply Power Cord
• SmartFlex Power Supply, 12V/1A
• SmartFlex Power Supply, 48V/1.35A (Power cord Required)
• PS Cable 2-wire, MO 2 pins, 3m, v3 routers
• IO Cable 6-wire, 3m, v3 Routers

• ETSI EN 300 328
• ETSI EN 301 893
• ETSI EN 301 489-1
• ETSI EN 301 489-17
• IEC 62368-1 (UL E487720)
• EN 62311
• UL C1D2
• UL E486108
• CE
• UKCA
• FCC/IC
• UL C1D2/Atex
• RCM
