5XETH USB 2XBI/BO SD WIFI POE PSE ACC

Name: 5XETH USB 2XBI/BO SD WIFI POE PSE ACC
Brand: ADVANTECH
SKU: Z22105
Price: 590.73 USD
Availability: InStock

ADVANTECH

PCN#

Z22105

MFG#

BB-SR30018110

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$590.73

Extended & Accidental Damage Protection Plans Available Details

2-Year $66.99

3-Year $89.99

Free Shipping

Estimated Shipment:

Product Highlights:

Dual Band
2.40 GHz ISM Band
5 GHz UNII Band
4 x Network Port
1 x Broadband Port
USB
PoE Ports
Fast Ethernet
VPN Supported
DIN Rail Mountable

Product Condition: New and Factory Fresh

Shipping Weight: 1 lbs.

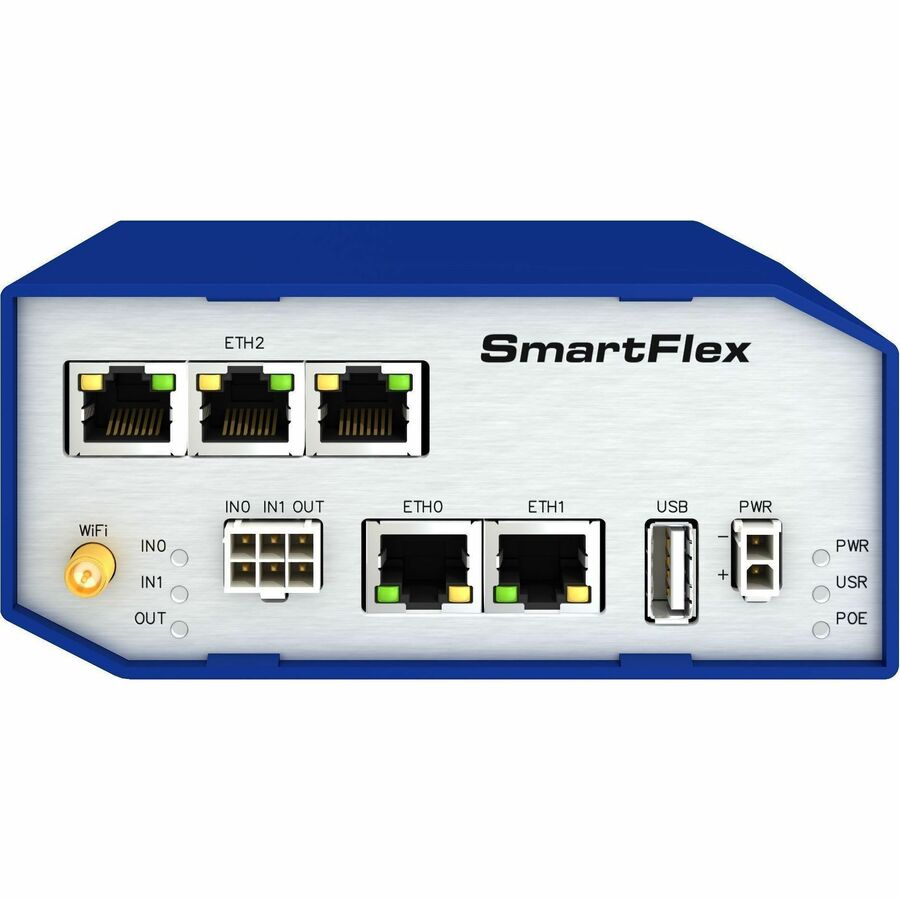

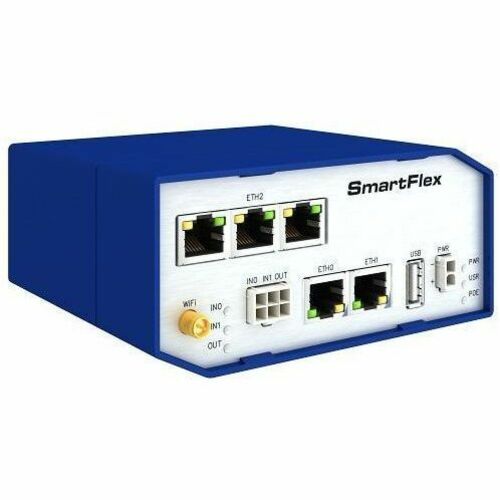

Advantech SmartFlex SR300 Wi-Fi 4 IEEE 802.11a/b/g/n Ethernet Wireless Router

Overview

Tech Specs

Specifications

Manufacturer	Advantech Co., Ltd
Manufacturer Part Number	BB-SR30018110
Manufacturer Website Address	http://www.advantech.com
Brand Name	Advantech
Product Line	SmartFlex
Product Model	SR300
Product Name	SmartFlex SR300 Wireless Router
Marketing Information	The SmartFlex SR300 router provides secure Internet connectivity for devices and LANs via the WAN networks. It can be used to provide automatic wireless failover for wired networks, wireless connectivity for devices in remote locations where cable connections are impractical, and wireless connectivity for mobile assets. With upload speeds of up to 100 Mbit/s and download speeds of up to 100 Mbps, the SmartFlex SR300 provides ample bandwidth, even for applications that require video. The SmartFlex SR300 places intelligence at the network edge with an extremely powerful Cortex A8 CPU at 1GHz, 256 MB flash memory, 512 MB RAM and 128kB M-RAM, providing full support for LAN speeds and applications. A secure Web interface allows users to configure and manage SmartFlex SR300 from remote locations. The router can also upgrade its configuration and firmware from the operator's central server, allowing for simultaneous mass reconfiguration of every router on the network. Users may insert Linux scripts and they can create multiple configurations for the same router. Users may switch from one configuration to another at any time. The standard configuration includes 5 Ethernet ports with 3 independent LANs/ IP addresses. The standard configuration also includes 1 USB host port, 1 microSD card holder, 2 binary inputs(I/O) . An optional built-in Wi-Fi module is also available, with industrial grade operating temperature ranges from -40 to +75 °C. The SmartFlex SR300 supports real time data encryption and the creation of VPN tunnels using IPsec, OpenVPN and L2TP. It supports DHCP, NAT, NAT-T, DynDNS, NTP, VRRP, and numerous other functions, as well as additional software like SmartCluster VPN Server and R-SeeNet. other functions, as well as additional software like SmartCluster VPN Server and R-SeeNet.
Product Type	Wireless Router

Technical Information

Wi-Fi Generation	Wi-Fi 4
Network Band	Dual Band
Processor Type	Cortex A8
Processor Speed	1 GHz
Standard Memory	512 MB
Maximum Upload Speed	12.50 MB/s

Wireless Specifications

Broadband Transmission Technology	Ethernet
Wireless LAN Standard	IEEE 802.11a/b/g/n
ISM Band	Yes
UNII Band	Yes
ISM Maximum Frequency	2.40 GHz
UNII Maximum Frequency	5 GHz
Encryption Standard	WPA-PSK WPA2-PSK WEP TKIP AES
Firewall Type	NAT PAT

Interfaces/Ports

Total Number of Network Ports	5
Number of Network (RJ-45) Ports	4
USB	Yes
PoE (RJ-45) Port	Yes
Number of Broadband (RJ-45) Ports	1
USB Standard	USB 2.0

Network & Communication

Ethernet Technology	Fast Ethernet
VPN Supported	Yes

Storage

Flash Memory Capacity	256 MB
Storage Media	MicroSD

Physical Characteristics

Product Material	Plastic
Form Factor	DIN Rail Mountable
Height	2.2"
Width	4.9"
Depth	3.8"
Weight (Approximate)	6 oz

Miscellaneous

Package Contents	SmartFlex SR300 Wireless Router Din Holder
Certifications & Standards	ETSI EN 300 328 ETSI EN 301 893 ETSI EN 301 489-1 ETSI EN 301 489-1 ETSI EN 301 489-17 IEC 62368-1 (UL E487720) EN 62311 UL C1D2 Atex UL E486108 RCM UKCA FC IC CE FCC/IC
