KOREA 2XETH 232 485 WIFI PSE METAL NOACC

Name: KOREA 2XETH 232 485 WIFI PSE METAL NOACC
Brand: ADVANTECH
SKU: Z22115
Price: 825.44 USD
Availability: InStock

ADVANTECH

PCN#

Z22115

MFG#

BB-SR30918320-SWH

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$825.44

Extended & Accidental Damage Protection Plans Available Details

2-Year $89.99

3-Year $120.99

Free Shipping

Estimated Shipment:

Product Highlights:

4G
LTE 800, LTE 850, LTE 900, LTE 1800, LTE 2100, LTE 2600, LTE 2300, LTE 2500, HSPA 850, HSPA 900, HSPA 2100, ...
LTE Cat 4, LTE, HSPA, HSPA+, DC
HSPA+, UMTS, EDGE, GPRS
Dual Band
2.40 GHz ISM Band
5 GHz UNII Band
18.75 MB/s Wireless Speed
1 x Network Port
1 x Broadband Port
USB
PoE Ports
Fast Ethernet
VPN Supported
DIN Rail Mountable

Product Condition: New and Factory Fresh

Shipping Weight: 1 lbs.

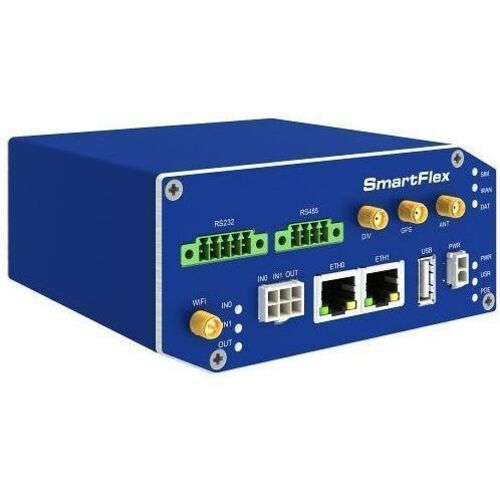

Advantech SmartFlex SR309 Wi-Fi 4 IEEE 802.11a/b/g/n 2 SIM Cellular, Ethernet Modem/Wireless Router

Overview

Tech Specs

Specifications

Manufacturer	Advantech Co., Ltd
Manufacturer Part Number	BB-SR30918320-SWH
Manufacturer Website Address	http://www.advantech.com
Brand Name	Advantech
Product Line	SmartFlex
Product Model	SR309
Product Name	SmartFlex SR309 Modem/Wireless Router
Marketing Information	SmartFlexTM cellular router provides secure Internet connectivity for devices and LANs via the cellular networks. It can provide automatic wireless failover for wired networks, wireless connectivity for devices in remote locations where cable connections are impractical and wireless connectivity for mobile assets. With upload speeds of up to 50 Mbps and download speeds of up to 150 Mbps, SmartFlex provides ample bandwidth, even for applications that require video. Cortex A8 CPU at 1GHz, 256 MB flash memory, 512 MB RAM and 128kB M-RAM, providing full support for LTE (Long Term Evolution) speeds and applications. A secure Web interface allows users to configure and manage SmartFlex from remote locations. The router can also upgrade its configuration and firmware from the operator's central server, allowing for simultaneous mass reconfiguration of every router on the network. Users may insert Linux scripts and can create multiple configurations for the same router and switch from one configuration to another at any time. Modular SmartFlex can be configured for any application. Standard configuration includes 2 Ethernet ports with 2 independent LANs/IP addresses and also includes 1 USB host port, 1 microSD card holder, 2 SIM card holders for automatic failover to an alternate service provider, 2 binary inputs(I/O), 1 binary output (I/O) and onboard GPS. An optional built-in Wi-Fi module is also available, with industrial grade operating temperature ranges from -40 to +75 °C. Further optional boards include: 3x ETH (the router can be configured with up to 5 total Ethernet ports and 3 independent LANs/IP addresses) or RS-232/485 (isolation strength up to 2.5kV). The SmartFlex supports real time data encryption and the creation of VPN tunnels using IPsec, OpenVPN and L2TP. It supports DHCP, NAT, NAT-T, DynDNS, NTP, VRRP, control by SMS, and numerous other functions, as well as additional software like WebAccess/DMP and R-SeeNet.
Product Type	Modem/Wireless Router

Technical Information

Wi-Fi Generation	Wi-Fi 4
Network Band	Dual Band
Processor Type	Cortex A8
Processor Speed	1 GHz
Standard Memory	512 MB
Maximum Upload Speed	6.25 MB/s

Wireless Specifications

Broadband Transmission Technology	Cellular Ethernet
Wireless LAN Standard	IEEE 802.11a/b/g/n
ISM Band	Yes
UNII Band	Yes
ISM Maximum Frequency	2.40 GHz
UNII Maximum Frequency	5 GHz
Cellular Generation	4G
Cellular Network Supported	LTE 800 LTE 850 LTE 900 LTE 1800 LTE 2100 LTE 2600 LTE 2300 LTE 2500 HSPA 850 HSPA 900 HSPA 2100 UMTS 850 UMTS 900 UMTS 2100 TD-SCDMA TD-SCDMA 850 TD-SCDMA 900 TD-SCDMA 2100
Cellular Data Connectivity Technology	LTE Cat 4 LTE HSPA HSPA+ DC-HSPA+ UMTS EDGE GPRS
Total Wireless Transmission Speed	18.75 MB/s
Encryption Standard	WEP TKIP AES WPA-PSK WPA2-PSK
Firewall Type	NAT PAT

Interfaces/Ports

Total Number of Network Ports	2
Number of Network (RJ-45) Ports	1
USB	Yes
PoE (RJ-45) Port	Yes
Number of Broadband (RJ-45) Ports	1
USB Standard	USB 2.0

Network & Communication

Ethernet Technology	Fast Ethernet
VPN Supported	Yes
Multi-SIM Supported	Yes
Number of SIM Card Supported	2
SIM Size Supported	Mini

Storage

Flash Memory Capacity	256 MB
Storage Media	MicroSD

Physical Characteristics

Product Material	Metal
Form Factor	DIN Rail Mountable
Height	2.2"
Width	4.9"
Depth	3.8"
Weight (Approximate)	13.23 oz

Miscellaneous

Package Contents	SmartFlex SR309 Modem/Wireless Router DIN Rail Clip - Metal PS Cable 2-wire, MO 2 Pins, 3m, v3 Routers Quick Start Guide
Certifications & Standards	IC KCC
