24PORT INDUSTRIAL ETHRNET SWTCH 24GE+4G COMBO PORT UNMANAGED SWTCH

Name: 24PORT INDUSTRIAL ETHRNET SWTCH 24GE+4G COMBO PORT UNMANAGED SWTCH
Brand: ADVANTECH
SKU: 940C99
Price: 973.43 USD
Availability: InStock

ADVANTECH

PCN#

940C99

MFG#

EKI-2428G-4CI-BE

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$973.43

Extended & Accidental Damage Protection Plans Available Details

2-Year $89.99

3-Year $120.99

Free Shipping

Estimated Shipment:

Product Highlights:

28 Ports
Gigabit Ethernet
1000Base
X, 10/100/1000Base
TX, 10/100/1000Base
T, 100Base
FX, 1000Base
LX/SX, 1000Base
LHX, 1000Base
XD, 1000Base
ZX, 1000Base
EZX
2 Layer Supported
20 W Power Consumption
Optical Fiber, Twisted Pair
1U
Rack
mountable
5 Year Limited Warranty

Product Condition: New and Factory Fresh

Limited Warranty5 Year

Shipping Weight: 12 lbs.

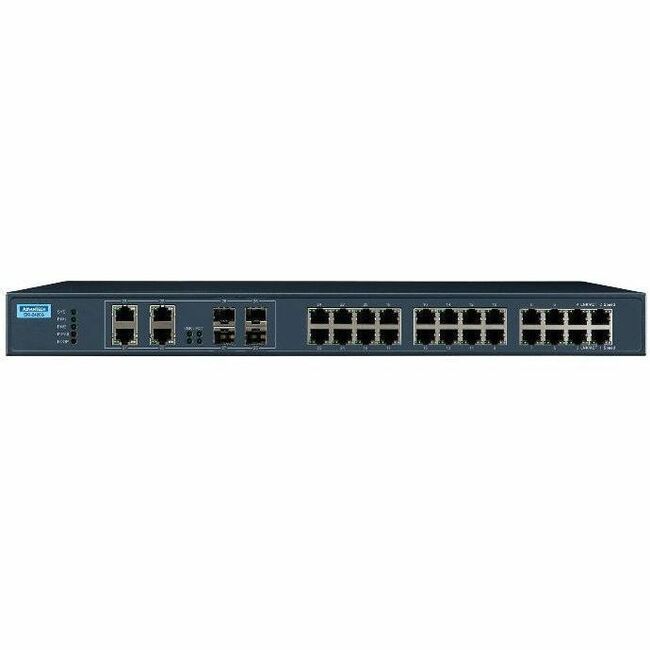

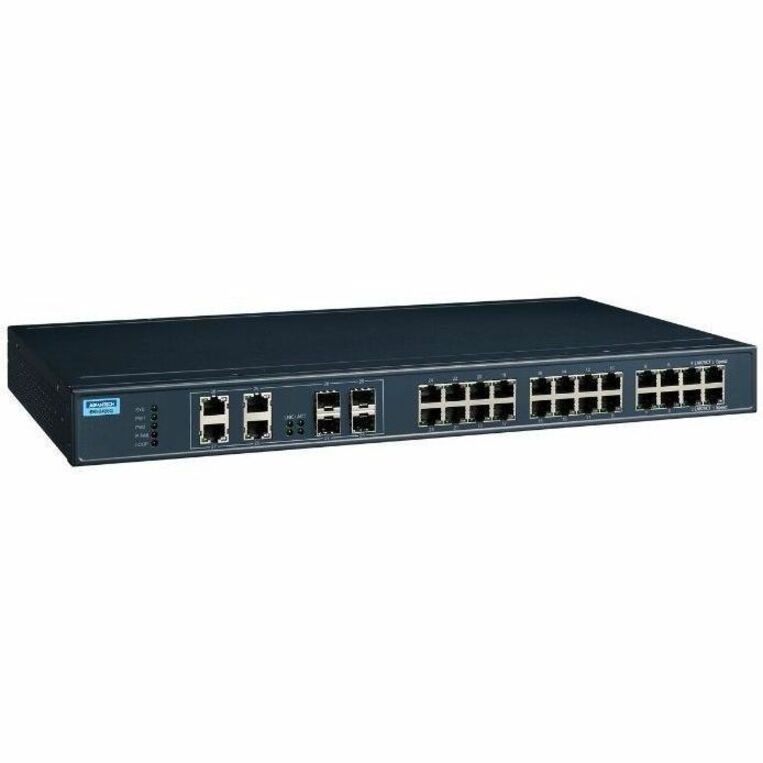

Advantech 24GE+4GE Combo port Unmanaged Industrial Ethernet Switch

Overview

Tech Specs

Specifications

Manufacturer	Advantech Co., Ltd
Manufacturer Part Number	EKI-2428G-4CI-BE
Manufacturer Website Address	http://www.advantech.com
Brand Name	Advantech
Product Model	EKI-2428G-4CI
Product Name	24GE+4GE Combo port Unmanaged Industrial Ethernet Switch
Marketing Information	The EKI-2428G is an industrial-class unmanaged switch with 24 Gigabit ports and 4 Gigabit combo ports. It is designed for rack-mount installation, and can be deployed in demanding industrial environments. It is suitable for edge to core industrial networks. It is highly reliable with -40 ~ 70 °C wide temperature operation.
Product Type	Ethernet Switch

Technical Information

Features

IP30
Auto-negotiation
Reverse Polarity Protection
Overload Current Protection

Interfaces/Ports

Total Number of Network Ports	28
Network (RJ-45)	Yes
Port/Expansion Slot Details	24 x Gigabit Ethernet Network 4 x Gigabit Copper/SFP Combo Ports

Media & Performance

Media Type Supported	Optical Fiber Twisted Pair
Ethernet Technology	Gigabit Ethernet
Network Technology	1000Base-X 10/100/1000Base-TX 10/100/1000Base-T 100Base-FX 1000Base-LX/SX 1000Base-LHX 1000Base-XD 1000Base-ZX 1000Base-EZX
Maximum Data Transfer Rate	128 MB/s

I/O Expansions

Shared SFP Slot

Yes

Network & Communication

Layer Supported	2
Networking Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3z IEEE 802.3ab

Management & Protocols

Manageable

Reliability

MTBF	787940 Hour

Power Description

PoE (RJ-45) Port	No
Input Voltage	12 V DC 48 V DC
Power Source	DC
Power Consumption	20 W
Plug/Connector Type	Terminal Block (4 Wire)

Physical Characteristics

Product Material	Metal
Compatible Rack Unit	1U
Form Factor	Rack-mountable
Height	1.7"
Width	17.2"
Depth	10.2"
Weight (Approximate)	8.38 lb

Miscellaneous

Application/Usage	Network Industrial
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

5 Year
