4FE+1GE UNMANAGED IND. POE SWITCH W/T

Name: 4FE+1GE UNMANAGED IND. POE SWITCH W/T
Brand: ADVANTECH
SKU: Z22422
Price: 150.93 USD
Availability: InStock

ADVANTECH

PCN#

Z22422

MFG#

EKI-2705E-1GPI-AU

$150.93

Extended & Accidental Damage Protection Plans Available Details

2-Year $25.99

3-Year $36.99

Free Shipping

Estimated Shipment:

Product Highlights:

Product Condition: New and Factory Fresh

Limited Warranty5 Year

Shipping Weight: 1 lbs.

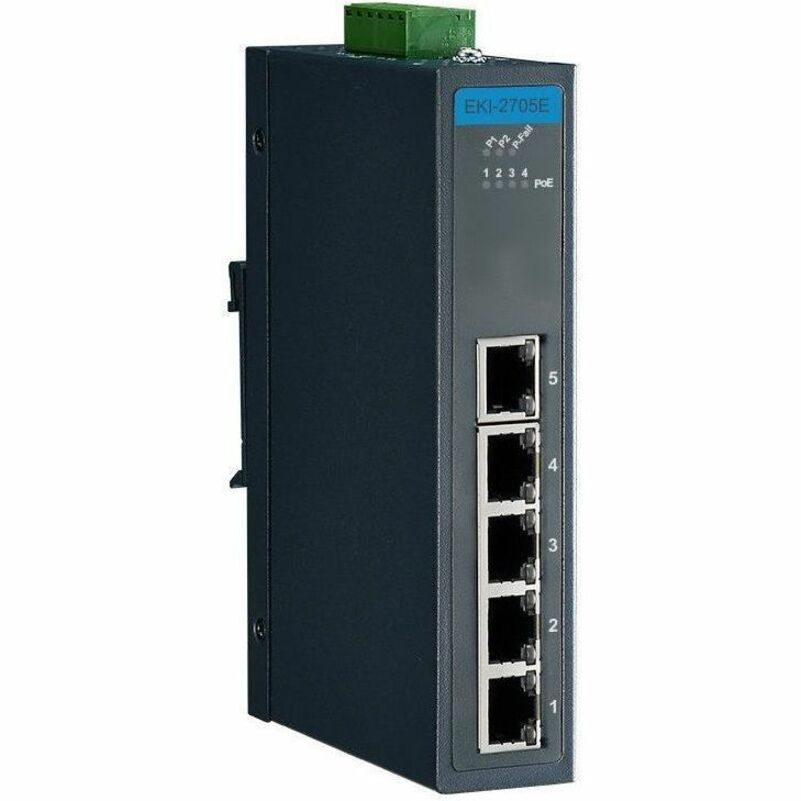

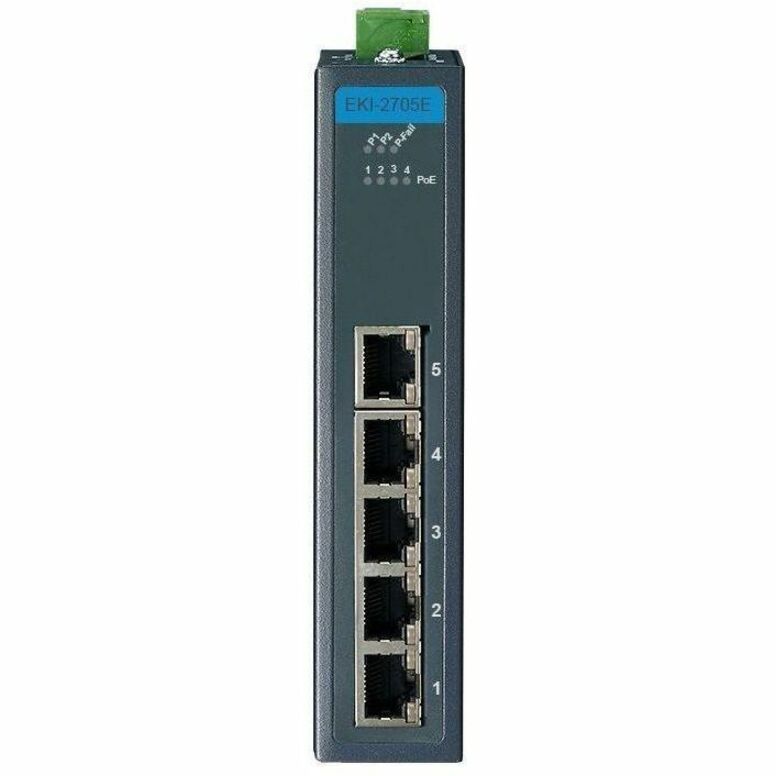

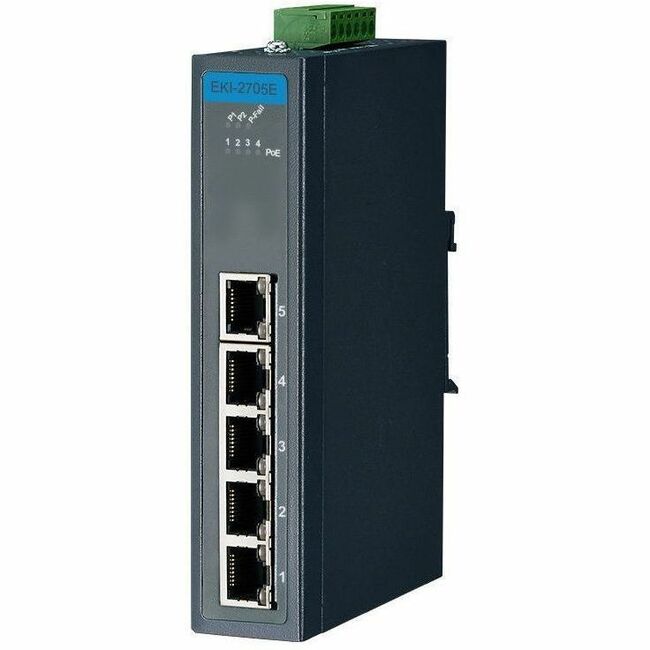

Advantech EKI-2705E-1GPI Ethernet Switch

Tech Specs

Specifications

Manufacturer	Advantech Co., Ltd
Manufacturer Part Number	EKI-2705E-1GPI-AU
Manufacturer Website Address	http://www.advantech.com
Brand Name	Advantech
Product Series	EKI-2705
Product Model	EKI-2705E-1GPI
Product Name	EKI-2705E-1GPI Ethernet Switch
Marketing Information	The EKI-2705 series supports 24 ~ 48VDC redundant power input and is secured with a double protection mechanism: power polarity reverse protection and an overload current fuse. The EKI-2705 series supports up to 4-port IEEE 802.3 af/at PoE /PoE+ ports. Each port of EKI-2705 has two LED indicators to show the link status transmission speed. It also provides a relay output for an event alarm. In the event of a power failure, the built-in LED will activate the alarm to notify, administrators. Engineers can simply verify the hardware status by checking the LED to make troubleshooting easily and fast. EKI-2705 comes with a compact metal housing rated at IP30 to protect against dusty industrial environments.
Product Type	Ethernet Switch

Technical Information

Features

IP30

Interfaces/Ports

Total Number of Network Ports	5
Network (RJ-45)	Yes
Port/Expansion Slot Details	4 x 10/100/BASE-T Gigabit Ethernet PoE+ RJ-45 Network Port 1 x 10/100/1000BASE-T Gigabit Ethernet PoE+ RJ-45 Network Port

Media & Performance

Network & Communication

Layer Supported	2
Networking Standards	IEEE 802.3af IEEE 802.3at IEEE 802.3u IEEE 802.3x IEEE 802.3ab IEEE 802.3z IEEE 802.3

Management & Protocols

Manageable

Reliability

MTBF	1697086 Hour

Power Description

PoE (RJ-45) Port	Yes
PoE Budget	90 W
Input Voltage	24 V DC 48 V DC
Power Source	DC
Redundant Power Supply Supported	Yes
Power Consumption	2 W
Plug/Connector Type	Terminal Block

Physical Characteristics

Product Material	Metal
Form Factor	DIN Rail Mountable Wall Mountable Enclosure Compact
Height	5.5"
Width	1.2"
Depth	3.7"
Weight (Approximate)	15.87 oz

Miscellaneous

Application/Usage	Network Industrial
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

5 Year
