4GE POE + 2G SFP IND. UNMANAGED SWITCH

Name: 4GE POE + 2G SFP IND. UNMANAGED SWITCH
Brand: ADVANTECH
SKU: Z22440
Price: 331.36 USD
Availability: InStock

ADVANTECH

PCN#

Z22440

MFG#

EKI-2706G-2FPI-A

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$331.36

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

4 Ports
Gigabit Ethernet
10/100/1000Base
T, 10/100/1000Base
TX, 100Base
FX, 1000Base
X
2 Layer Supported
2 SFP Slots
4.32 W Power Consumption
120 W PoE Budget
Twisted Pair, Optical Fiber
PoE Ports
DIN Rail Mountable, Wall Mountable
5 Year Limited Warranty

Product Condition: New and Factory Fresh

Limited Warranty5 Year

Shipping Weight: 1 lbs.

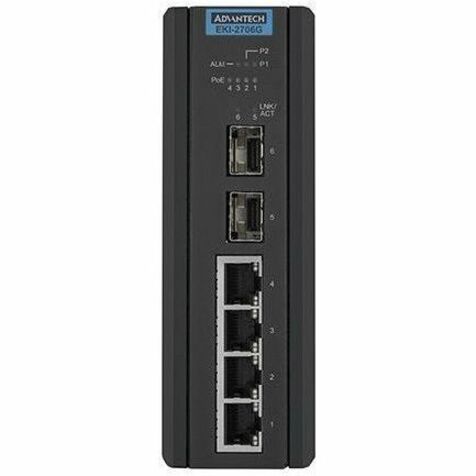

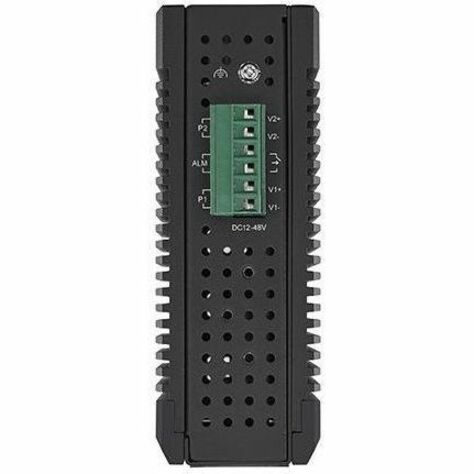

Advantech EKI-2706G-2FPI Ethernet Switch

Overview

Tech Specs

Specifications

Manufacturer	Advantech Co., Ltd
Manufacturer Part Number	EKI-2706G-2FPI-A
Manufacturer Website Address	http://www.advantech.com
Brand Name	Advantech
Product Series	EKI-2706
Product Model	EKI-2706G-2FPI
Product Name	EKI-2706G-2FPI Ethernet Switch
Marketing Information	The EKI-2706G PoE switch is unmanaged Ethernet switches supporting 4 ports PoE+ (Power over Ethernet) and compliant with IEEE 802.3at/af standards. Provides up to 30 watts of power per port and fulfill the power budget of max.120 watts on system with the power input from 12~48VDC. The switch provides a relay output for an event alarm which activates the alarm to notify administrators. Robust design for harsh environment, DIN-rail mounting and fast startup with plug and work. The EKI-2706G supports IEEE 802.3/802.3u/802.3z/802.3ab/802.3x with 10/100/1000 Mbps, full/half-duplex, auto-negotiation and MDI/MDI-X auto-sensing to provide an economical solution for your industrial Ethernet network.
Product Type	Ethernet Switch

Technical Information

Features

IP30
Surge Protection

Interfaces/Ports

Total Number of Network Ports	4
Network (RJ-45)	Yes
Port/Expansion Slot Details	4 x 10/100/1000BASE-T/TX Gigabit Ethernet RJ-45 Network Port 2 x Gigabit Ethernet SFP Expansion Slot

Media & Performance

Media Type Supported	Twisted Pair Optical Fiber
Ethernet Technology	Gigabit Ethernet
Network Technology	10/100/1000Base-T 10/100/1000Base-TX 100Base-FX 1000Base-X
Maximum Data Transfer Rate	128 MB/s

I/O Expansions

Total Number of Expansion Slots	2
Expansion Slot Type	SFP (mini-GBIC)
Number of SFP Slots	2

Network & Communication

Layer Supported	2
Networking Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3z IEEE 802.3ab IEEE 802.3x IEEE 802.3af IEEE 802.3at

Management & Protocols

Manageable

Power Description

PoE (RJ-45) Port	Yes
PoE Budget	120 W
Input Voltage	12 V DC 48 V DC
Power Source	DC
Redundant Power Supply Supported	Yes
Power Consumption	4.32 W
Plug/Connector Type	Terminal Block

Physical Characteristics

Product Material	Metal
Form Factor	DIN Rail Mountable Wall Mountable
Height	5.5"
Width	1.8"
Depth	5.1"
Weight (Approximate)	2.20 lb

Miscellaneous

Application/Usage

Network
Industrial
Outdoor
Traffic

Warranty

Limited Warranty

5 Year
