6G+2G SM MANAGED ETHERNET SWITCH W/ WID

Name: 6G+2G SM MANAGED ETHERNET SWITCH W/ WID
Brand: ADVANTECH
SKU: 9KU907
Price: 1019.03 USD
Availability: InStock

ADVANTECH

PCN#

9KU907

MFG#

EKI-7708G-2SI-AE

$1,019.03

Extended & Accidental Damage Protection Plans Available Details

3-Year $143.99

2-Year $107.99

Free Shipping

Estimated Shipment:

Product Highlights:

Product Condition: New and Factory Fresh

Limited Warranty5 Year

Shipping Weight: 1 lbs.

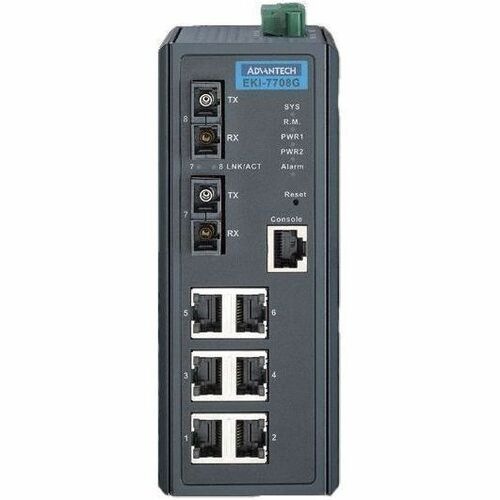

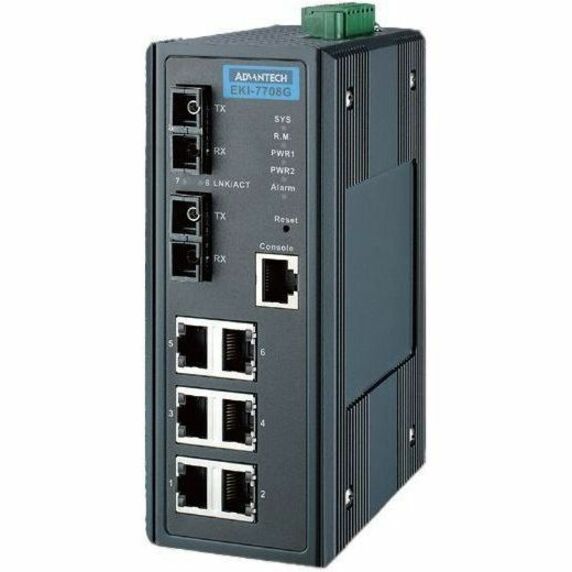

Advantech EKI-7708G-2SI Ethernet Switch

Tech Specs

Specifications

Manufacturer	Advantech Co., Ltd
Manufacturer Part Number	EKI-7708G-2SI-AE
Manufacturer Website Address	http://www.advantech.com
Brand Name	Advantech
Product Model	EKI-7708G-2SI
Product Name	EKI-7708G-2SI Ethernet Switch
Marketing Information	Advantech's EKI-7708G-2MI/2SI are cost effective managed industrial Ethernet switches which support Gigabit Ethernet via built in fiber optic ports. These solutions feature embedded IXM functions to hasten deployment and reduce engineering time/costs. These switches extend transmission distances beyond the 100 m (328 ft) copper cable limitations using fiber port - they support 550 m (1804 ft) in multi-mode and 10 km (6.21 mi) in single mode. The EKI-7708G-2MI/2SI series supports WebAccess/NMS to aid in network maintenance and failure prevention. These managed Ethernet switches deliver ultra-high speed recovery times of <20 ms using X-Ring Pro to ensure network stability. This solution supports broad operating temperatures (-40 ~ 75 °C /-40 ~ 167 °F), for use in traffic applications
Product Type	Ethernet Switch

Technical Information

Features

Interfaces/Ports

Total Number of Network Ports	6
Network (RJ-45)	Yes
Port/Expansion Slot Details	6 x Gigabit Ethernet Network 2 x Gigabit Ethernet Network

Media & Performance

Media Type Supported	Twisted Pair Optical Fiber
Fiber Optic Cable Core/Cladding Specification	9/125 µm
Fiber Mode Supported	Single-mode
Fiber Optic Cable Wavelength	1310 nm
Ethernet Technology	Gigabit Ethernet
Network Technology	10/100/1000Base-TX 1000Base-SX/LX
Maximum Data Transfer Rate	128 MB/s

Network & Communication

Layer Supported	2
Networking Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3x IEEE 802.3z IEEE 802.1w IEEE 802.1D IEEE 802.1x IEEE 802.1s

Management & Protocols

Manageable

Yes

Power Description

Input Voltage	12 V DC 48 V DC 18 V AC 24 V AC 30 V AC
Power Source	AC/DC
Redundant Power Supply Supported	Yes
Power Consumption	7 W
Plug/Connector Type	Terminal Block

Physical Characteristics

Product Material	Metal
Form Factor	DIN Rail Mountable Wall Mountable Enclosure
Height	6"
Width	2.4"
Depth	4.1"

Miscellaneous

Application/Usage	Network Industrial
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

5 Year
