8G + 4SFP PORT MANAGED ETHERNET SWITCH W

Name: 8G + 4SFP PORT MANAGED ETHERNET SWITCH W
Brand: ADVANTECH
SKU: Z22452
Price: 939.15 USD
Availability: InStock

ADVANTECH

PCN#

Z22452

MFG#

EKI-7712G-4FI-AU

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$939.15

Extended & Accidental Damage Protection Plans Available Details

2-Year $89.99

3-Year $120.99

Free Shipping

Estimated Shipment:

Product Highlights:

8 Ports
Manageable
Gigabit Ethernet
10/100/1000Base
TX, 10/100/1000Base
T, 1000Base
SX/LX, 1000Base
LHX, 1000Base
ZX
2 Layer Supported
4 SFP Slots
12.10 W Power Consumption
Twisted Pair, Optical Fiber
Enclosure, DIN Rail Mountable, Wall Mountable
5 Year Limited Warranty

Product Condition: New and Factory Fresh

Limited Warranty5 Year

Shipping Weight: 1 lbs.

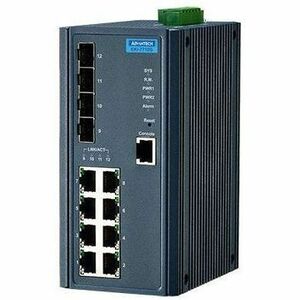

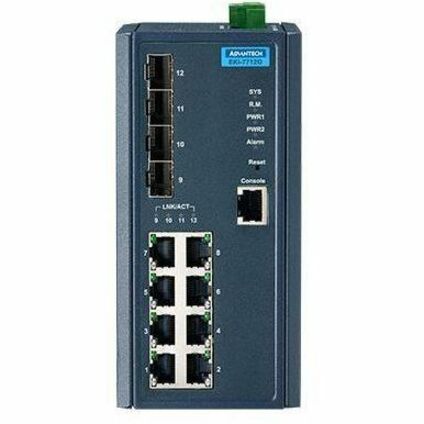

Advantech EKI-7712G-4FI Ethernet Switch

Overview

Tech Specs

Specifications

Manufacturer	Advantech Co., Ltd
Manufacturer Part Number	EKI-7712G-4FI-AU
Manufacturer Website Address	http://www.advantech.com
Brand Name	Advantech
Product Series	EKI-7712G
Product Model	EKI-7712G-4FI
Product Name	EKI-7712G-4FI Ethernet Switch
Marketing Information	The EKI-7712G-4F and EKI-7712G-4FI provide users with abundant port options for connecting to a range of different device types with 8 Gigabit ports and 4 SFP (mini-GBIC) ports. These units are embedded with Advantech's IXM function, which can benefit users with fast deployment and can save considerably on engineering time and costs. The EKI-7712G series also support NMS to help IT managers with networking maintenance and failure prevention. Finally, the series are equipped with X-Ring Pro, which can achieve ultra-highspeed recovery times of <20 ms, thus ensuring network stability. The EKI-7712G-4FI also features a wide operating temperature of -40 to 75°C and NEMA TS2 rating, making it ideal for use in traffic applications. Both the EKI-7712G-4F and EKI-7712G-4FI comply with EN50121-4 European railway standard requirements for emissions and railway platform and trackside deployment.
Product Type	Ethernet Switch

Technical Information

Features

Broadcast Storm Control
Strict Priority Queuing (SPQ)
Access Control List
DHCP Relay
Remote Monitoring (RMON)
Support Dual Image
IP40

Interfaces/Ports

Total Number of Network Ports	8
Network (RJ-45)	Yes
Port/Expansion Slot Details	8 x 10/100/1000BASE-T/TX Gigabit Ethernet RJ-45 Network Port 4 x Gigabit Ethernet SFP (mini-GBIC) Expansion Slot

Media & Performance

Media Type Supported	Twisted Pair Optical Fiber
Ethernet Technology	Gigabit Ethernet
Network Technology	10/100/1000Base-TX 10/100/1000Base-T 1000Base-SX/LX 1000Base-LHX 1000Base-ZX
Maximum Data Transfer Rate	128 MB/s

I/O Expansions

Total Number of Expansion Slots	4
Expansion Slot Type	SFP (mini-GBIC)
Number of SFP Slots	4

Network & Communication

Layer Supported	2
Networking Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3z IEEE 802.3x IEEE 802.1w IEEE 802.1D IEEE 802.1x IEEE 802.1Q IEEE 802.1ad IEEE 802.1ab IEEE 802.1s IEEE 802.1p IEEE 802.3ad

Management & Protocols

Manageable

Yes

Reliability

MTBF	1377597 Hour

Power Description

Input Voltage	12 V DC 48 V DC
Power Source	DC
Redundant Power Supply Supported	Yes
Power Consumption	12.10 W
Plug/Connector Type	Terminal Block

Physical Characteristics

Product Material	Metal
Form Factor	Enclosure DIN Rail Mountable Wall Mountable
Height	6"
Width	2.9"
Depth	4.1"

Miscellaneous

Application/Usage	Network Traffic Industrial Security
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

5 Year
