INDUSTRIAL MANAGED ETHENET SWITCH 16G+4SFP PORT MANAGED ETHERN

Name: INDUSTRIAL MANAGED ETHENET SWITCH 16G+4SFP PORT MANAGED ETHERN
Brand: ADVANTECH
SKU: 540C64
Price: 1357.82 USD
Availability: InStock

ADVANTECH

PCN#

540C64

MFG#

EKI-7720G-4F-BE

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$1,357.82

Extended & Accidental Damage Protection Plans Available Details

3-Year $143.99

2-Year $107.99

Free Shipping

Estimated Shipment:

Product Highlights:

16 Ports
Manageable
Gigabit Ethernet
10/100/1000Base
T, 1000Base
X
2 Layer Supported
4 SFP Slots
14.50 W Power Consumption
Twisted Pair, Optical Fiber
DIN Rail Mountable, Wall Mountable
5 Year Limited Warranty

Product Condition: New and Factory Fresh

Limited Warranty5 Year

Shipping Weight: 4 lbs.

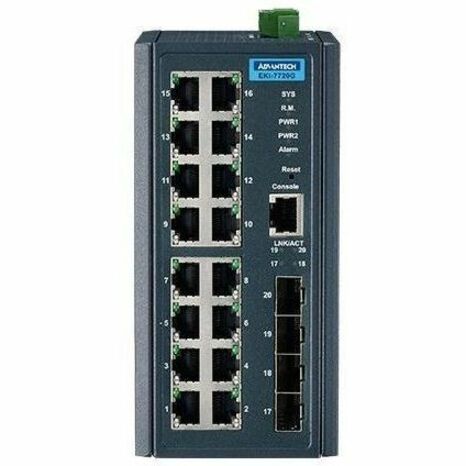

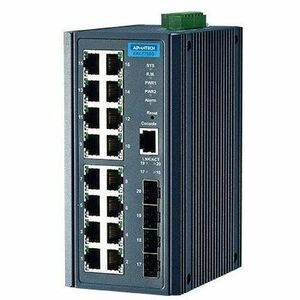

Advantech 16GE+4G SFP Port Gigabit Managed Redundant Industrial Switch

Overview

Tech Specs

Specifications

Manufacturer	Advantech Co., Ltd
Manufacturer Part Number	EKI-7720G-4F-BE
Manufacturer Website Address	http://www.advantech.com
Brand Name	Advantech
Product Model	EKI-7720G-4F
Product Name	16GE+4G SFP Port Gigabit Managed Redundant Industrial Switch
Marketing Information	The EKI-7720G-4F and EKI-7720G-4FI provide users with abundant port options for connecting to various device types with 16 Gigabit Ethernet ports and 4 SFP (mini-GBIC) ports. These switches are embedded with Advantech's IXM function, which can benefit users with fast deployment and can dramatically save on engineering time and costs. The series also support NMS to help IT managers with networking maintenance and failure prevention. Finally, these switches are equipped with X-Ring Pro, which can achieve ultra-high-speed recovery times of <20 ms, thus ensuring network stability. The EKI-7720G-4FI in particular features a wide operating temperature range of wide -40 ~ 75°C.
Product Type	Ethernet Switch

Technical Information

Features

IP30
Port Mirroring
Unicast Storm Control
Multicast Storm Control
Link Aggregation
DHCP Snooping
Remote Monitoring (RMON)

Interfaces/Ports

Total Number of Network Ports	16
Stack Port	Yes
Network (RJ-45)	Yes
Port/Expansion Slot Details	16 x Gigabit Ethernet Network 4 x Gigabit Ethernet Expansion Slot

Media & Performance

Media Type Supported	Twisted Pair Optical Fiber
Ethernet Technology	Gigabit Ethernet
Network Technology	10/100/1000Base-T 1000Base-X
Maximum Data Transfer Rate	128 MB/s

I/O Expansions

Total Number of Expansion Slots	4
Expansion Slot Type	SFP (mini-GBIC)
Number of SFP Slots	4

Network & Communication

Layer Supported	2
Networking Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3z IEEE 802.3x IEEE 802.1w IEEE 802.1x IEEE 802.1Q IEEE 802.1ad IEEE 802.1ab IEEE 802.1D IEEE 802.1s IEEE 802.1p IEEE 802.3ad

Management & Protocols

Manageable	Yes
Data Link Protocols	HTTP HTTPS

Reliability

MTBF	1469341 Hour

Power Description

Input Voltage	12 V DC 48 V DC
Power Source	DC
Power Consumption	14.50 W
Plug/Connector Type	Terminal Block

Physical Characteristics

Product Material	Metal
Form Factor	DIN Rail Mountable Wall Mountable
Height	6"
Width	2.9"
Depth	4.1"
Weight (Approximate)	2.87 lb

Miscellaneous

Application/Usage	Industrial Security Network Server
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

5 Year
