POE MANAGED ETHERNET SWITCH 16G+4SFP PORT POE MANAGED ETHERNET

Name: POE MANAGED ETHERNET SWITCH 16G+4SFP PORT POE MANAGED ETHERNET
Brand: ADVANTECH
SKU: SR2650
Price: 1481.71 USD
Availability: InStock

ADVANTECH

PCN#

SR2650

MFG#

EKI-7720G-4FPI-BE

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$1,481.71

Extended & Accidental Damage Protection Plans Available Details

3-Year $143.99

2-Year $107.99

Free Shipping

Estimated Shipment:

Product Highlights:

16 Ports
Manageable
Gigabit Ethernet
10/100/1000Base
TX, 10/100/1000Base
T, 1000Base
X, 1000Base
SX/LX, 1000Base
LHX, 1000Base
ZX, 100Base
FX
2 Layer Supported
4 SFP Slots
16 W Power Consumption
420 W PoE Budget
Twisted Pair, Optical Fiber
PoE Ports
DIN Rail Mountable, Wall Mountable, Enclosure
5 Year Limited Warranty

Product Condition: New and Factory Fresh

Limited Warranty5 Year

Shipping Weight: 2 lbs.

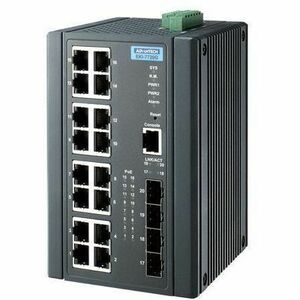

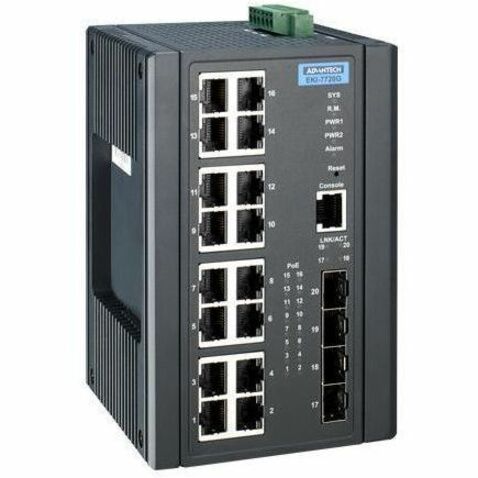

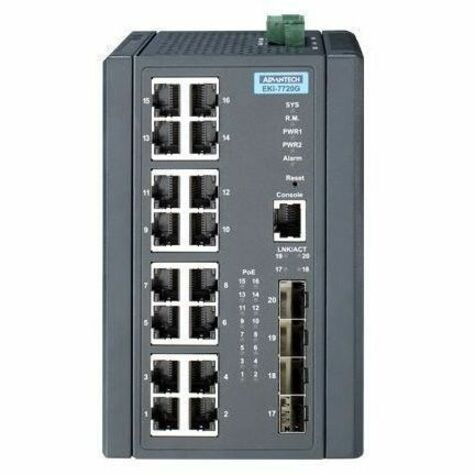

Advantech EKI-7720G-4FPI Ethernet Switch

Overview

Tech Specs

Specifications

Manufacturer	Advantech Co., Ltd
Manufacturer Part Number	EKI-7720G-4FPI-BE
Manufacturer Website Address	http://www.advantech.com
Brand Name	Advantech
Product Series	EKI-7700
Product Model	EKI-7720G-4FPI
Product Name	EKI-7720G-4FPI Ethernet Switch
Marketing Information	The EKI-7720G-4FPI Gigabit managed PoE switch comes with 16 10/100/1000BaseT(X) ports with 802.3af/at supported and 4 Giga SFP ports. It features 16 IEEE802.3af/at PoE ports, -40~70°C operating temperature, and Din-Rail/Wall-Mount installation options, making it ideal for application which requires high-bandwidth transmission, more PoE ports, and Din-Rail installation. In addition, it is also embedded with Advantech exclusive features like IXM which benefits users for fast deployment and can dramatically save engineers time and costs, X-Ring Pro which achieves ultra-high speed recovery time of less than 20ms to ensure network stability, and Security Pack which protects your network from internal intrusion.
Product Type	Ethernet Switch

Technical Information

Features

IP30
Broadcast Storm Control
Strict Priority Queuing (SPQ)
DHCP Snooping
Access Control List
DHCP Relay
Remote Monitoring (RMON)

Interfaces/Ports

Total Number of Network Ports	16
Network (RJ-45)	Yes
Port/Expansion Slot Details	16 x 10/100/1000BASE-T/TX Gigabit Ethernet PoE RJ-45 Network Port 4 x Gigabit Ethernet SFP Expansion Slot

Media & Performance

Media Type Supported	Twisted Pair Optical Fiber
Ethernet Technology	Gigabit Ethernet
Network Technology	10/100/1000Base-TX 10/100/1000Base-T 1000Base-X 1000Base-SX/LX 1000Base-LHX 1000Base-ZX 100Base-FX
Maximum Data Transfer Rate	128 MB/s

I/O Expansions

Total Number of Expansion Slots	4
Expansion Slot Type	SFP
Number of SFP Slots	4

Network & Communication

Layer Supported	2
Networking Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3z IEEE 802.3x IEEE 802.3af IEEE 802.3at IEEE 802.1D IEEE 802.1x IEEE 802.1ad IEEE 802.1ab IEEE 802.1s IEEE 802.1w IEEE 802.1p IEEE 802.3ad

Management & Protocols

Manageable

Yes

Reliability

MTBF	1343056 Hour

Power Description

PoE (RJ-45) Port	Yes
PoE Budget	420 W
Input Voltage	48 V DC 53 V DC 57 V DC
Power Source	DC
Redundant Power Supply Supported	Yes
Power Consumption	16 W
Plug/Connector Type	Terminal Block

Physical Characteristics

Product Material	Metal
Form Factor	DIN Rail Mountable Wall Mountable Enclosure
Height	6"
Width	3.8"
Depth	4.1"

Miscellaneous

Application/Usage	Network Security Industrial Traffic
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

5 Year
