8G + 2G SFP MANAGED TSN SWITCH

Name: 8G + 2G SFP MANAGED TSN SWITCH
Brand: ADVANTECH
SKU: Z22396
Price: 965.59 USD
Availability: InStock

ADVANTECH

PCN#

Z22396

MFG#

EKI-8510G-2FI-A

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$965.59

Extended & Accidental Damage Protection Plans Available Details

2-Year $89.99

3-Year $120.99

Free Shipping

Estimated Shipment:

Product Highlights:

8 Ports
Manageable
Gigabit Ethernet
10/100/1000Base
TX, 1000Base
SX/LX, 1000Base
LHX, 1000Base
XD, 1000Base
ZX, 1000Base
EZX, 10/100/1000Base
T
2 Layer Supported
2 SFP Slots
16.60 W Power Consumption
Twisted Pair, Optical Fiber
DIN Rail Mountable, Wall Mountable
5 Year Limited Warranty

Product Condition: New and Factory Fresh

Limited Warranty5 Year

Shipping Weight: 1 lbs.

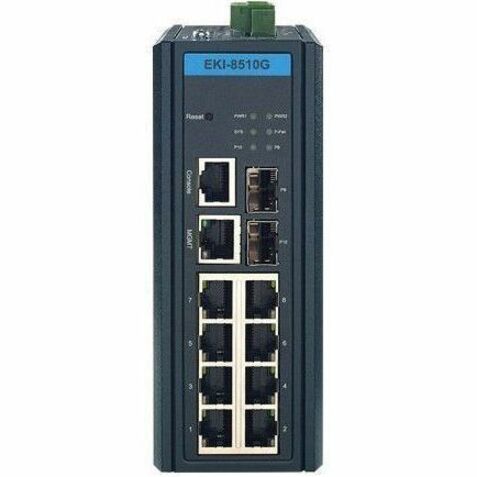

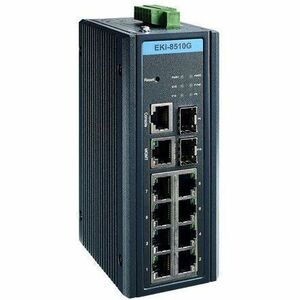

Advantech EKI-8510G-2FI Ethernet Switch

Overview

Tech Specs

Specifications

Manufacturer	Advantech Co., Ltd
Manufacturer Part Number	EKI-8510G-2FI-A
Manufacturer Website Address	http://www.advantech.com
Brand Name	Advantech
Product Model	EKI-8510G-2FI
Product Name	EKI-8510G-2FI Ethernet Switch
Marketing Information	The EKI-8510G-2FI is the next generation of industrial switch which supports real-time communication through Time Sensitive Networking (TSN) technology. Providing a means for determinism over Ethernet-based networks and guarantee the delivery for those critical real-time applications that require determinism. The key features of EKI-8510G-2FI TSN switch are: Supports IEEE 1588v2 Precision Time Protocol (PTP) with time synchronization, it is possible for all devices to operate in unison and execute the operation at exactly the required point in time. With IEEE 802.1Qbu for Frame Preemption, it allows for a reduction of transmission latency for express traffic, which can preempt low priority packets. The Time Aware Shaper (TAS) which from IEEE 802.1Qbv, separates communication into fixed lengths and repeating time cycles. This requires transmission guarantees cannot be interrupted. Based on IEEE 802.1CB for Seamless Redundancy, Frame Replication and Elimination for Reliability sends duplicate copies of each frame over multiple paths which control applications that cannot tolerate packet losses.
Product Type	Ethernet Switch

Technical Information

Features

IP30
Broadcast Storm Control
Strict Priority Queuing (SPQ)
Access Control List
DHCP Snooping
DHCP Relay
Support Dual Image

Interfaces/Ports

Total Number of Network Ports	8
Network (RJ-45)	Yes
Port/Expansion Slot Details	8 x 10/100/1000BASE-T Gigabit Ethernet RJ-45 Network Port 2 x Gigabit Ethernet SFP Expansion Slot 1 x 10/100/1000BASE-T/TX RJ-45 Management Port

Media & Performance

Media Type Supported	Twisted Pair Optical Fiber
Ethernet Technology	Gigabit Ethernet
Network Technology	10/100/1000Base-TX 1000Base-SX/LX 1000Base-LHX 1000Base-XD 1000Base-ZX 1000Base-EZX 10/100/1000Base-T
Maximum Data Transfer Rate	128 MB/s

I/O Expansions

Total Number of Expansion Slots	2
Expansion Slot Type	SFP (mini-GBIC)
Number of SFP Slots	2

Network & Communication

Layer Supported	2
Networking Standards	IEEE 802.3 IEEE 802.1Qbu IEEE 802.3u IEEE 802.3ab IEEE 802.3z IEEE 802.3x IEEE 802.1as IEEE 802.1Q IEEE 802.1v IEEE 802.3ad IEEE 802.1D IEEE 802.1w IEEE 802.1p IEEE 802.1x

Management & Protocols

Manageable

Yes

Power Description

Input Voltage	12 V DC 48 V DC
Power Source	DC
Power Consumption	16.60 W
Plug/Connector Type	Terminal Block

Physical Characteristics

Product Material	Metal
Form Factor	DIN Rail Mountable Wall Mountable
Height	5.5"
Width	2.3"
Depth	3.7"
Weight (Approximate)	3.09 lb

Miscellaneous

Application/Usage	Traffic Network Industrial
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

5 Year
