TRAIN SWITCH 16 M12 X 1G PORT W/ 12 PO

Name: TRAIN SWITCH 16 M12 X 1G PORT W/ 12 PO
Brand: ADVANTECH
SKU: Z22447
Price: 2629.17 USD
Availability: InStock

ADVANTECH

PCN#

Z22447

MFG#

EKI-9516-P0IDH10E

$2,629.17

Extended & Accidental Damage Protection Plans Available Details

2-Year $197.99

3-Year $263.99

Free Shipping

Estimated Shipment:

Product Highlights:

Product Condition: New and Factory Fresh

Limited Warranty5 Year

Shipping Weight: 1 lbs.

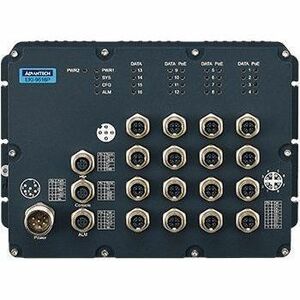

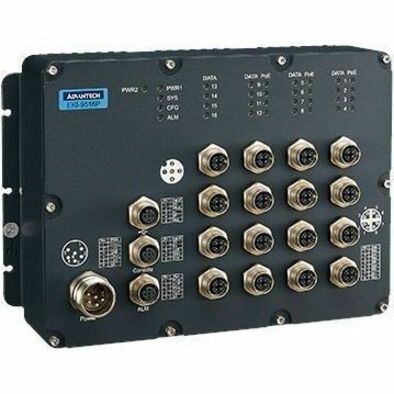

Advantech EKI-9516P-HV Ethernet Switch

Tech Specs

Specifications

Manufacturer	Advantech Co., Ltd
Manufacturer Part Number	EKI-9516-P0IDH10E
Manufacturer Website Address	http://www.advantech.com
Brand Name	Advantech
Product Series	EKI-9516
Product Model	EKI-9516P-HV
Product Name	EKI-9516P-HV Ethernet Switch
Marketing Information	EKI-9512D M12 Managed Ethernet Switch is designed for railway applications, including rolling stock. EKI-9512D switch uses M12 connectors to ensure tight, robust connections, and to guarantee reliable operation against environmental disturbances, such as vibration and shock. EKI-9512D provides 12 Fast Ethernet M12 ports. In addition, EKI-9512D provides a wide power input range of 24/36/48/72/96/110 VDC; the dual, isolated power input increases the reliability of your communications system. The -40 to 70° C operating temperature and IP67-rated waterproof enclosure allow deployment in harsh environments. EKI-9512D is compliant with the essential sections of the European railway standard EN 50155, EN50121-3-2 covering operating temperature, power input voltage, surge, ESD, and vibration, making the switches suitable for a variety of industrial applications.
Product Type	Ethernet Switch

Technical Information

Features

Interfaces/Ports

Port/Expansion Slot Details	12 x M12 D-Code 10/100BaseT PoE Ethernet Network Port 4 x M12 D-Code 10/100BaseT Ethernet Network Port
Number of M12 Connectors	16

Media & Performance

Network & Communication

Layer Supported	2
Networking Standards	IEEE 802.1D IEEE 802.1s IEEE 802.1w IEEE 802.1p IEEE 802.3ad IEEE 802.1x

Management & Protocols

Manageable

Yes

Power Description

Physical Characteristics

Product Material	Aluminum
Form Factor	Wall Mountable DIN Rail Mountable Enclosure
Height	2.5"
Width	10"
Depth	6.9"
Weight (Approximate)	7.72 lb

Miscellaneous

Application/Usage	Network Industrial Traffic Security
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

5 Year
