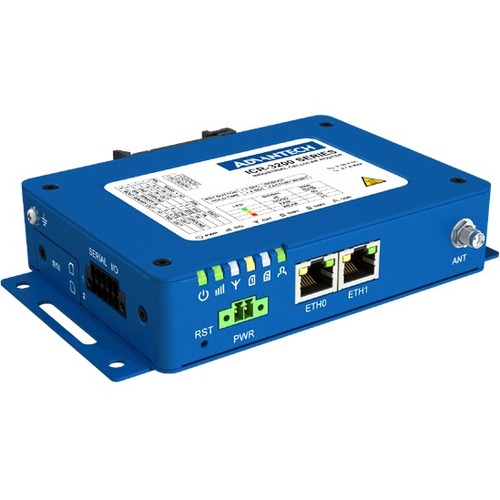

Advantech ICR-3211B 2 SIM Cellular Modem/Wireless Router

Name: Advantech ICR-3211B 2 SIM Cellular Modem/Wireless Router
Brand: ADVANTECH
SKU: Z22059
Price: 435.87 USD
Availability: InStock

ADVANTECH

PCN#

Z22059

MFG#

ICR-3211B

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$435.87

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

4G
LTE 700, LTE 800, LTE 850, LTE 900, LTE 1700, LTE 1800, LTE 1900, LTE 2100, GSM 900, GSM 1800
LTE, GPRS
2 x Network Port
Fast Ethernet
VPN Supported
Wall Mountable, DIN Rail Mountable

Product Condition: New and Factory Fresh

Shipping Weight: 1 lbs.

Advantech ICR-3211B 2 SIM Cellular Modem/Wireless Router

Overview

Tech Specs

Specifications

Manufacturer	Advantech Co., Ltd
Manufacturer Part Number	ICR-3211B
Manufacturer Website Address	http://www.advantech.com
Brand Name	Advantech
Product Model	ICR-3211B
Product Name	Industrial IoT LTE CAT M1 Router & Gateway
Marketing Information	ICR-3211B is an industrial cellular gateway intended for the North American market (NAM). The ICR-3211B router is designed for wireless communication in the mobile networks that make use of traditional cellular technologies. The primary purpose of this router is its use in the Category M1 (Cat M1) services on the cellular LTE network. LTE Cat M1 is a new cellular technology specifically designed for the needs of applications targeting the Internet of Things (IoT) or machine-to-machine (M2M) communications. LTE Cat M1 is a low-power wide-area (LPWA) air interface that lets you connect IoT and M2M devices with medium data rate requirements (375 kbps upload and download speeds in half duplex mode). In addition to its two independent or switched Ethernet ports, serial ports RS232 and RS485, ICR-3211B has built-in digital I/O connectivity, backup real-time clock and sleep mode support. The device has two SIM readers protected by metallic cover for carrier failover redundancy. As an addition the router is ready to use internal eSIM. The Last-gasp supercapacitor ensures safe sending out of information about power failure or send last processed data. The router supports VPN tunnel creation using various protocols to ensure safe communications. The router provides diagnostic functions which include automatic monitoring of the wireless and wired connections, automatic restart in case of connection losses, and a hardware watchdog that monitors the router status. The ICR-3211B places intelligence at the network edge with an extremely powerful Cortex A8 CPU at 1GHz, 512 MB RAM and 4 GB EMMC FLASH memory in pSLC mode for a long-lifetime and critical industrial applications. 1.3 GB of memory space is allocated for customer SW applications and data. With open Linux platform and wide posibilities of programming customer SW applications in Python, C/C++ or browser-based flow editor Node-RED the ICR-3211B offers a real open development platform for Industrial IoT applications. The Advantech existing app library (User modules) with apps already developed to enhance specific router functionality including industrial protocol conversions and support of IoT platforms such as MS Azure, Cumulocity, ThingWorx and others are supported on the router. ICR-3211B is easy to install using WebAccess/DMP, a full featured configuration and monitoring tool for mass deployment. The router also supports additional traffic and health monitoring software R-SeeNet.
Packaged Quantity	1
Product Type	Modem/Wireless Router

Wireless Specifications

Broadband Transmission Technology	Cellular
Cellular Generation	4G
Cellular Network Supported	LTE 700 LTE 800 LTE 850 LTE 900 LTE 1700 LTE 1800 LTE 1900 LTE 2100 GSM 900 GSM 1800
Cellular Data Connectivity Technology	LTE GPRS

Interfaces/Ports

Number of Network (RJ-45) Ports

Network & Communication

Ethernet Technology	Fast Ethernet
VPN Supported	Yes
Multi-SIM Supported	Yes
Number of SIM Card Supported	2
SIM Size Supported	Mini

Physical Characteristics

Form Factor	Wall Mountable DIN Rail Mountable
Height	2.2"
Width	4.9"
Depth	3.8"
Weight (Approximate)	1.01 lb

Miscellaneous

Package Contents	Industrial IoT LTE CAT M1 Router & Gateway Wall Mount Kit DIN Clip Serial / IO Connector PWR Connector Quick Start Guide
Environmentally Friendly	Yes
Environmental Compliance	Waste Electrical and Electronic Equipment Directive (WEEE) Restriction of Hazardous Substances (RoHS) Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Country of Origin	Czech Republic
