CELLULAR ROUTER 5G 5X ETH

The ICR-4461 is an Ultra-high-speed 5G NR (New Radio) Router & Powerful Edge Computing Gateway focused on the global market. The 5G "gigabit" speed and low latency, and high network availability is a real step to massive IoT - Mobile Internet access, Camera and security systems, Industrial systems, and many other high data demand applications. The router supports fallback via LTE (LTE-A Pro) and 3G networks for areas where 5G coverage is not developed yet.

The new router platform "v4" provides intelligence at the network edge with an extremely powerful Cortex A72 CPU at 1200 MHz, 4 GB eMMC memory, 4 MB flash memory, and 1024 MB RAM. The focus on high security underlines using TPM 2.0, and the Tamper Button that ensures safe use in industrial systems.

The ICR-4461 is powered by the ICR-OS Linux operating system that provides a wide range of enhanced networking features. A secure Web interface allows users to configure and manage routers from remote locations. The router supports multiple configuration profiles, automatic firmware updates, etc. The router can be used as a powerful edge computing gateway because of the support of many ways of software customization. Users may insert Linux scripts and add new features by additional applications called Router Apps (User Modules).

There is an existing free library of Router Apps or the user may create own app using Advantech SDK. The gateway can easily run applications like Node-RED or Docker that open the way to a multi-container world.

The ICR-4461 is designed and manufactured for use in tough environmental conditions. Specifications include a wide operating temperature ranges from -40 up to +75 °C. It accepts input voltage range from 9 V DC to 48 V DC and is equipped with sleep mode for reducing electrical consumption.

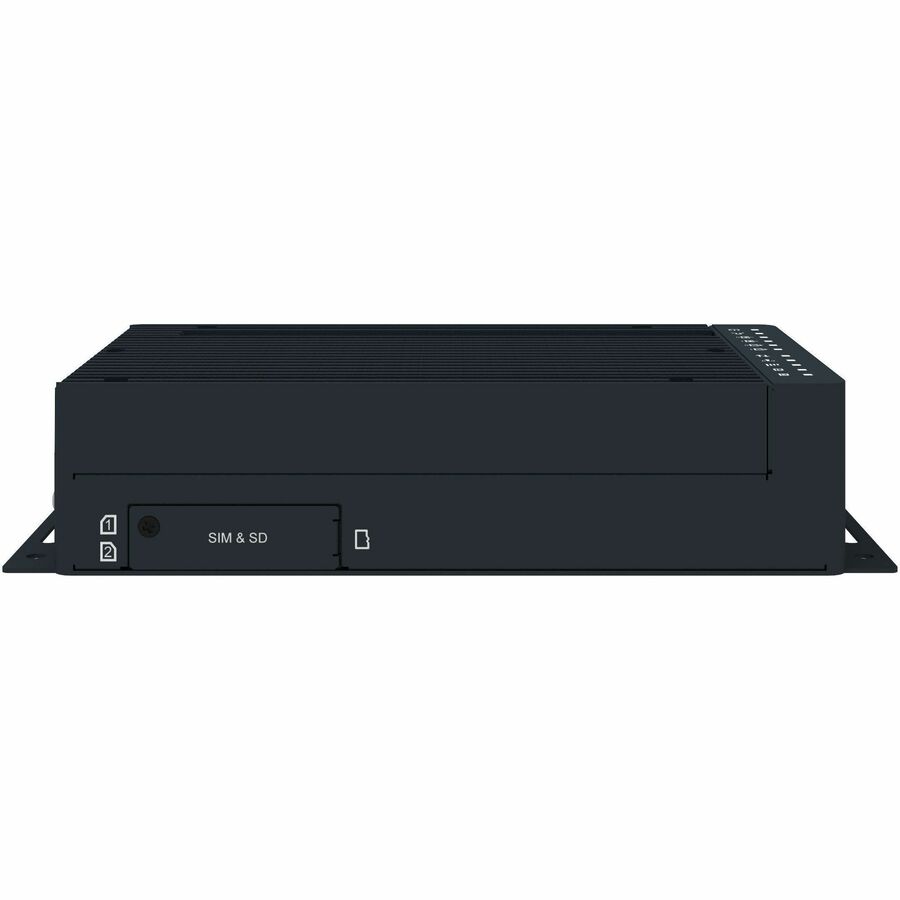

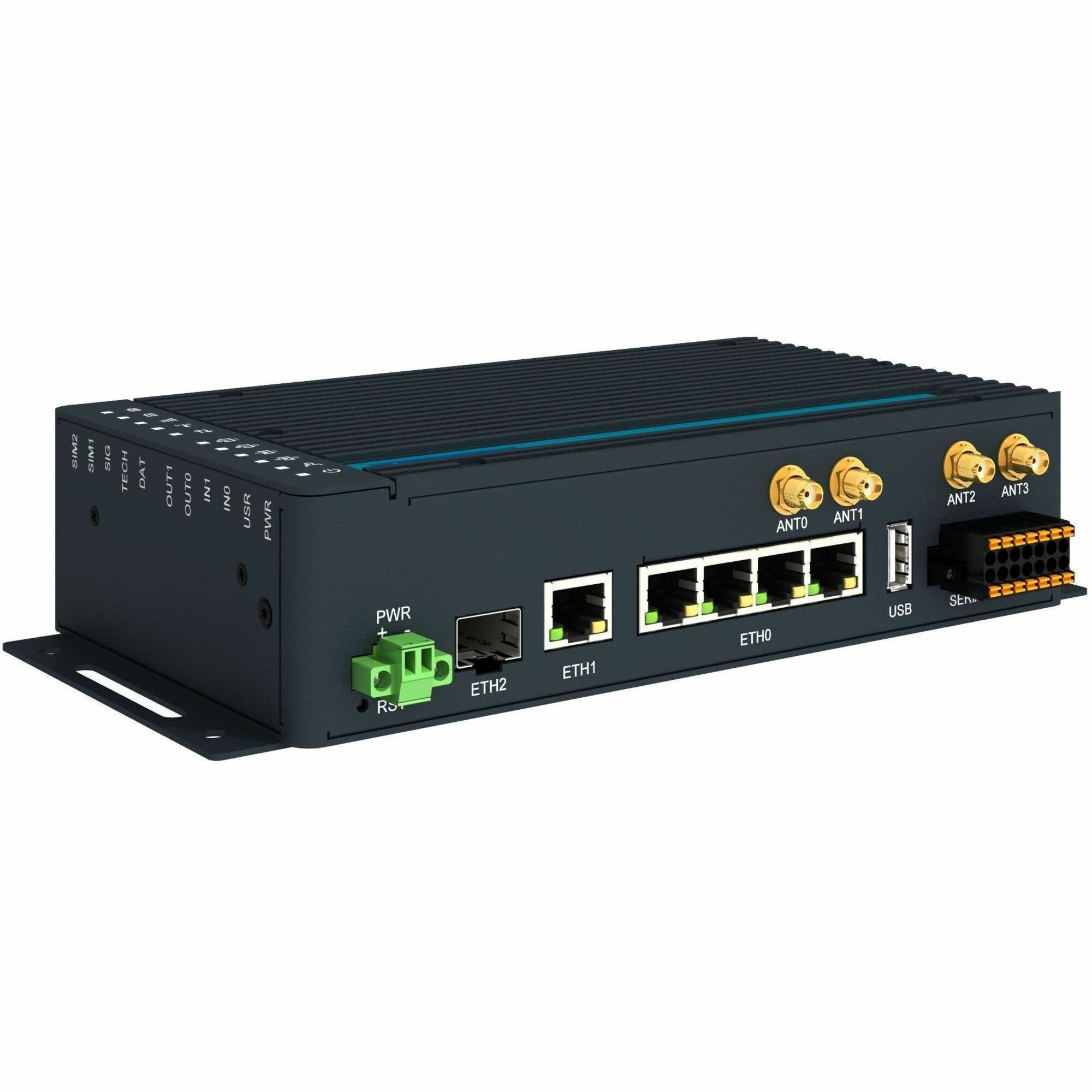

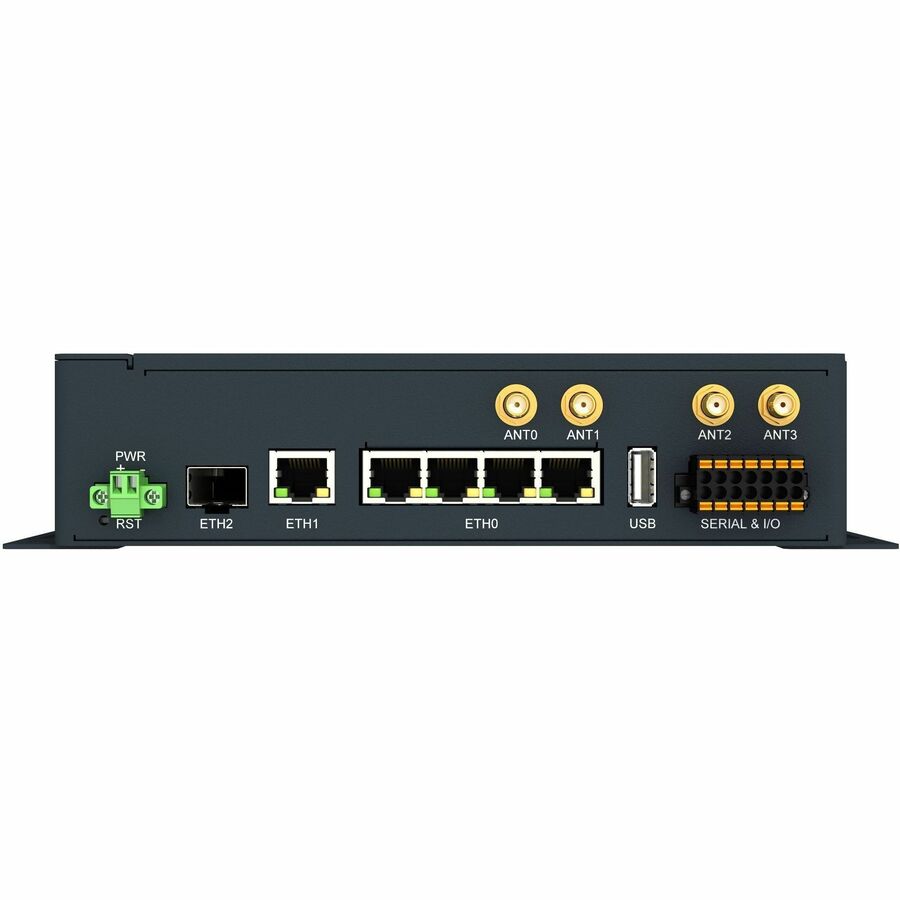

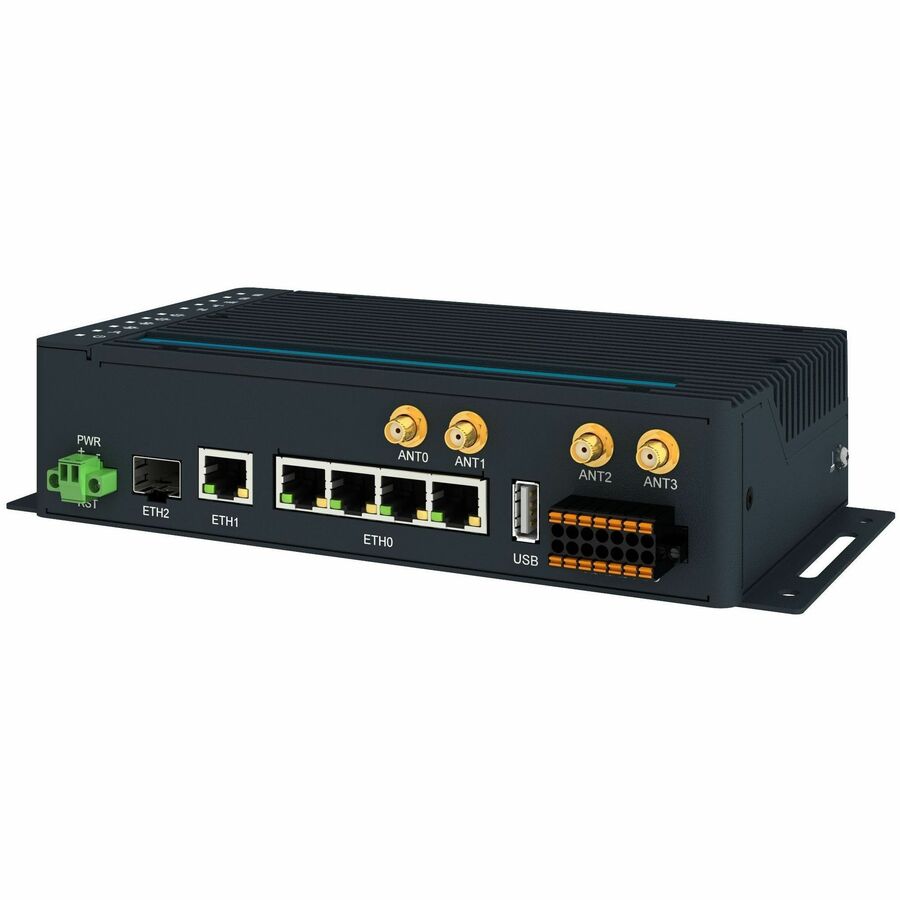

As a standard, ICR-4461 is equipped with five Ethernet 10/100/1000 Mbps (1× independent and 4× switch), SFP cage (independent port), one USB host 2.0, microSD reader, serial lines RS232 and RS485, CAN Bus, two binary inputs, and two binary outputs. This router contains two SIMs readers, which are placed on the rear side of the device.

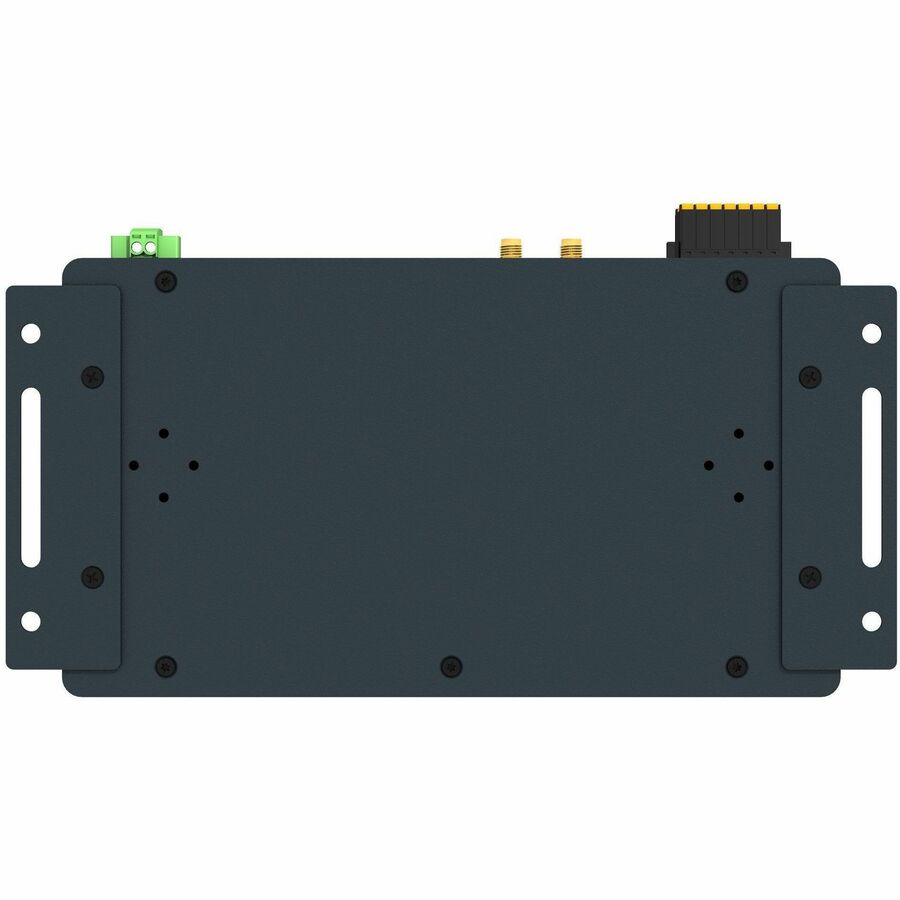

ICR-4400 has two mPCIe connectors that can be used for two WiFi modules with 802.11a,b,g,n,ac modes, 2 × 2 MIMO support, and Bluetooth v5.0 are available. The router is supplied in a robust metal casing for a wall mount (DIN mount is optional).

To streamline management and deployment of the ICR-4461 router family can be easily managed using a comprehensive cloud-based tool WebAccess/DMP. This software tool enables centralized management, provisioning, and monitoring of multiple routers, simplifying the process of scaling and maintaining a network infrastructure or centralize management of VPN connections.

• Cellular
• Ethernet

• 5G NR
• LTE
• HSPA+
• UMTS

• DES
• 3DES
• AES
• RSA 4096-bit
• MD5
• SHA

• NAT
• PAT

• Wall Mountable
• DIN Rail Mountable

• ICR-4461 Modem/Wireless Router
• 2-pin PWR Connector
• 14-pin Serial / IO Connector
• Wall Mount Kit

• EN 301 908-1
• EN 301 908-2
• EN 301 908-13
• EN 301 908-25
• EN 303 413
• EN 300 328
• EN 301 893
• FCC part 22H
• FCC part 24E
• FCC part 27
• FCC part 90
• FCC part 96
• PTCRB
• EN 301 491-1
• EN 301 489-17
• EN 301 489-19
• EN 301 489-52
• EN 610000-6-2
• EN 610000-6-3
• EN 55032
• EN 61000-4-2
• EN 61000-4-3
• EN 61000-4-4
• EN 61000-4-5
• EN 61000-4-6
• FCC part 15.B
• FCC part 15C
• FCC part 15E
• IEC 62368-1
• EN 18031-1
• E-mark
• CE
• UKCA
• FCC
• IC
• FirstNet
• AT&T
• Verizon T-Mobile
• EN 60068-2-27

https://advdownload.advantech.com/productfile/PIS/ICR-4461/file/Datasheet_A4_ICR-4461_31102025_email20251031170707.pdf?_gl=1*p9gp0g*_gcl_au*MjI0MTkyMTg1LjE3NzI3ODA0MTI.*_ga*NjExNTA4MTY0LjE3NzI3ODE4NjY.*_ga_CFPK80LF7Y*czE3NzMxMzE1MDIkbzkkZzEkdDE3NzMxMzI4NDckajYwJGwwJGgxNjE4ODA0OTUz

• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
• Restriction of Hazardous Substances (RoHS) 3
• Waste Electrical and Electronic Equipment Directive (WEEE)
• Restriction of Hazardous Substances (RoHS)
