10G ETHERNET MEDIA CONVERTER

Name: 10G ETHERNET MEDIA CONVERTER
Brand: ADVANTECH
SKU: Z22480
Price: 388.91 USD
Availability: InStock

ADVANTECH

PCN#

Z22480

MFG#

IMC-310I-SFP-A

$388.91

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

Product Condition: New and Factory Fresh

Shipping Weight: 1 lbs.

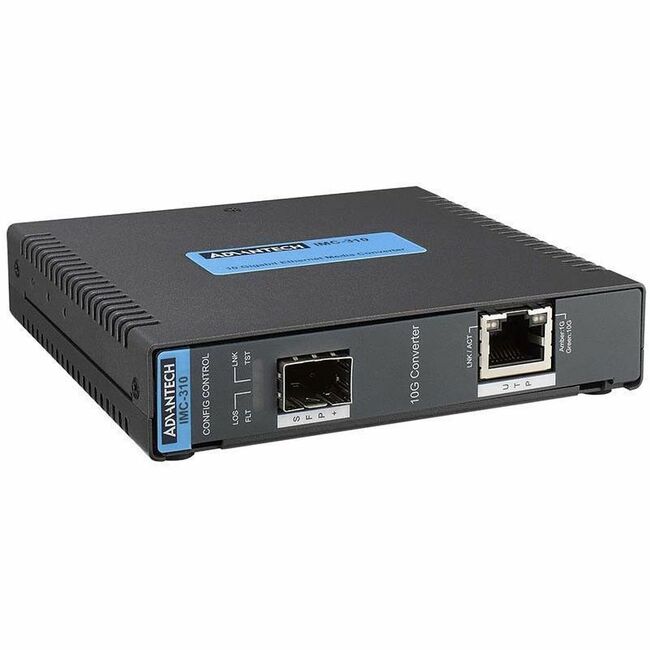

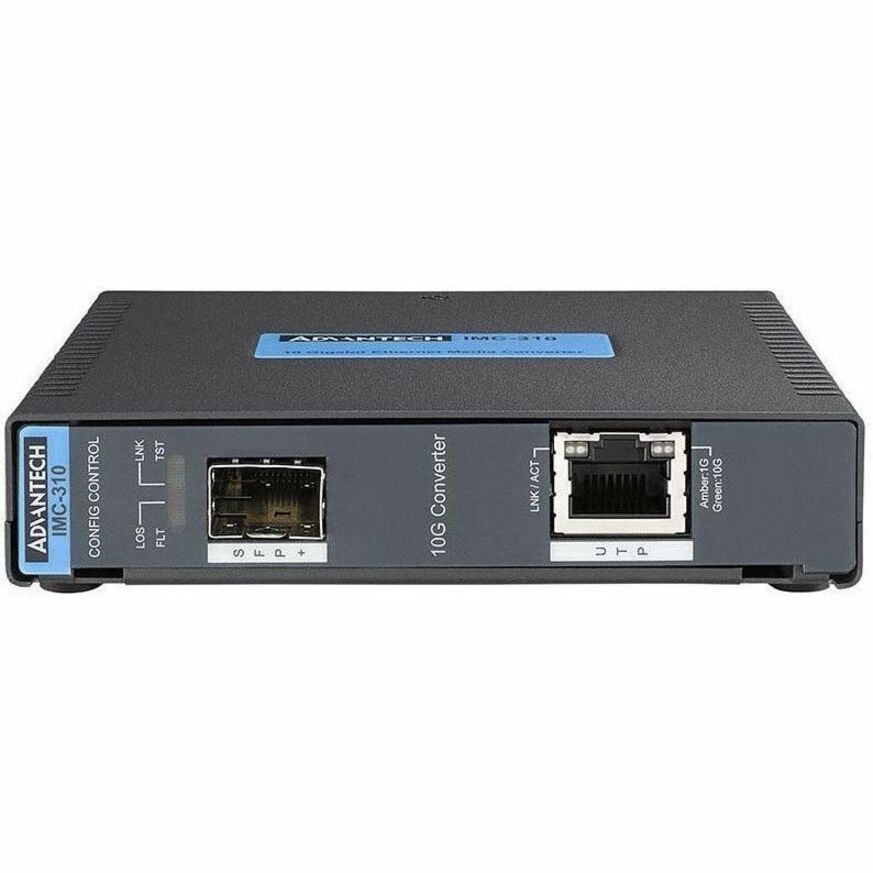

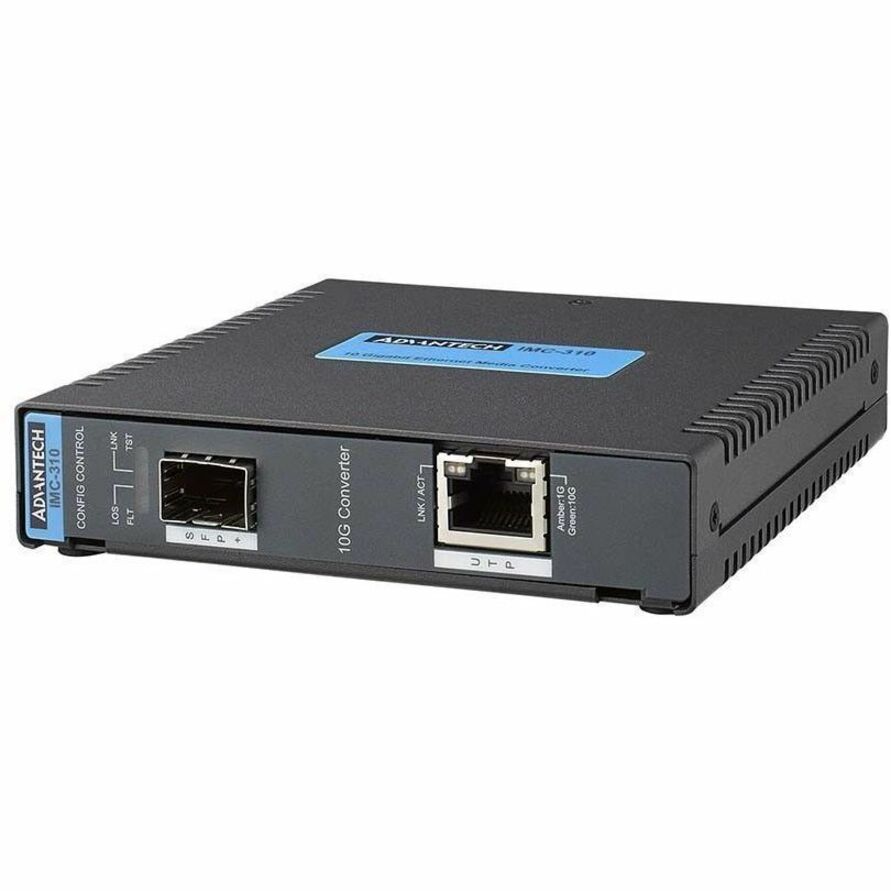

Advantech IMC-310I-SFP Transceiver/Media Converter

Tech Specs

Specifications

Manufacturer	Advantech Co., Ltd
Manufacturer Part Number	IMC-310I-SFP-A
Manufacturer Website Address	http://www.advantech.com
Brand Name	Advantech
Product Model	IMC-310I-SFP
Product Name	IMC-310I-SFP Transceiver/Media Converter
Marketing Information	IMC-310I-SFP 10G Medial Converter is equipped with one 10G/5G/2.5G/1G/100M BASE-T auto-negotiation port and one 10GBASE-X SFP+ Slot. IMC-310I-SFP supports 10 x Gigabit Ethernet media converter from copper 10GBASE-T to fiber multi-mode or single-mode. It utilizes a 10BASE-SR or 10GBASE-LR SFP+ transceiver installed in the SFP+ slot to extend distances to servers, switches, and patch panels. IMC-310I-SFP supports transmission distance from 400m up to 80km to facilitate 10G equipment and device deployment.
Product Type	Transceiver/Media Converter

Interfaces/Ports

Media & Performance

Media Type Supported	Twisted Pair Optical Fiber
Fiber Mode Supported	Single-mode Multi-mode
Maximum Distance Supported	80 km
Fiber Optic Cable Core/Cladding Specification	50/125 µm 62.5/125 µm 9/125 µm

I/O Expansions

Total Number of Expansion Slots	1
Expansion Slot Type	SFP+
Number of SFP+ Slots	1

Network & Communication

Ethernet Technology	10 Gigabit Ethernet
Network Technology	10GBase-X 10GBase-T 10GBase-LR 100Base-TX 1000Base-T 2.5GBase-T 5GBase-T 10GBase-SR 10GBase-ER 10GBase-ZR

Power Description

Power Source	AC/DC

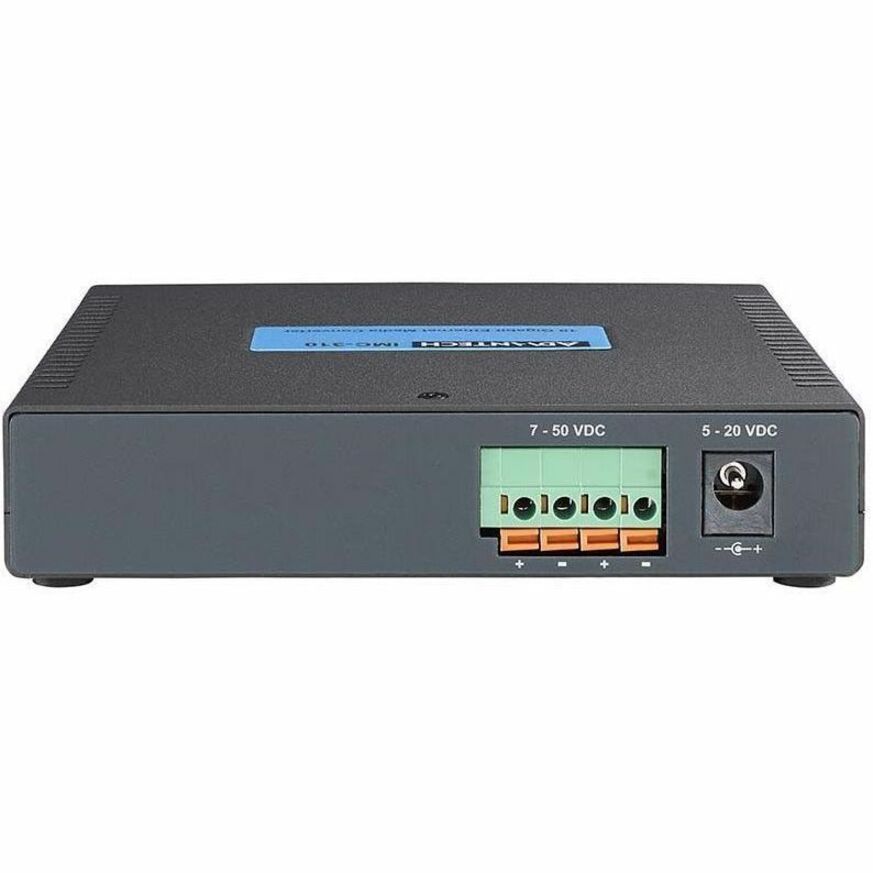

Plug/Connector Type	Terminal Block (4 Wire) DC Jack

Physical Characteristics

Form Factor	DIN Rail Mountable Panel-mountable Standalone
Height	0.9"
Width	4.3"
Depth	4"

Miscellaneous

Application/Usage	Network
Certifications & Standards	IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3bz 2.5G/5GBASE-T IEEE 802.3ae 10Gbps Ethernet IEEE 802.3x full-duplex flow control CE FCC Class A EN61000-4-2 EN61000-4-3 EN61000-4-4 EN61000-4-5 EN61000-4-6 EN61000-4-8 EN61000-4-11 IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6
