STANDARD 8-AXIS DSP-BASED SOFTMOTION CON

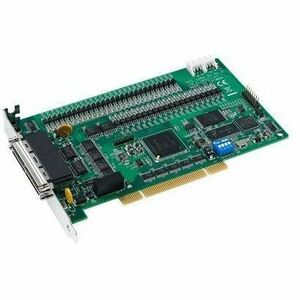

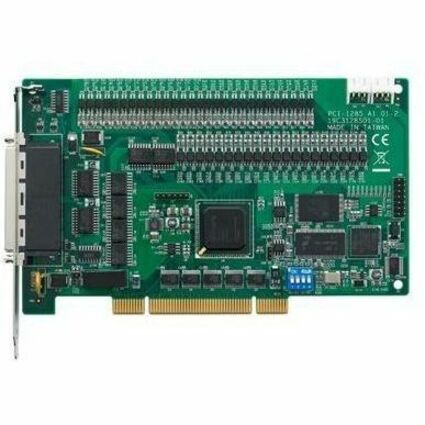

PCI-1285 is a 8-axis universal PCI (supporting both 3.3 V and 5 V signal slot) stepping/pulse-type servo motor control card designed for applications which need to control interpolation, synchronization among multiple axes, continuous contouring, and high speed triggering. PCI-1285 utilizes high-performance DSP and FPGA to calculate motion trajectories, synchronization timing control for multiple axes, and input/output handling to offer functionality, such as up to 4/6 -axis linear interpolation, 2- axis circular interpolation, helical interpolation, T/S-curve acceleration/deceleration rates and so on. In addition, Advantech supplies a Common Motion API library, graphical utility, and user-friendly examples to help decrease programming workloads.

• 5 V
• 3.3 V

Advantech:

• Servo Motor
• Stepper Motor
