15.6IN RK35684G32GFHDW/ STANDA12 BLK

by
ADVANTECH
PCN#
SM8194
MFG#
USC-360DP-BE110
$787.08
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • (Rockchip Cortex A55 RK3568
  • 4 GB
  • 32 GB

Show more

Product Condition: New and Factory Fresh
Shipping Weight: 11 lbs.

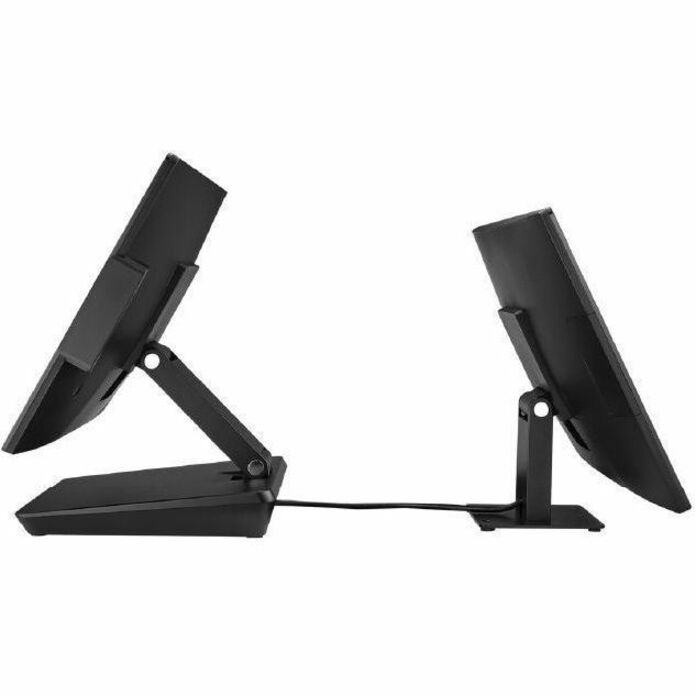

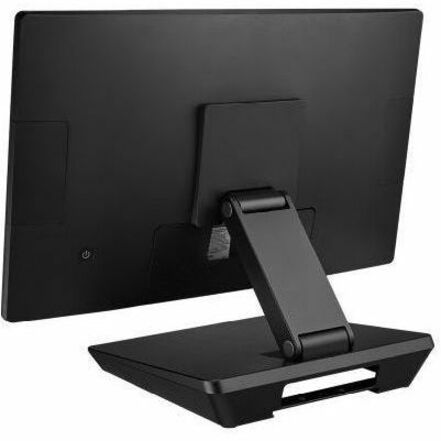

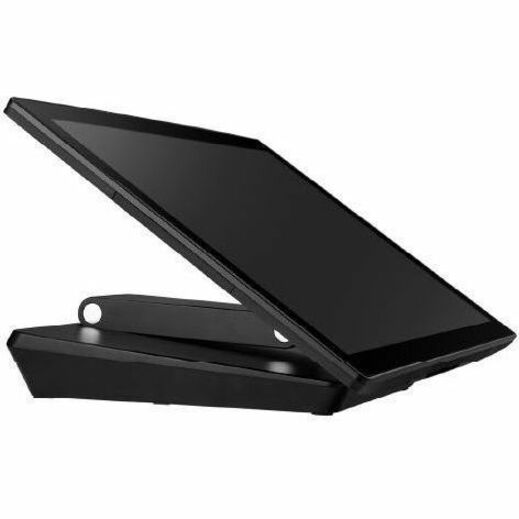

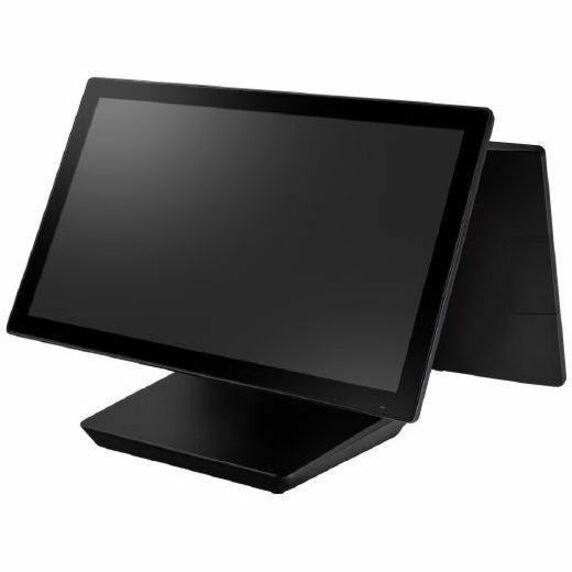

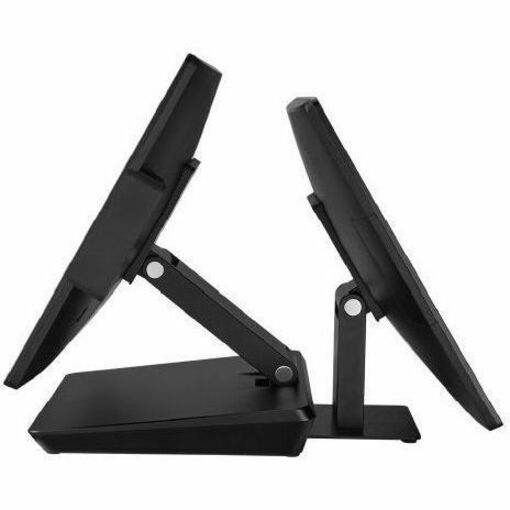

Advantech USC-360D POS Terminal
Tech Specs
Specifications

Manufacturer

Advantech Co., Ltd

Manufacturer Part Number

USC-360DP-BE110

Manufacturer Website Address

http://www.advantech.com

Brand Name

Advantech

Product Series

USC-360

Product Model

USC-360D

Product Name

USC-360D POS Terminal

Marketing Information

The USC-360 all-in-one service computer is the latest addition to Advantech's USC product family and Avalo solution offerings. Powered by an Intel® Celeron® J6412 and Rockchip RK3568 quad-core Cortex™-A55 processor that be with the most competitive cost, and energy effective platform built for retail and hospitality. USC-360 computers feature an ultra-slim form factor to ensure easy installation in diverse environments.

In addition to the 15.6" TFT LCD monitor with IP65-rated front panel that protects against water and dust ingress, USC-360 can be equipped with an optional secondary display for broadcasting product promotions and increasing consumer engagement. Overall, USC-360 computers provide flexible point-of-service (POS) computing solutions that enable retailers and service staff to optimize operations and improve customer service

Product Type

POS Terminal
Technical Information

Form Factor

All-in-One
Processor & Chipset

Processor Manufacturer

Rockchip

Processor Type

Cortex A55

Processor Core

Quad-core (4 Core)

Processor Model

RK3568
Memory

Standard Memory

4 GB
Storage

Flash Memory Capacity

32 GB

Flash Memory Type

Embedded MultiMediaCard (e.MMC)
Display & Graphics

Screen Size

15.6"

Display Screen Type

LED

Screen Mode

Full HD

Touchscreen

Yes

Touchscreen Technology

Projected Capacitive
Network & Communication

Ethernet Technology

Gigabit Ethernet
Interfaces/Ports

USB

Yes

USB Type-C

Yes

Network (RJ-45)

Yes

Number of USB 3.0 Ports (Rear)

2

Number of USB Type C Ports

3

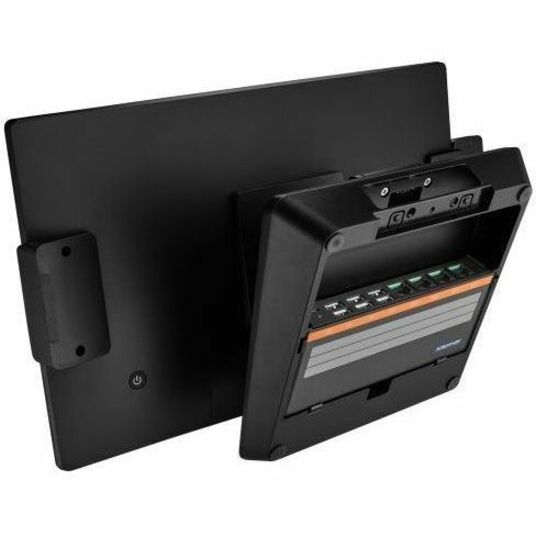

Optional Ports

I/O on extension HUB:

  • UP36 Power USB Hub: 2 x COM, 3 x 12V Power USB, 1 x 24V Power USC, 2 x USB 2.0, 1 x USB C, 1 x DC IN (powered by 180W adapter)
  • UP37 COM Port Hub: 4 x COM (RJ-48 connector), 1 x USB C Input, 6 x USB 2.0 (powered by USC-360 65W adapter)
Built-in Devices

Number of Speakers

2

Speaker Power

2 W
Software

Operating System

  • Android 12
  • Linux
Power Description

Power Source

  • Power Adapter
  • DC Power
Physical Characteristics

Color Family

Black

Product Color

Black

Height

9.1"

Width

15"

Depth

1.2"

Weight (Approximate)

8.82 lb
Miscellaneous

Package Contents

  • USC-360D POS Terminal
  • Adapter
  • Stand

Durability

  • Water Resistant
  • Dust Resistant

Ingress Protection (IP) Rating

IP65

Environmental Compliance

Restriction of Hazardous Substances (RoHS)
