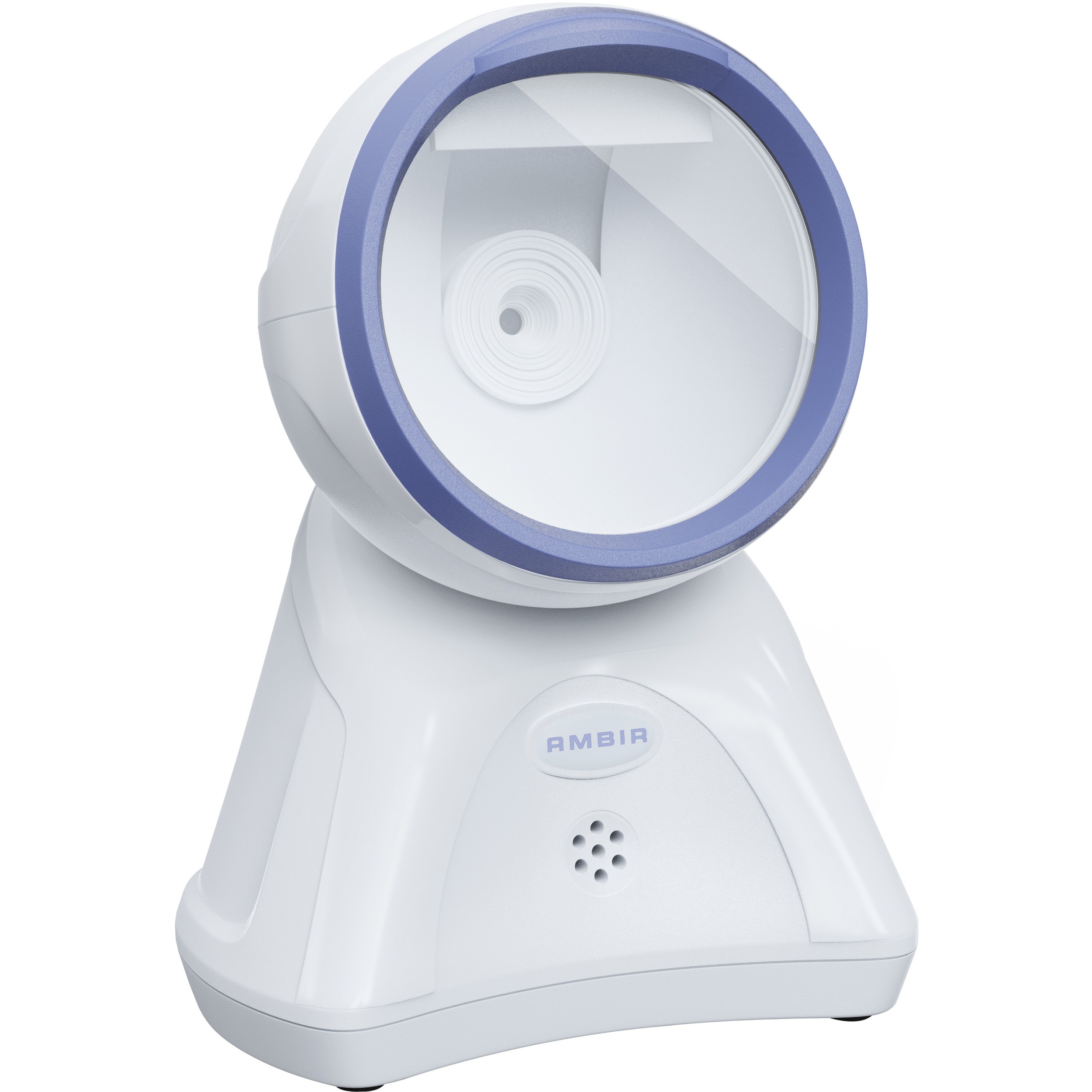

Ambir DB100 Desktop Barcode Scanner/USB

by
AMBIR
PCN#
09WW74
MFG#
DB100-WH
$99.45
cps

Extended & Accidental Damage Product Replacement Plan Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • Cable Connectivity
  • 1D, 2D
  • Imager

Show more

Product Condition: New and Factory Fresh
Limited Warranty2 YearAdditional Warranty Information
Shipping Weight: 2 lbs.
Ambir DB100 Desktop Barcode Scanner/USB
Tech Specs
Specifications

Manufacturer

Ambir Technology, Inc

Manufacturer Part Number

DB100-WH

Manufacturer Website Address

http://www.ambir.com

Brand Name

Ambir

Product Model

DB100-WH

Product Name

DB100 Desktop Barcode Scanner/USB

Marketing Information

Ambir DB100-BL Ambir DB100 Omni-directional Hands-Free Desktop USB Omni-directional 1D, 2D, and QR Barcode Scanner for Windows, Mac, Linux, and Android is designed to handle all your barcode scanning needs. Durable and rugged, the DB100 is engineered to operate in the most demanding environments and requires only a USB connection for installation and use. With its multiple OS support, the Ambir DB100 is a great choice for your current and future barcode scanning needs.
  • Top-tier Versatility in Scanning Multiple Types of Barcodes The Ambir DB100 Omni-directional Desktop USB Barcode scanner is engineered for high-demand/high-volume desktop environments that require constant scanning of QR Codes and 1D, 2D, and PDF417 barcodes.
  • Quality Decoding Capability The Ambir DB100 Omni-directional Desktop USB 2D Barcode Reader offers brilliant decoding capabilities, allowing it to scan barcodes from mobile device screens along with physical media like paper, packaging, and various labels. Delivering speed and versatility, the BD100 can handle damaged, wrinkled, or badly printed barcodes bringing no slow-down to your scanning needs.
  • Reliable Plug and Play Features With the Ambir DB100 Omni-directional Desktop USB Barcode Scanner, you don't need to install drivers, deal with software updates and downloads, or use network service to access the barcode scanner. You only need to connect the scanner via a single USB cable, and you're ready to go.
  • Great Flexibility Aside from the ease USB connectivity gives, this barcode scanner provides superb flexibility for customers and users with Mac, Windows, Android, and Linux devices. They get the freedom to move between platforms as the needs of their business change.

Product Type

Barcode Scanner
Technical Information

Connectivity Technology

Cable

Scanning Capability

  • 1D
  • 2D

Barcode Symbology Supported

1D:
  • All standard 1D codes, including GS1 DataBarâ„¢ linear code can be automatically distinguished and decoded
2D:
  • Aztec Code; Data Matrix; MaxiCode; QRCode; HANXIN; MicroQR Code.
Stack code:
  • GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; GS1 DataBar Composite; MicroPDF417; PDF417

Image Sensor Type

Imager

Scan Pattern

Omni-directional

Reading Angle (Skew)

60°

Reading Angle (Pitch)

360°

Reading Angle (Roll)

60°

Maximum Ambient Light

100000 lux

Minimum Print Contrast

15%

Minimum Element Resolution (PDF417)

5 mil

Maximum Element Resolution (PDF417)

10 mil
Interfaces/Ports

Host Interface

USB
Physical Characteristics

Form Factor

Desktop

Rugged

Yes

Product Color

  • White
  • Blue

Height

6.5"

Width

4"

Length

4.4"

Weight (Approximate)

11.20 oz
Miscellaneous

Compatibility

Ambir Thermal Label Printers

Ingress Protection (IP) Rating

IP52

Platform Supported

  • PC
  • Smartphone
  • Mac
Warranty

Limited Warranty

2 Year

Additional Warranty Information
