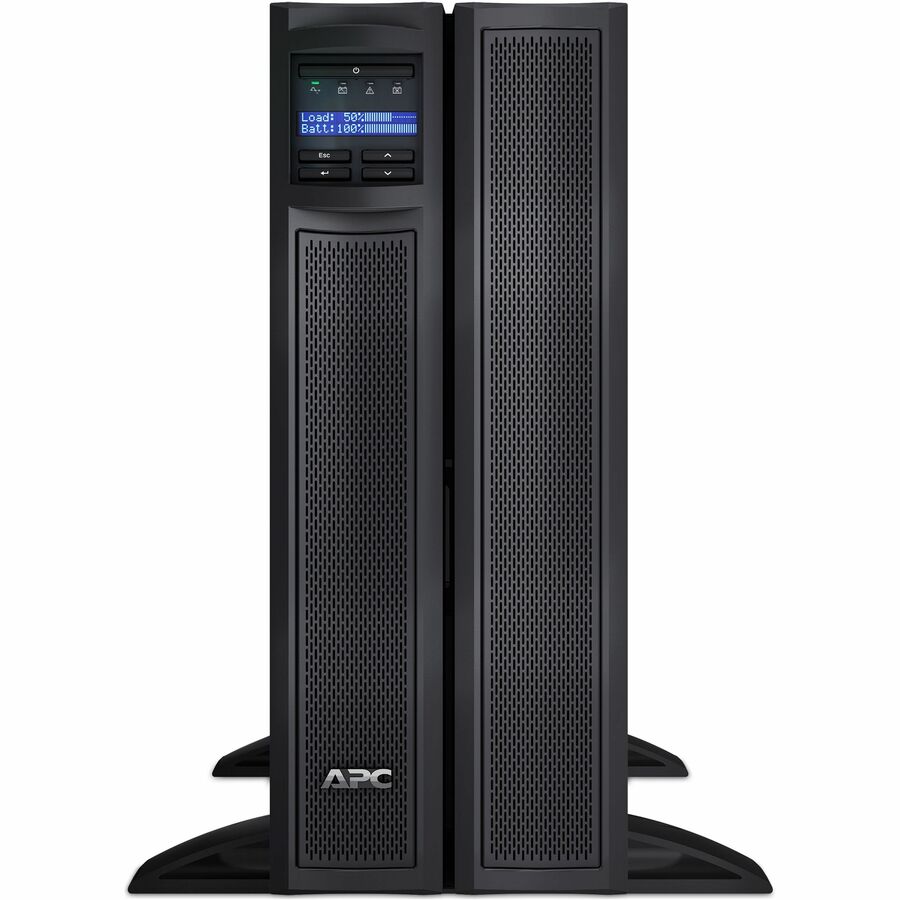

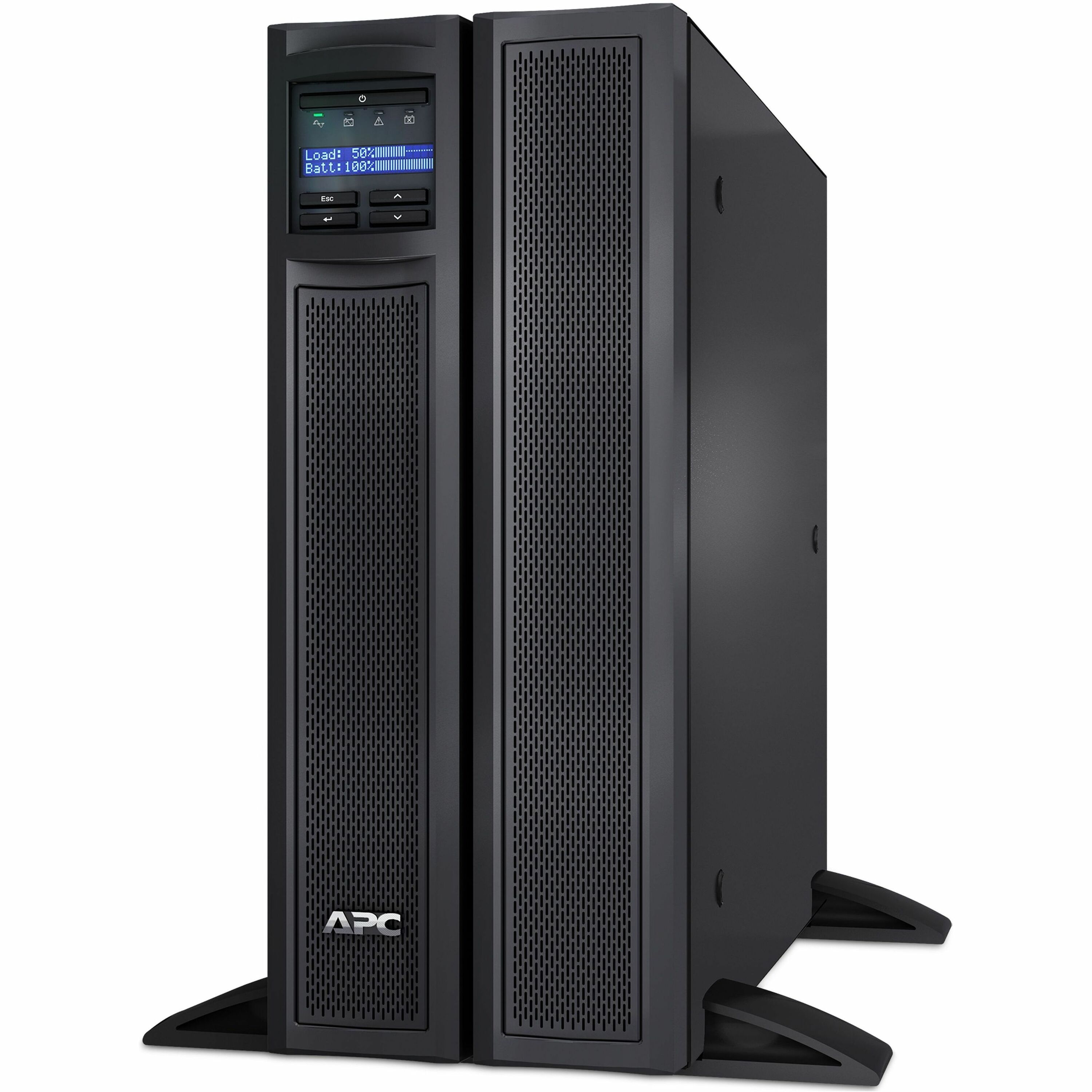

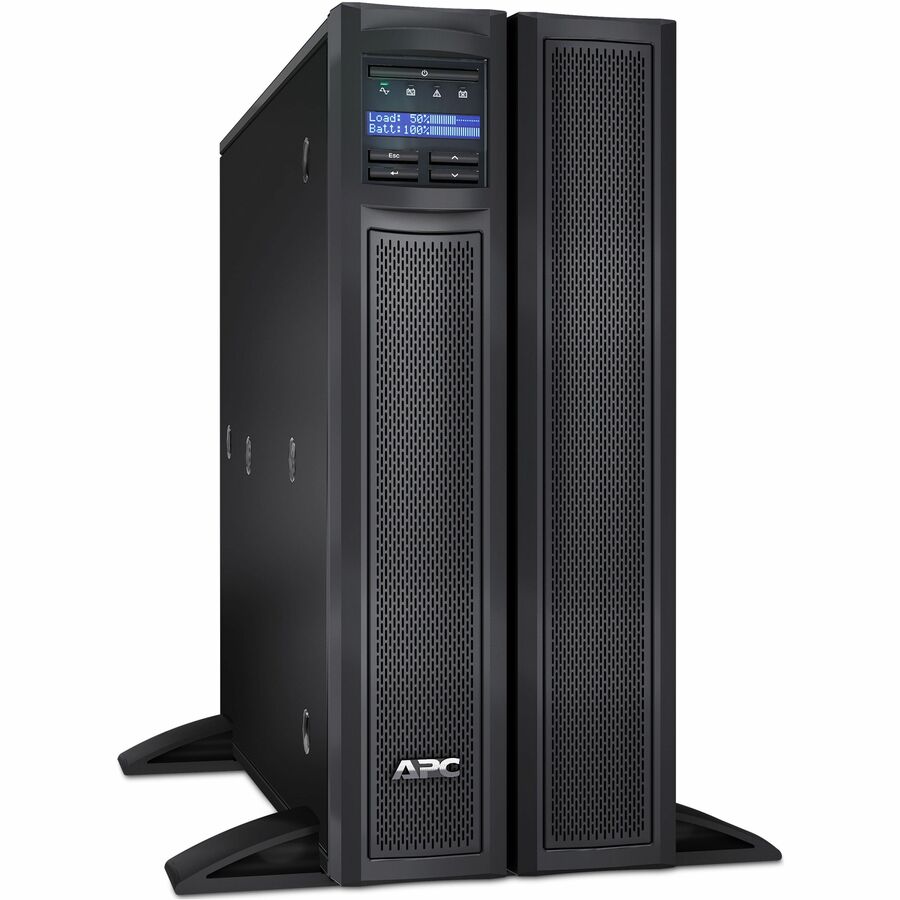

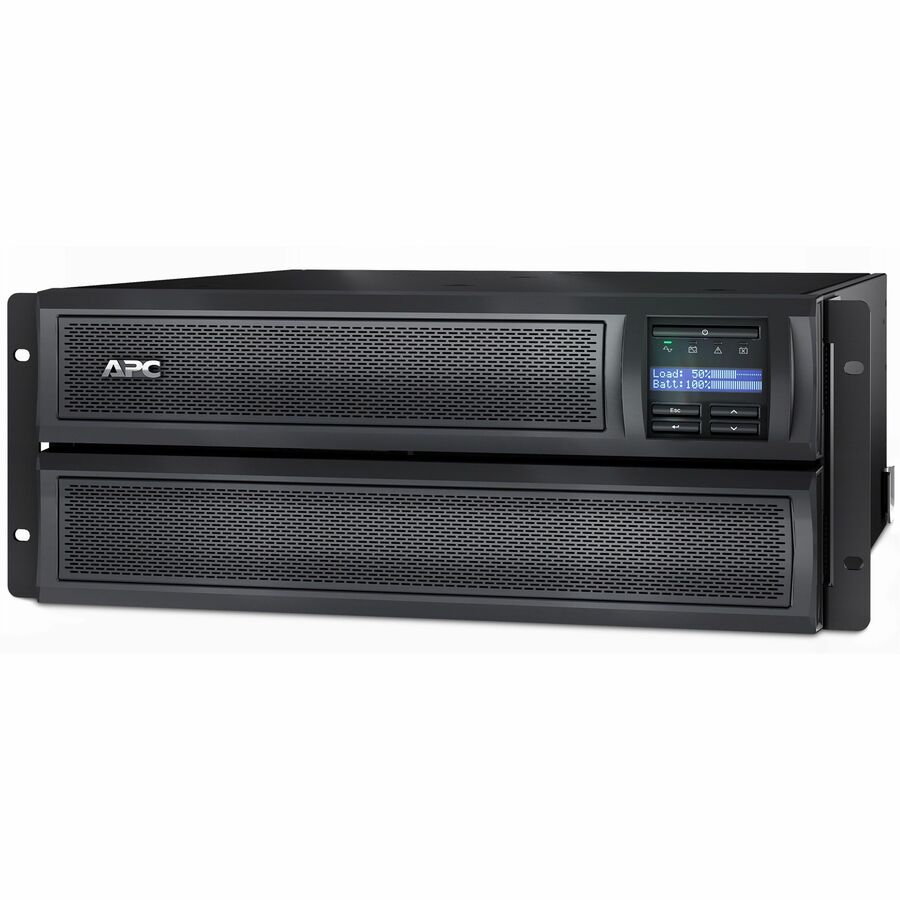

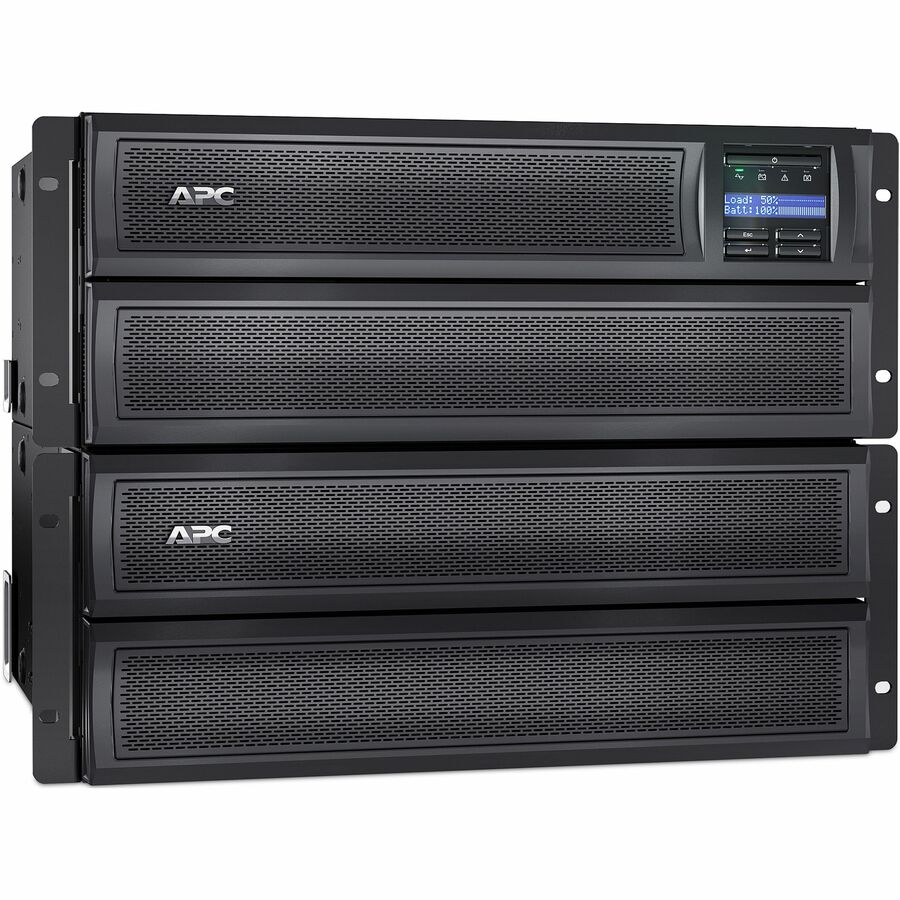

APC by Schneider Electric Smart-UPS X 3000VA Short Depth Tower/Rack Convertible LCD 208V

Name: APC by Schneider Electric Smart-UPS X 3000VA Short Depth Tower/Rack Convertible LCD 208V
Brand: APC
SKU: RM5898
Price: 2333.72 USD
Availability: InStock

APC

PCN#

RM5898

MFG#

SMX3000HVT

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$2,333.72

Extended & Accidental Damage Protection Plans Available Details

2-Year $168.99

3-Year $225.99

Estimated Shipment:

Product Highlights:

4U Rack
mountable, Rack
mountable
3 Hour Recharge
6.30 Minute Stand
by
208 V Input
208 V AC Output
Sine Wave
Serial Port
USB
2 x IEC 320
C19, 2 x NEMA L6
20R, 3 x IEC Jumper, 4 x IEC 320
C13 Receptacle(s)
11 x Battery/Surge Outlet

Product Condition: New and Factory Fresh

Limited Warranty3 YearAdditional Warranty Information3 years repair or replace (excluding battery) and 2 years for battery, optional on-site warranties available, optional extended warranties available

Shipping Weight: 150 lbs.

APC Smart-UPS X, Line Interactive, 3kVA, Rack/tower convertible 4U, 208V, 2x NEMA L6-20R+4x IEC C13+2x IEC C19, SmartSlot,Extended runtime,Short depth

Overview

Tech Specs

Specifications

Manufacturer	Schneider Electric SA
Manufacturer Part Number	SMX3000HVT
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC by Schneider Electric
Product Line	Smart-UPS
Product Series	X
Product Name	Smart-UPS X 3000VA Short Depth Tower/Rack Convertible LCD 208V
Marketing Information	This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 3kVA line interactive 4U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA L6-20P input, 2x NEMA L6-20R, 4x IEC 320 C13 and 2x IEC 320 C19 outlets. The UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.
Product Type	Line-interactive UPS

Technical Information

Plug/Connector Type	NEMA L6-20P
Receptacle Type	NEMA L6-20P

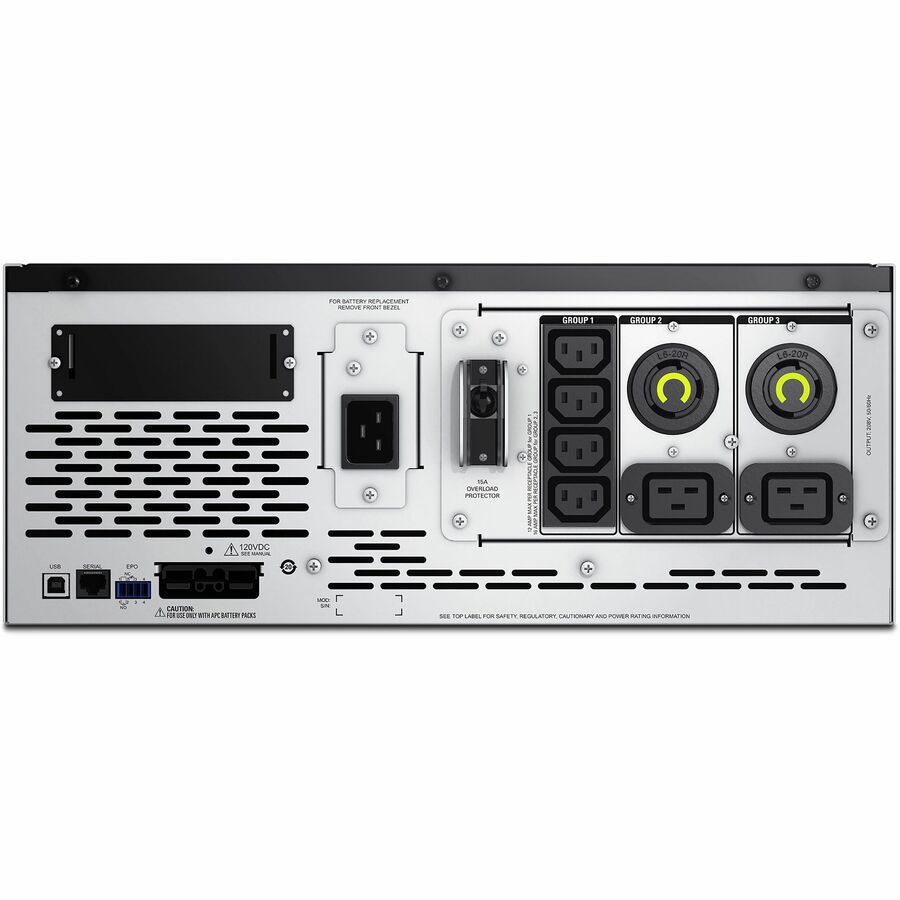

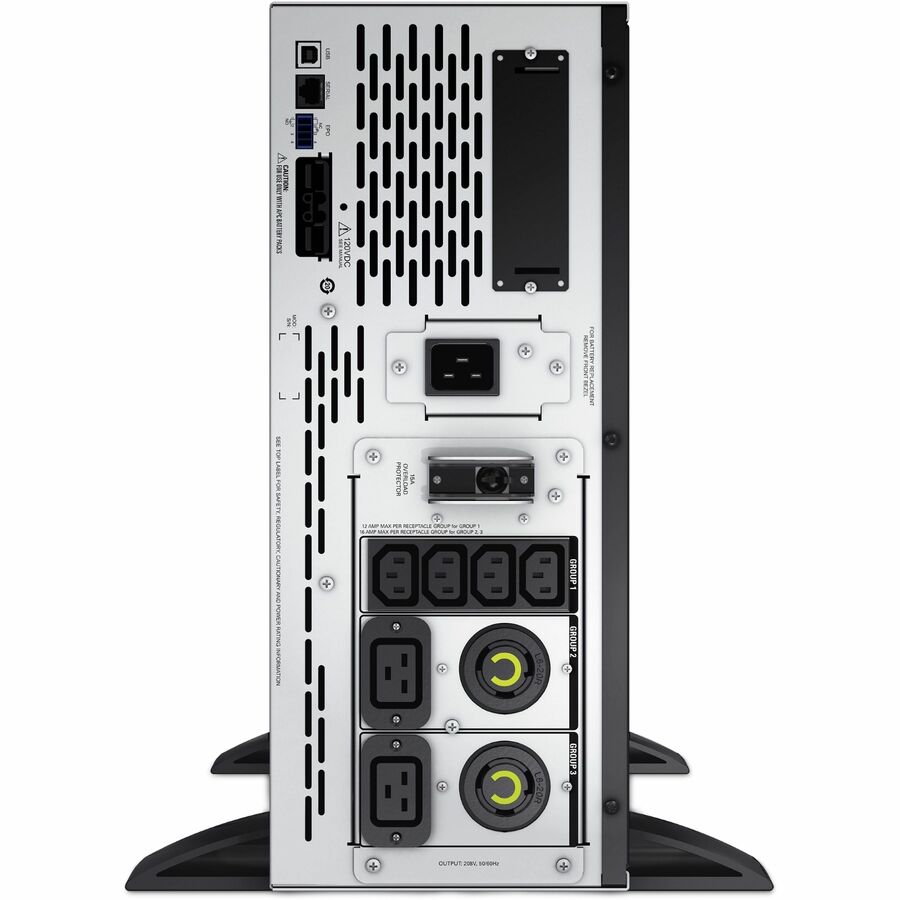

Receptacle Detail	2 x IEC 320-C19 2 x NEMA L6-20R 3 x IEC Jumper 4 x IEC 320-C13
Number of Battery & Surge Outlets	11
Protection Type	Surge
Emergency Power OFF	Yes
Cord Length	6 ft

Power Description

Load Capacity (VA)	3000 VA
Load Capacity (Watt)	2700 W
Input Voltage	208 V
Output Voltage	208 V AC
Waveform Type	Sine Wave
Surge Energy Rating	645 J
Circuit Breaker	Yes

Management

Alarm

Low Battery
On Battery
Configurable Delay

Controls/Indicators

Status Indicators

LED status display with On Line : On Battery : Replace Battery and Overload indicators

Interfaces/Ports

Serial Port	Yes
USB	Yes
Total Number of Expansion Slots	1

Battery Information

Number of Batteries	1
Battery Characteristics	Maintenance-free, Sealed, Spill-proof
Battery Chemistry	Lead Acid
Backup/Run Time (Full Load)	6.30 Minute
Backup/Run Time (Half Load)	15.70 Minute
Typical Battery Recharge Time	3 Hour
Hot Swappable	Yes

Environmental Conditions

Maximum Operating Temperature	113°F (45°C)
Sound Emission (A-Weighted)	55 dB(A)
Thermal Dissipation	53.93 W

Physical Characteristics

Color Family	Black
Product Color	Black
Height	17"
Width	7"
Depth	19"
Rack Height	4U
Form Factor	Rack-mountable
Mounting Preference	Lower
Mounting Location	Front
Weight (Approximate)	85.19 lb

Miscellaneous

For Country/Region	United States
Package Contents	Smart-UPS X 3000VA Short Depth Tower/Rack Convertible LCD 208V CD with software Documentation CD Rack mounting brackets Smart UPS signalling RS-232 cable USB cable User manual
Certifications & Standards	C-tick\|CE\|CSA\|GOST\|IRAM\|VDE
Software Included	Powerchute Serial Edition
Optimized Energy Efficiency	Yes
Product Take Back Program	Yes
Mercury Free	Yes
RoHS Exemption Information	https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMX3000HVT_ROHS_DECLARATION&p_FileName=SMX3000HVTKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=384166980&lang=en-us
EU RoHS Declaration URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=384166980&lang=en-us
Environmental Profile Availability	https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612029_EN
End of Life Manual Availability	https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612029_EN
California Proposition 65 Warning	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
REACH free of SVHC	No
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty	3 Year
Additional Warranty Information	3 years repair or replace (excluding battery) and 2 years for battery, optional on-site warranties available, optional extended warranties available
