NETROPY 10G2-1G 1GBPS NETWORK EMULATION HARDWARE 4PSUPGRADABLE

The Netropy 10G2 is the 1 Gbps version of the Netropy 10G2 network emulator.

Netropy network emulators simulate WAN bandwidth, latency, jitter, loss, congestion, and other network impairments to test the performance of applications in the lab.

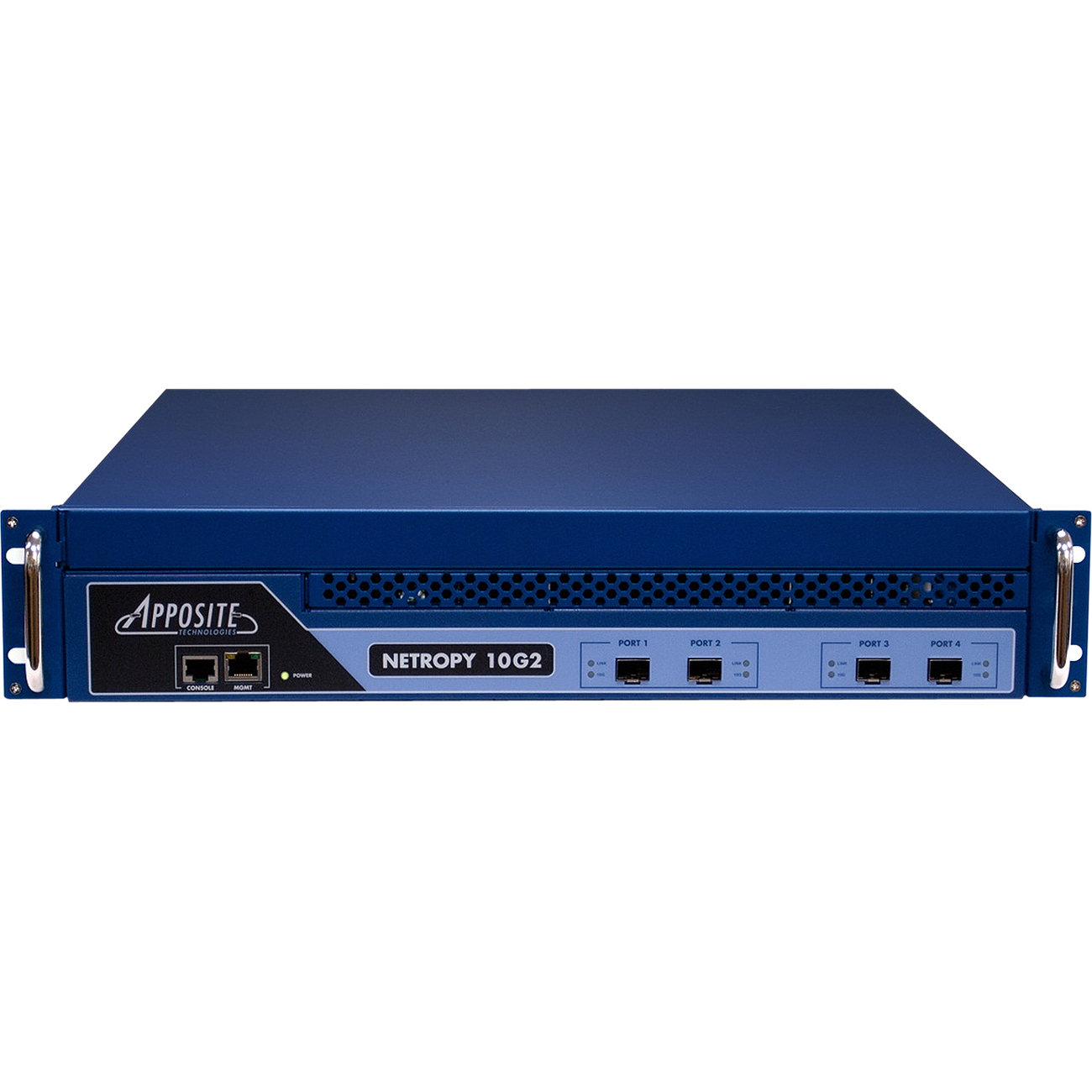

The 10G2 model has two pairs of 10 Gbps SFP+ ports and a total capacity of 40 Gbps. It includes 2 separate emulation engines to model complex network topologies or run multiple concurrent tests. Each Emulation Engine offers the ability to filter packets onto 15 separate virtual WAN links, making it easy to simulate a large number of high-speed links using a single emulation device.

With this 1 Gbps version, each of the 30 separate WAN links can be configured to any bandwidth up to 1 Gbps in each direction. Packets that are not subject to WAN impairment are forwarded at the full 10 Gbps capacity of the system.

To simulate links of over 1 Gbps each, please refer to p/n N10G2-10G instead.

The 4 SFP+ ports offer 1/10 Gbps dual rate capability, supporting both 10 Gbps SFP+ and 1 Gbps SFP for easy installation onto any type of 1 or 10 Gbps network.

The Netropy 10G2 is configured and managed through an intuitive, browser-based interface for easy operation, or through a comprehensive command line interface for integration with test automation tools.

• Max. Link Emulation Speed: 1 Gbps
• 15 separate links per emulation engine
• Packets assigned to individual link by any combination of IP address, VLAN, MPLS label, port number, or any other packet field
• 40 Gbps aggregate capacity
• Four 1/10 Gbps SFP+ ports
