Areca Thunderbolt 2 to 12Gb/s SAS RAID Controller

by
ARECA
PCN#
6925AG
MFG#
ARC-4883T2
$1,144.76
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • 12Gb/s SAS
  • Thunderbolt
  • External

Show more

Product Condition: New and Factory Fresh
Shipping Weight: 4 lbs.

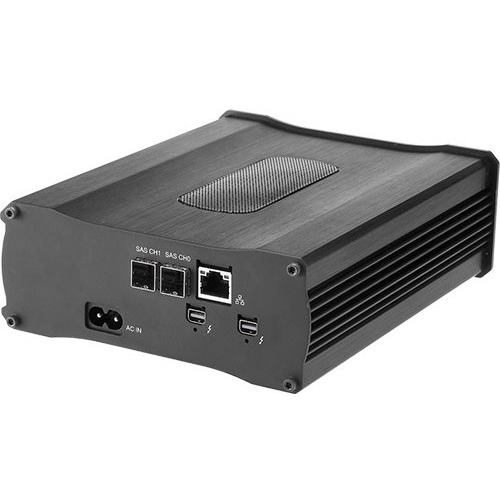

Areca Thunderbolt 2 to 12Gb/s SAS RAID Controller
Tech Specs
Specifications

Manufacturer

Areca Technology Corp.

Manufacturer Part Number

ARC-4883T2

Manufacturer Website Address

http://www.areca.us

Brand Name

Areca

Product Name

Thunderbolt 2 to 12Gb/s SAS RAID Controller

Marketing Information

ARC-4883T2 is the most complete Thunderbolt 2 to 12Gb/s SAS box with RAID control capabilities solution for both PC and Mac. ARC-4883T2 is equipped with dual Thunderbolt 2 ports for connecting to any Thunderbolt 2-enabled host such as the new Mac Pro, and offers an additional Thunderbolt 2 port for daisy-chaining other peripherals. ARC-4883T2 incorporated on-board dual core 1200Mhz RAID-On- Chip and with 2GB DDR3-1866 memory to deliver true high performance hardware RAID protection against drive failure. This combination helps to provide a high performance storage device perfect for the video editor working with Real time multi-stream HD and 4K workflows. It runs efficiently without disruption or major drops in performance to meet the requirements of 4K data workflow. It is so quick it allows for 4K displays at the same time as daisy chaining ARC-4883T2 and doing a simultaneous 4K output and file transfers while maintaining maximum throughput.

Product Type

Thunderbolt/SAS Controller
Technical Information

Host Interface

Thunderbolt

Controller Type

12Gb/s SAS

RAID Supported

Yes

RAID Levels

  • 0
  • 1
  • 1E
  • 3
  • 5
  • 6
  • 10
  • 30
  • 50
  • 60
  • JBOD
Memory

Cache Memory

1 MB
Interfaces/Ports

Total Number of SAS Ports

2

SAS Connector Details

8 x SFF-8644

Number of Thunderbolt 2 Ports

2
Physical Characteristics

Height

5"

Width

2.1"

Depth

6.4"

Form Factor

External

Weight (Approximate)

2.64 lb
Miscellaneous

Platform Supported

  • PC
  • Mac
