ASUS PB63 BAREBONE MINI PC INTEL CORE I3-14100 PROCESSOR DDR5

Name: ASUS PB63 BAREBONE MINI PC INTEL CORE I3-14100 PROCESSOR DDR5
Brand: ASUS
SKU: SM5409
Price: 443.17 USD
Availability: InStock

ASUS

PCN#

SM5409

MFG#

PB63-BB3000XTLR-O

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$443.17

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

Intel B760 Chip
32 GB DDR5 SDRAM DDR5
5600/PC5
44800 Maximum RAM Support
2 Total Memory Slots
NVMe, Serial ATA Controller
Intel
Bluetooth 5.2
DisplayPort
Network (RJ
45)
2 M.2 Interface(s)
Gigabit Ethernet
Windows 11 Pro, Windows 11 Home Supported Operating System
2 USB 3.2 Gen 1 Port(s)
150 W

Product Condition: New and Factory Fresh

Shipping Weight: 6 lbs.

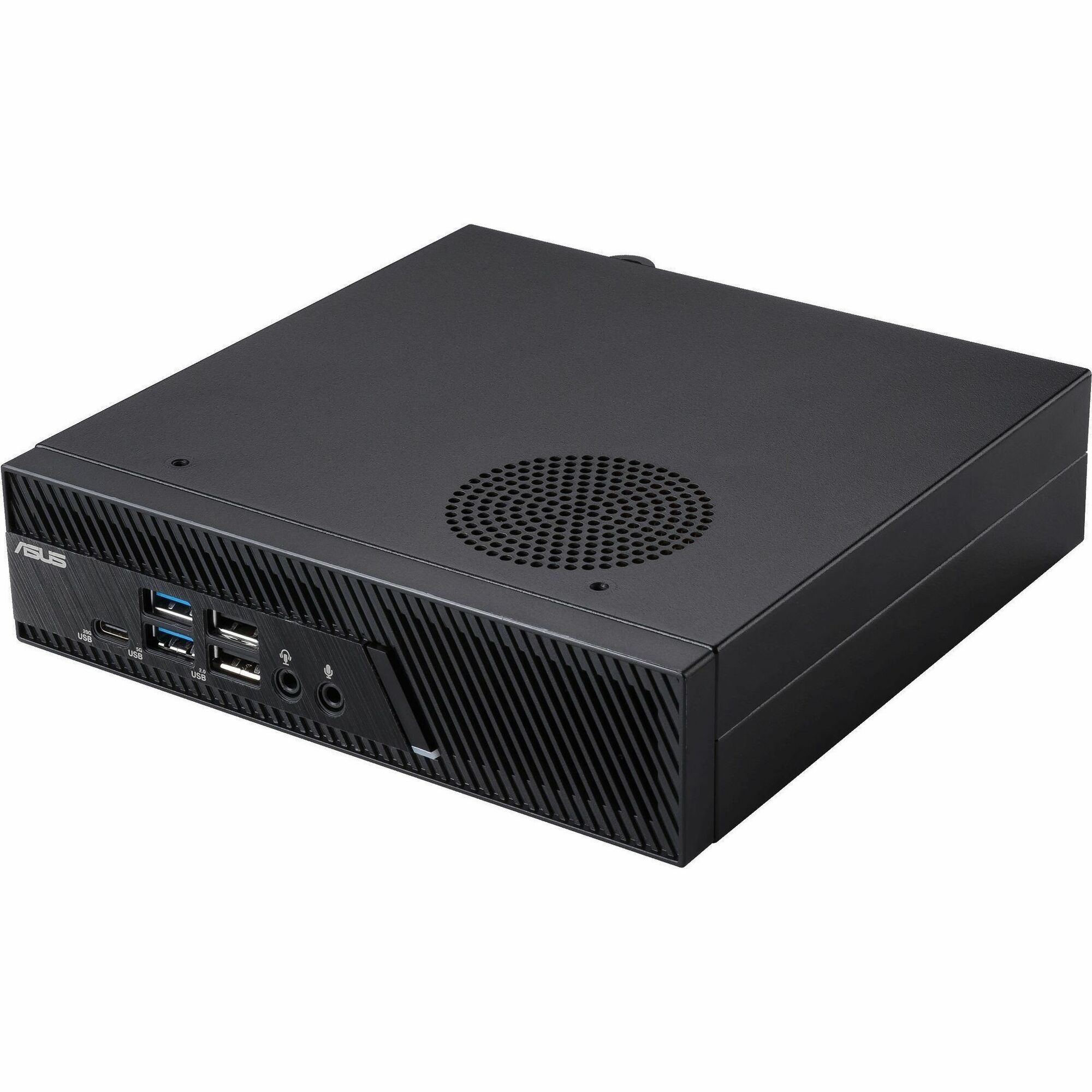

Asus PB63-BB3000XTLR-O Barebone System - Mini PC - Intel Core i3 14th Gen i3-14100

Overview

Tech Specs

Specifications

Manufacturer	ASUS Computer International
Manufacturer Part Number	PB63-BB3000XTLR-O
Manufacturer Website Address	http://usa.asus.com
Brand Name	Asus
Product Series	PB63
Product Model	PB63-BB3000XTLR-O
Product Name	PB63-BB3000XTLR-O Barebone System

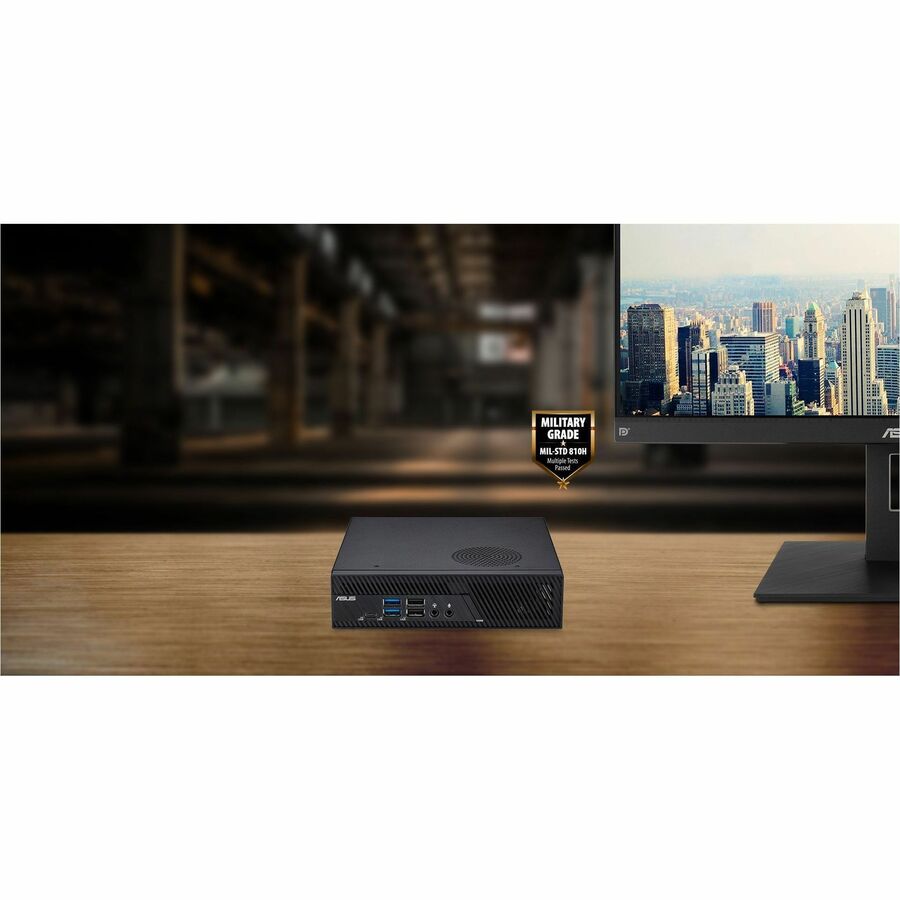

Marketing Information	Solid reliability for your business ASUS ExpertCenter PB63 is a durable, versatile and powerful PC suited to a range of business applications, including signage, point-of-sales (POS) systems, kiosks and intelligent vending machines. Powered by the latest Intel® 14th Generation Core™ with Intel® UHD Graphics processors, PB63 delivers desktop-grade performance in a compact size, with supports the next gen memory - DDR5. To cater to diverse demands, PB63 supports a 46 to 65 watt CPU - so it's easy to spec for supreme efficiency or maximum performance. Comprehensive connectivity with eight USB ports and support for up to three 4K UHD displays means PB63 is perfect for almost any business scenario. It's also tested to the latest MIL-STD-810H military standard to ensure it's ready for harsh environments.
Product Type	Barebone System

Processor

Processor Manufacturer	Intel
Processor Type	Core i3
Processor Generation	14th Gen
Processor Model	i3-14100
64-bit Processing	Yes

Chipset

Chipset Manufacturer	Intel
Chipset Model	B760

Memory

Maximum Memory Supported	32 GB
Memory Technology	DDR5 SDRAM
Memory Standard	DDR5-5600/PC5-44800
Total Number of Memory Slots	2

Storage

Supported Storage Drive Interfaces	PCI Express 4.0 x4 Serial ATA
Supported Storage Drive Types	SSD

Controllers

Controller Type

NVMe
Serial ATA

Display & Graphics

Graphics Controller Manufacturer	Intel
Graphics Memory Technology	DDR5 SDRAM
Graphics Memory Accessibility	Shared

Network & Communication

Ethernet Technology	Gigabit Ethernet
Wireless LAN	Yes
Bluetooth	Yes
Bluetooth Standard	Bluetooth 5.2

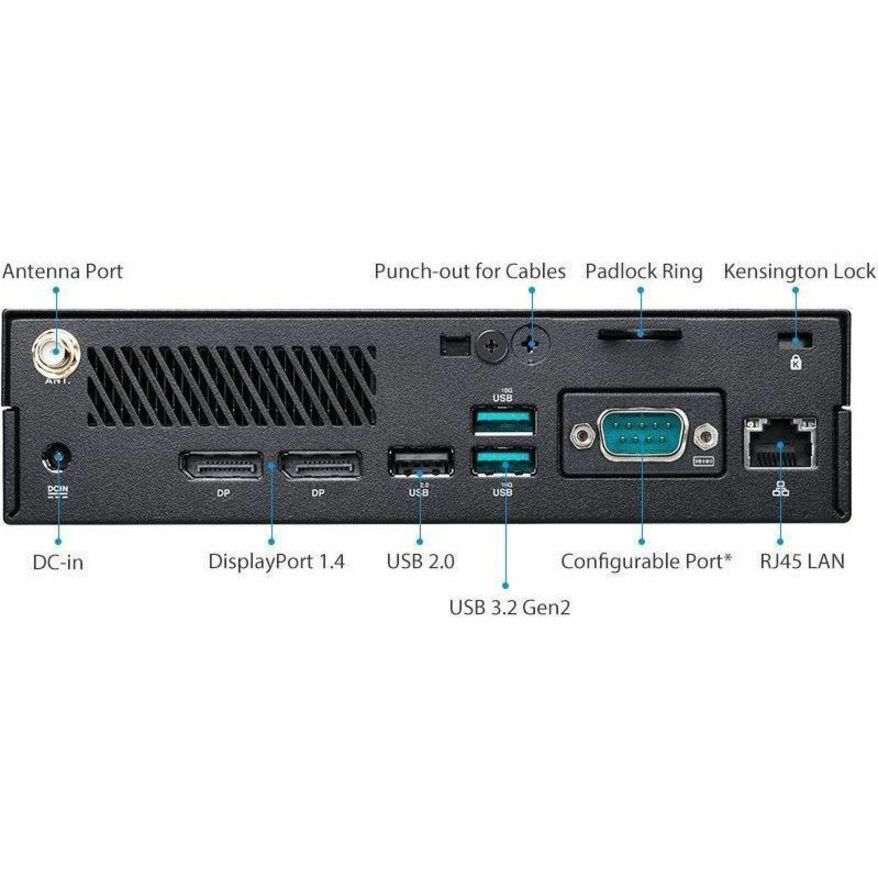

I/O Expansions

Number of M.2 Interfaces

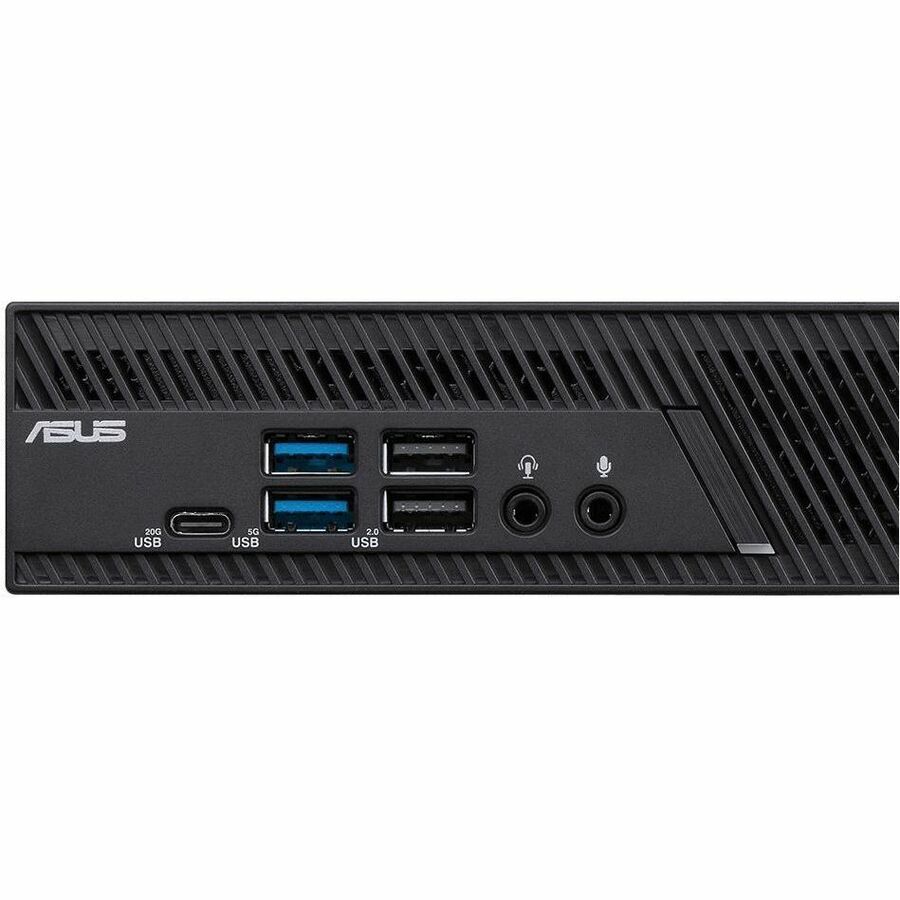

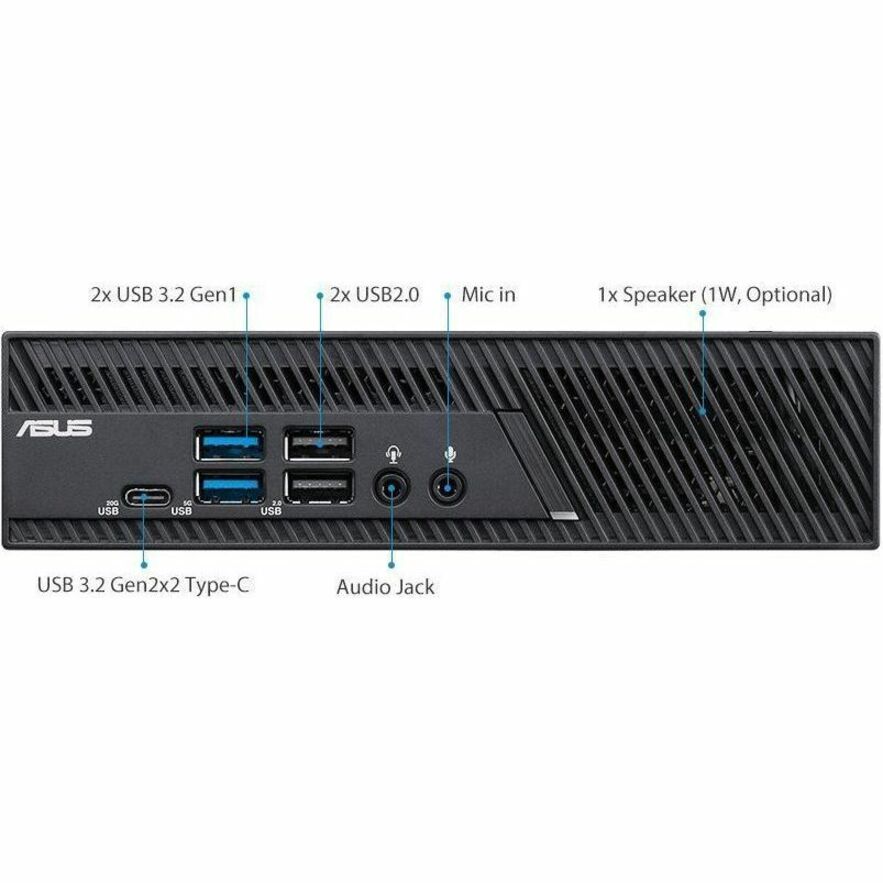

Interfaces/Ports

Total Number of USB Ports	8
Number of USB 3.2 Gen 1 Ports	2
Number of USB 3.2 Gen 2 Type-A Ports	2
USB Type-C (Front)	Yes
USB Type-C Detail	1 x USB 3.2 Gen2x2 Type-C
Network (RJ-45)	Yes
Number of Network (RJ-45) Ports	1
DisplayPort	Yes

Operating System

Operating System Supported

Windows 11 Pro
Windows 11 Home

Power Description

Maximum Power Supply Wattage

150 W

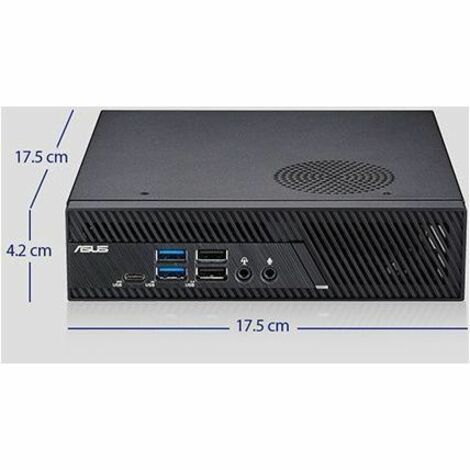

Physical Characteristics

Color Family	Black
Product Color	Black
Form Factor	Mini PC
Height	1.7"
Width	6.9"
Depth	6.9"
Weight (Approximate)	2.60 lb

Miscellaneous

Package Contents	PB63-BB3000XTLR-O Barebone System AC Adapter Power Cord Screw Pack User Manual Warranty Card Wi-Fi Antenna

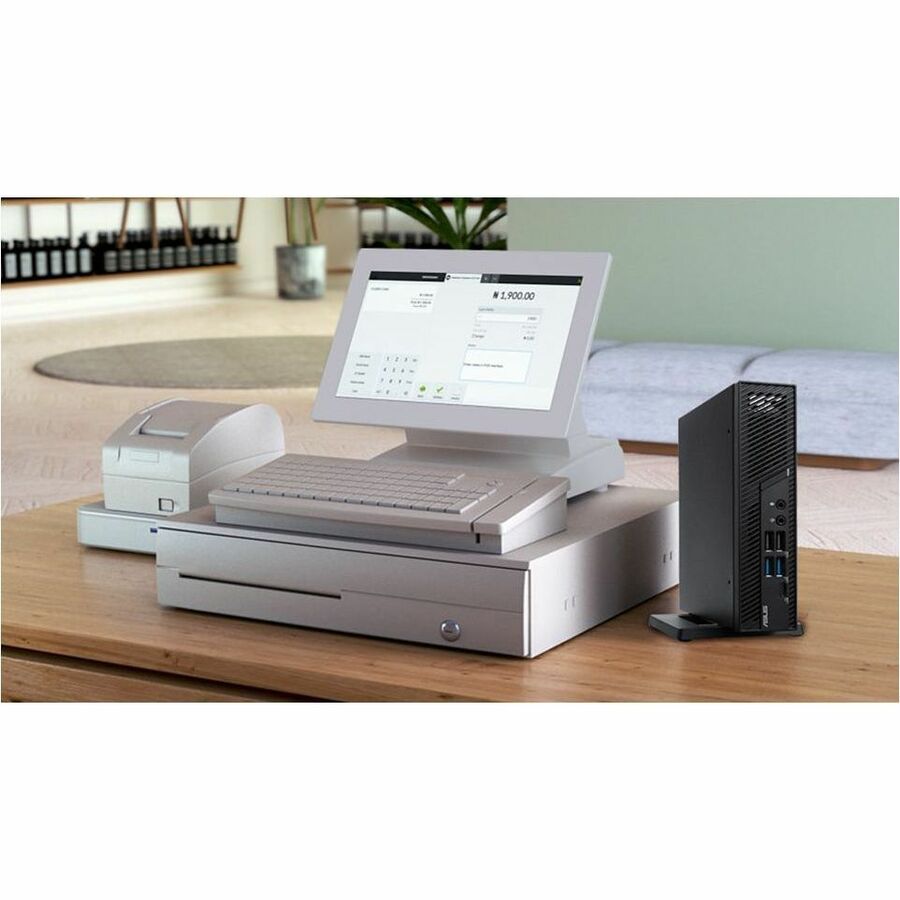

Application/Usage	Digital Signage POS System Kiosk
Energy Star	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
