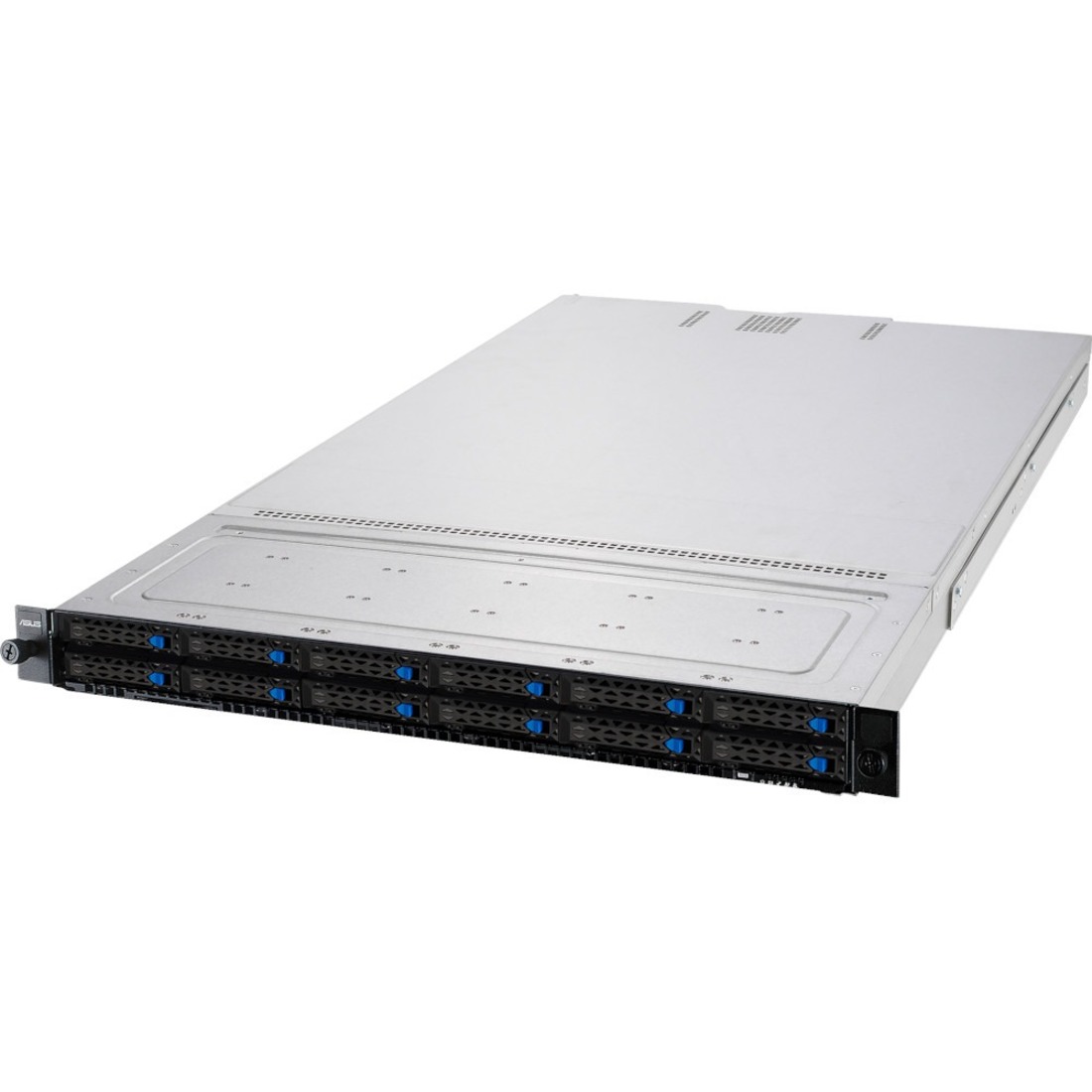

Asus RS700-E10-RS12U Barebone System - 1U Rack-mountable - Socket LGA-4189 - 2 x Processor Support

Name: Asus RS700-E10-RS12U Barebone System - 1U Rack-mountable - Socket LGA-4189 - 2 x Processor Support
Brand: ASUS
SKU: 1560BF
Price: 2279.7 USD
Availability: InStock

ASUS

PCN#

1560BF

MFG#

RS700-E10-RS12U-WOCPU006Z

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$2,279.70

Extended & Accidental Damage Protection Plans Available Details

2-Year $168.99

3-Year $225.99

Estimated Shipment:

Product Highlights:

Intel C621A Chip
1 TB DDR4 SDRAM DDR4
3200/PC4
25600 Maximum RAM Support
32 Total Memory Slots
Serial ATA/600 RAID Supported, 12Gb/s SAS Controller 64 MB Graphic(s)
2 SATA Interface(s)
Processor Support (Xeon Bronze, Xeon Silver, Xeon Gold, Xeon Platinum)
Gigabit Ethernet, 10 Gigabit Ethernet
Intel Optane Memory Ready
2
3 Year

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 55 lbs.

Asus RS700-E10-RS12U Barebone System - 1U Rack-mountable - Socket LGA-4189 - 2 x Processor Support

Overview

Tech Specs

Specifications

Manufacturer	ASUS Computer International
Manufacturer Part Number	RS700-E10-RS12U-WOCPU006Z
Manufacturer Website Address	http://usa.asus.com
Brand Name	Asus
Product Model	RS700-E10-RS12U
Product Name	RS700-E10-RS12U Barebone System
Marketing Information	1U dual-socket server powered 3rd Gen Intel Xeon Scalable processors that supports up to 32 DIMMs, one dual-slot GPU, 12 NVMe, four PCIe lots, one OPC 3.0, one M.2 and ASUS ASMB10-iKVM. Powered by dual-socket 3rd Gen Intel Scalable processors, with 32 DIMMs and support for a maximum TDP of up to 270 W per socket GPU-optimized design allows one dual-slot GPU for AI workloads Up to 12 all-flash NVMe drives on front panel to enable extensive storage and high-throughput performance Up to three PCIe® 4.0 slots to enable higher bandwidth and improved data-transfer rates Flexible onboard LAN-module design to enable four 1 Gb LAN or two 10 Gb LAN options Flexible air- and liquid-cooling solution to achieve lower power-usage effectiveness (PUE) and optimized TCO for data centers Onboard ASUS ASMB10-iKVM for out-of-band management with ASPEED AST2600 controller Integrated PFR FPGA as the platform Root-of-Trust solution for firmware resiliency High power efficiency with redundant 1600 W or 1200 W 80 Plus® Titanium/Platinum power supplies
Product Type	Barebone System

Processor

Number of Processors Supported	2
Processor Socket	Socket LGA-4189
Processor Supported	Xeon Bronze Xeon Silver Xeon Gold Xeon Platinum
64-bit Processing	Yes

Chipset

Chipset Manufacturer	Intel
Chipset Model	C621A

Memory

Maximum Memory Supported	1 TB
Memory Technology	DDR4 SDRAM
Memory Standard	DDR4-3200/PC4-25600
Total Number of Memory Slots	32
Intel Optane Memory Ready	Yes

Storage

Supported Storage Drive Interfaces

Serial ATA III
SAS

Controllers

Controller Type	Serial ATA/600 12Gb/s SAS
RAID Supported	Yes

Display & Graphics

Graphics Memory Capacity

64 MB

Network & Communication

Ethernet Technology

Gigabit Ethernet
10 Gigabit Ethernet

I/O Expansions

Number of Total Expansion Bays	12
Number of PCI Slots	4
Number of PCI Express x8 Slots	1
Number of PCI Express x16 Slots	3

Interfaces/Ports

Total Number of USB Ports	4
Number of USB 3.1 Gen 1 Ports	2
Number of SATA Interfaces	2
Number of VGA Ports	2

Power Description

Number of Power Supplies Installed

Physical Characteristics

Form Factor	Rack-mountable
Rack Height	1U
Height	1.7"
Width	17.3"
Depth	33.2"
Weight (Approximate)	30.20 lb

Miscellaneous

Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

3 Year
