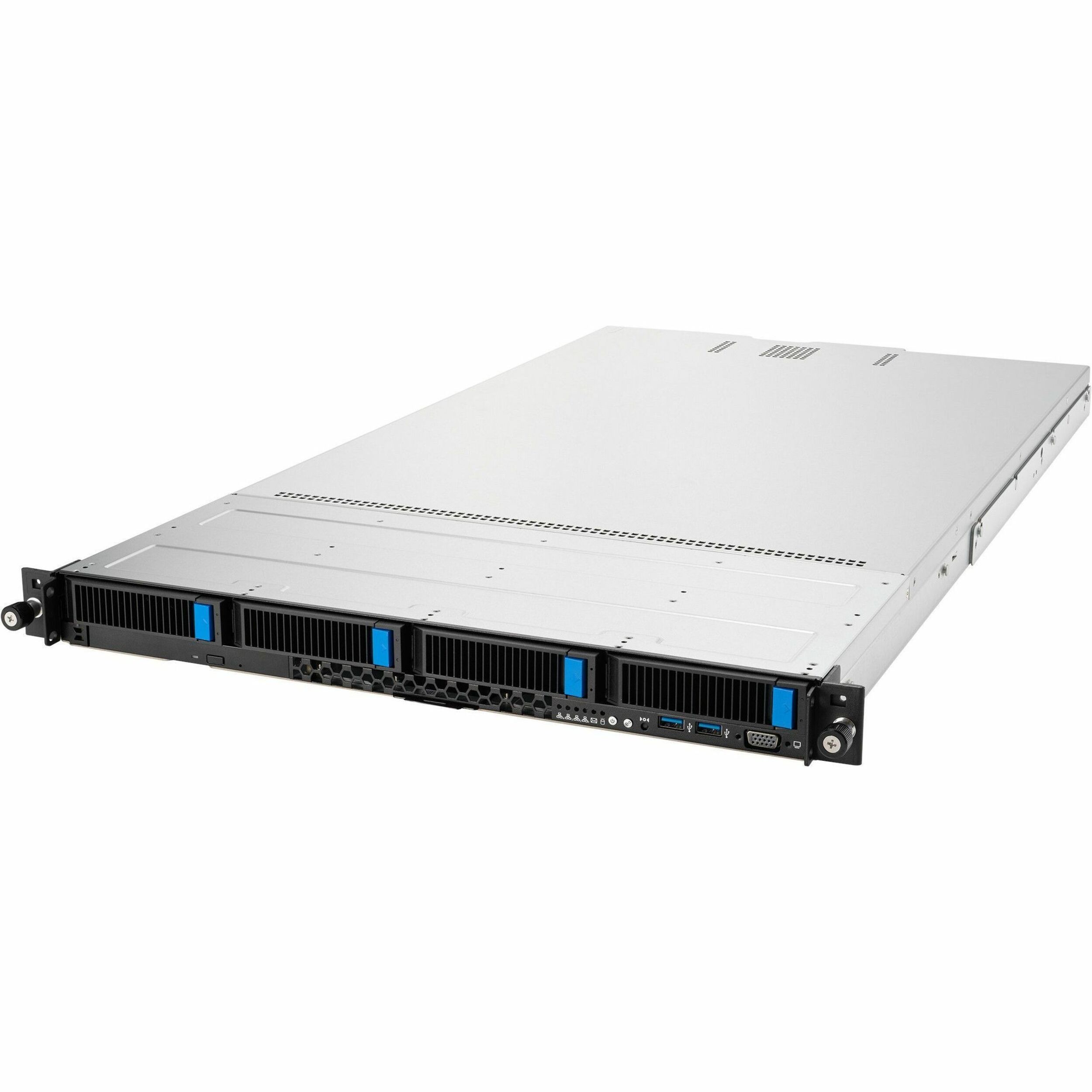

Asus Barebone System - 1U Rack-mountable - Socket LGA-4677 - 2 x Processor Support

RS700-E11-RS4U | 1U dual-socket server powered by 4th Gen Intel Xeon Scalable processors that supports 32 DIMMs, 4 PCIe 5.0 slots, 4 NVMe, 1 dual-slot GPU, OCP 3.0, ASUS ASMB11-iKVM

Key Features

• Powerful performance: Powered by 4^th Gen Intel Xeon Scalable processors designed for potent data infrastructure from the cloud, to the network, to the intelligent edge
• Scale-up storage and expansion design: Up to 12 all-flash NVMe drives on the front panel, and 4 PCIe 5.0 slots for higher bandwidth and system upgrade
• Flexible networking module design: Optional two 10 Gbps or four 1 Gbps on-board LAN module, and OCP 3.0 module with PCIe 5.0 slot in rear panel for faster connectivity
• Advanced air cooling solution: Features enhanced volume air cooling (EVAC) heatsink for processors with higher TDP
• Enhanced IT-infrastructure management: ASUS ASMB11-iKVM remote control with ASPEED AST2600, ASUS Control Center IT management software and hardware-level Root-of-Trust solution
• Ready for AI and HPC workloads: Supports 1 dual-slot GPU, including Intel Data Center GPU Flex series and NVIDIA A100

PCIe 5.0Ready | Faster storage, graphics and networking capabilities

PCI Express^® (PCIe^®) 5.0 delivers 32GT/s bandwidth, which is twice the speed of PCIe 4.0, and offers lower power consumption, better land scalability and backwards compatibility. ASUS servers are PCIe 5.0 ready with scalability design to satisfy the increasing workloads for modern data center.

4^th Gen Intel^® Xeon^® Scalable Processors

The 4^th Gen Intel^® Xeon^® Scalable Processors are designed to accelerate performance across the fastest-growing workloads that businesses depend on today Built-in accelerators improve performance across AI, analytics, networking, storage, and HPC. By making the best use of CPU core resources, built-in accelerators can result in more efficient utilization and power efficiency advantages, helping businesses achieve their sustainability goals.

World Records Leadership

ASUS holds the most amount of records in dual-socket (2P) and single-socket (1P) on SPEC CPU 2017 benchmark and dominate the computing performance. These top performance results provide a useful insight into compute-intensive workloads on different computer systems, enabling our customers to reduce complexity, tackle challenging workloads and accelerate system validations.

Computing Performance

ASUS servers feature Performance Boost technology to achieve the best server performance and agility by tuning servers to match the requirements of workloads, letting you gain greater control of your server environment. This technology improves workload throughput by maximizing processor frequency and boost power, ideal for timesensitive applications such as financial services or data center operations.

• Xeon Platinum
• Xeon Gold
• Xeon Silver
• Xeon Bronze

• Serial ATA
• PCI Express

• HDD
• SSD

• Serial ATA
• NVMe

• Windows Server 2022 x64
• Red Hat Enterprise Linux
• SuSE Linux Enterprise Server
• CentOS
• Ubuntu Linux
• Windows Server 2019 x64

• 120 V AC
• 230 V AC
