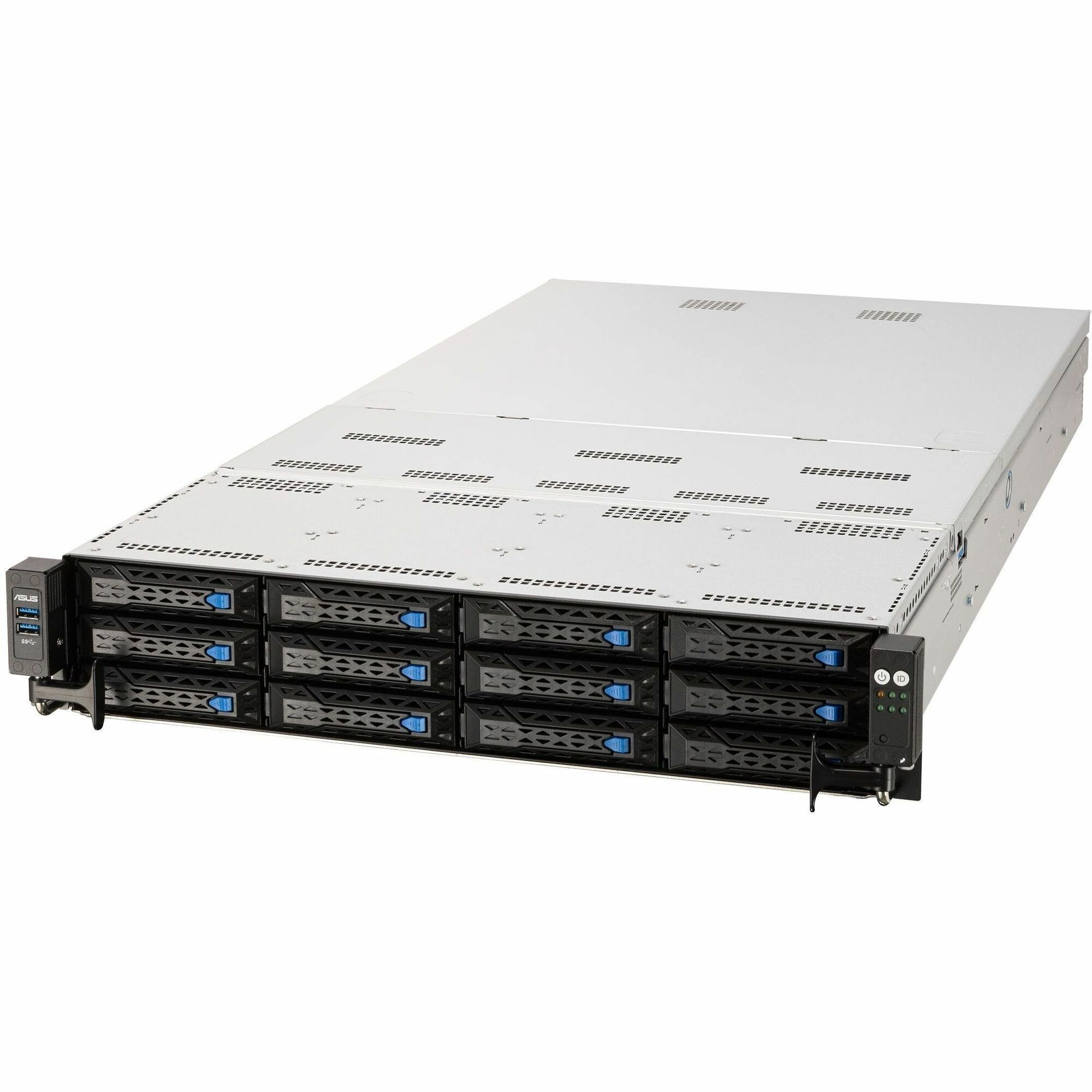

SERVER DUAL AMD EPYC 7002/7003 2U 12B+GPU+10G W/EXPANDER+FRICTION

Key Features

• Powered by AMD EPYC 7003 processor with 64 cores, 128 threads and support for a maximum TDP of up to 280 watts per socket
• GPU-optimized design allows four dual-slot GPUs for AI workloads (GPU SKU)
• A total of 12 storage bays in combination of NVMe/SATA/SAS drives on front panel to enable extensive storage and high-throughput performance
• Up to nine PCIe® 4.0 slots to enable higher bandwidth and improved data-transfer rates
• Flexible onboard LAN-module design to enable four 1 Gb LAN or two 10 Gb LAN options
• Flexible air and liquid cooling solution achieves lower power-usage effectiveness (PUE) and optimized TCO for data centers
• Onboard ASUS ASMB10-iKVM for out-of-band management with ASPEED AST2600 controller
• Integrated PFR FPGA as the platform Root-of-Trust solution for firmware resiliency
• High power efficiency with redundant 2400W 80 Plus Titanium and Platinum power supplies

AMD EPYC 7003 Series ProcessorsThe latest AMD EPYC™ 7003 series processors are the new standard for modern data centers. AMD was first with X86 multi-chip-module server CPUs and continues to innovate with the 3rd Gen EPYC processors, including up to 32MB of L3 cache per core and synchronized fabric and memory-clock speeds designed for improved performance. PCIe 4.0 ReadyPCI Express® (PCIe®) 4.0 delivers 16 GT/s bandwidth, which is double the speed of PCIe 3.0, offering lower power consumption, better lane scalability and backwards compatibility. ASUS RS720A-E11 servers are PCIe 4.0 ready to support a diverse array of graphics, storage and networking - enabling flexible scalability for demanding or increasing workloads. Four Dual-slot GPUs SupportASUS RS720A-E11 servers feature a powerful GPU* architecture that supports up to four dual-slot GPUs* such as NVIDIA A100 in one 2U system to enable easy scale-up in order to meet the demands of AI and high-performance computing (HPC), and to securely run workloads in virtualized environments.ASUS AMD EPYC 7003-based series are Xilinx Alveo-qualified servers to provide optimized acceleration for workloads across cloud and on-premises data centers, and for hybrid cloud environments in financial computing, machine learning, computational storage, and data search and analytics. CPU-balanced ArchitectureThe new AMD EPYC 7003 processors excel at providing full features and functionality for both dual-socket and single-socket platforms, but our new servers ASUS is introducing an CPU-balanced architecture to enable secure and optimal CPU-performance efficiency.Product TypeBarebone SystemProcessorNumber of Processors Supported2Processor SocketSocket LGA-4094Processor SupportedEPYC64-bit ProcessingYesChipsetChipset ManufacturerAMDMemoryMaximum Memory Supported4 TBMemory TechnologyDDR4 SDRAMMemory StandardDDR4-3200/PC4-25600Total Number of Memory Slots32StorageSupported Storage Drive Interfaces

• Serial ATA III
• PCI Express NVMe 4.0 x4

Supported Storage Drive TypesHDDControllersController TypeSerial ATA/600Display & GraphicsGraphics Memory Capacity64 MBNetwork & CommunicationEthernet TechnologyGigabit EthernetI/O ExpansionsTotal Number of Expansion Slots9Number of M.2 Interfaces2Interfaces/PortsTotal Number of USB Ports4Number of USB 3.2 Gen 1 Ports4Number of Network (RJ-45) Ports1Number of SATA Interfaces12Number of VGA Ports1Power DescriptionInput Voltage

• 120 V AC
• 230 V AC

Number of Power Supplies Installed2Frequency

• 50 Hz
• 60 Hz

Physical CharacteristicsForm FactorRack-mountableRack Height2UHeight3.5"Width33.1"Depth17.7"Weight (Approximate)40.11 lbMiscellaneousEnvironmental ComplianceRestriction of Hazardous Substances (RoHS)
