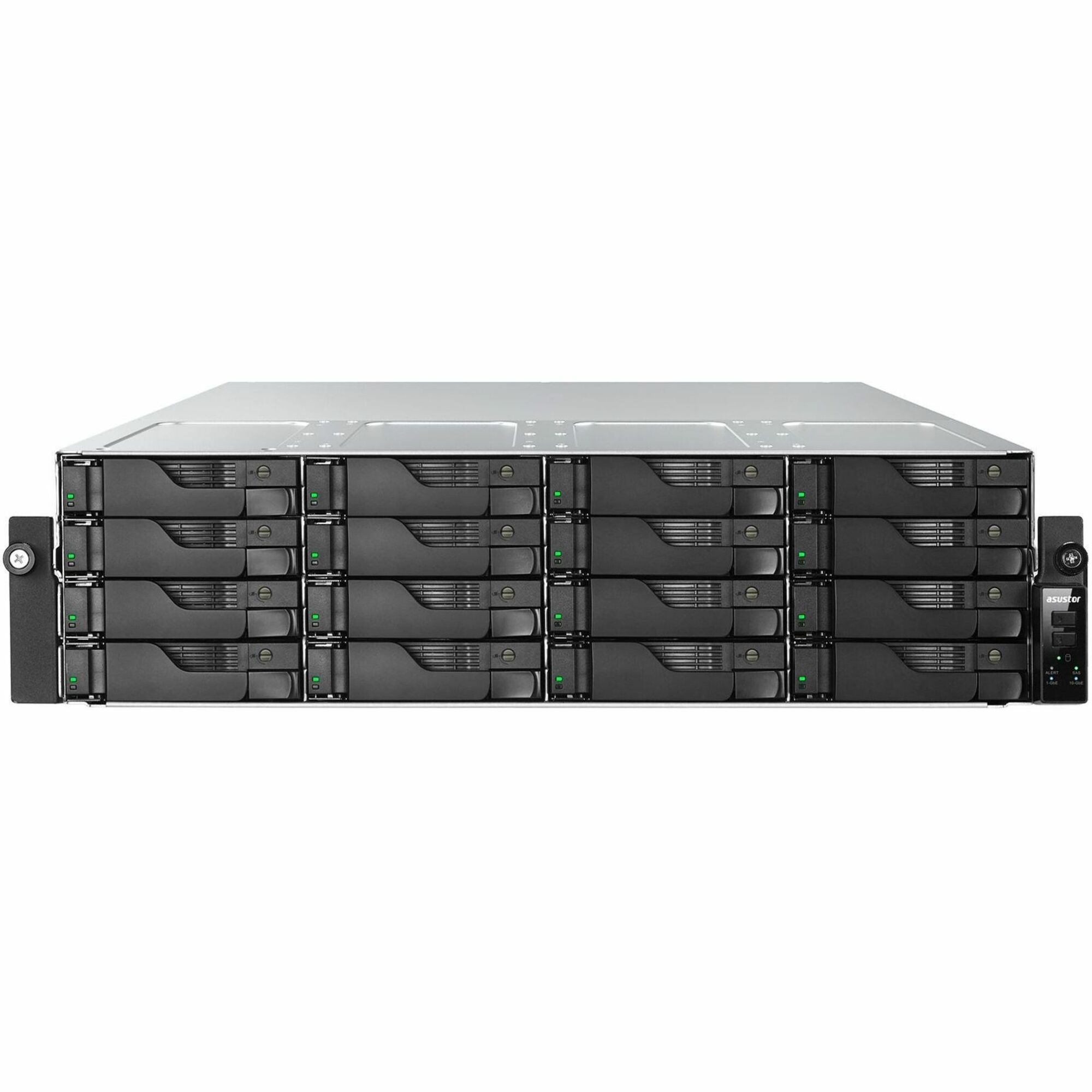

LOCKERSTOR 16 PRO GEN216 BAY RACKMOUNT NAS (DISKLESS) AMD RYZE 7

Powerful Core for Enterprise-Level High-Speed Computing

The Lockerstor 12R Pro Gen2 and 16R Pro Gen2 are equipped with the AMD Ryzen™ 7 Pro 7745 embedded processor, featuring 8 cores and 16 threads with clock speeds of up to 5.3 GHz. The Lockerstor R Pro Gen2 series with its powerful Ryzen CPU chews through virtualization and containerized workloads as it delivers smooth and stable high-performance computing, making it ideal for diverse enterprise environments.

Expandable for Future Demands

With PCIe Gen5 x8 and Gen5 x4 expansion slots, high-speed devices like 50GbE network cards, SAS storage controllers, and other peripherals can be installed to scale storage and network performance based on evolving business needs.

DDR5-4800 ECC Server-Grade Memory

The Lockerstor 12R Pro Gen2 and 16R Pro Gen2 are equipped with DDR5-4800 ECC memory, which is expandable up to 192GB. ECC memory supports automatic error correction and helps prevent system crashes as well as data corruption, ensuring stable and accurate long-term operation.

PCI Express 5.0

Includes one PCIe Gen5 x4 M.2 2280 NVMe slot, allowing users to install SSDs for high performance caching or storage, significantly improving access speed for small files and enhancing data processing in multi-user environments.

More than Just 10-Gigabit Ethernet!

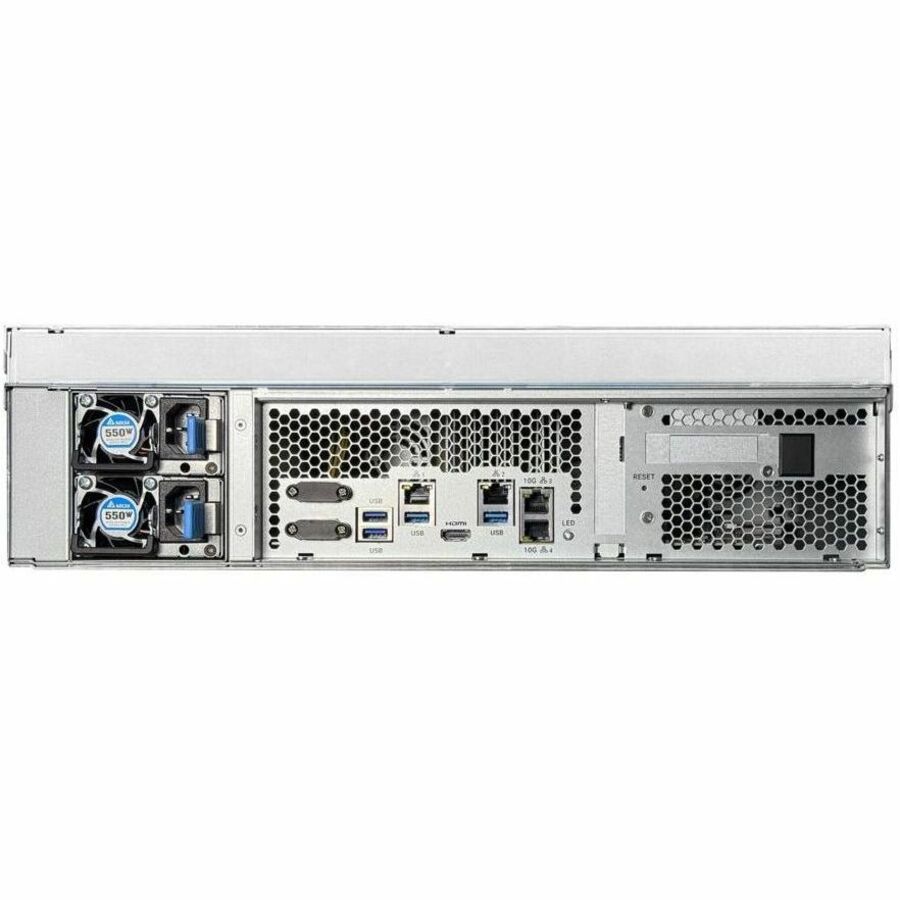

The Lockerstor 12R Pro Gen2 and 16R Pro Gen2 offer dual 10GbE and dual Gigabit Ethernet RJ45 network ports, supporting link aggregation and SMB multichannel, while also delivering ultra-low latency and high-speed data transfer rates. If 10-Gigabit is not enough, the included PCI Express slot allows for 25GbE / 40GbE / 50GbE NICs for even faster networking.

Feels Like Unlimited Space

Your Lockerstor connect to an Xpanstor 12R device using a SAS controller card to add 12 additional drive bays. This provides a stable, high-speed enterprise-grade storage expansion solution without replacing existing hardware and allows your NAS to grow with you.

Efficiently Large and In Charge

Built with dual-redundant 80 PLUS Platinum certified power supplies, providing stable power delivery with up to 92% power conversion efficiency. This ensures optimal energy use even under high workloads, helping businesses save on electricity costs while supporting eco-friendly operations.

Exclusive MyArchive Cold Backup Technology | Unlimited Capacity Expansion

MyArchive cold backup technology turns NAS hard disks into removable storage archives. Directly insert a MyArchive hard disk into the NAS to easily access, backup and share terabytes of content.

360° Backup solution and enterprise virtualization application

• MyArchive cold storage backups
• Snapshot Center, Cloud Backup Center, DataSync Center
• Complete iSCSI/IP-SAN and NFS support
• VMware, Citrix and Hyper-V ready
• Supports Virtualization and Docker apps

• Gigabit Ethernet
• 10 Gigabit Ethernet

• PCI Express 5.0 x4
• PCI Express 5.0 x8

• Serial ATA
• PCI Express NVMe
• PCI Express NVMe 5.0 x4

• Windows 7
• Windows 8
• Windows 10
• Windows 11
• Windows Server 2003
• Windows Server 2008 R2
• Windows Server 2012
• Windows Server 2016
• Windows Server 2019
• Windows Server 2022
• Mac OS X 10.13 High Sierra
• Linux

• TCP/IP
• LDAP
• HTTPS
• SFTP
• SSH
• AFP
• FTP
• SMB 2.0
• IPv4
• WEBDAV
• SSL
• SNMP
• iSCSI
• TLS
• HTTP
• NFS
• TFTP
• UPnP
• RSync
• DDNS
• IPv6
• CIFS/SMB
• SMB 3.0
• SSL/TLS

• Lockerstor 16R Pro Gen2 (AS7216RDX)
• Quick Installation Guide
• 2 x AC Power Cords
• 2 x RJ-45 LAN Cable(Cat 5e)
• 2 x 10GbE LAN Cable(Cat 6a)
• 48 x Flat Head Screw (for 3.5" HDD)
• 48 x Flat Head Screw (for 2.5" HDD)
