TRUE 4K HDMI / USB HDBASET3.0-LITE TRANSCEIVER WITH

Name: TRUE 4K HDMI / USB HDBASET3.0-LITE TRANSCEIVER WITH
Brand: ATEN
SKU: Z32513
Price: 416.3 USD
Availability: InStock

ATEN

PCN#

Z32513

MFG#

VE1833

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$416.30

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

1 Input Device
1 Output Device
131.23 ft Range
1 x Network (RJ
45)
3 x USB
1 x HDMI In
1 x HDMI Out
2160p, 576p, 480p, 1080i, 1080p
4K, 2K
4096 x 2160
Category 6a
Digital Signage System, Monitor, Keyboard, Mouse, Desktop PC, A/V Equipment, Conference Room, Auditorium, Lecture Hall, Museum, Exhibition
Rack
mountable
Yes

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 2 lbs.

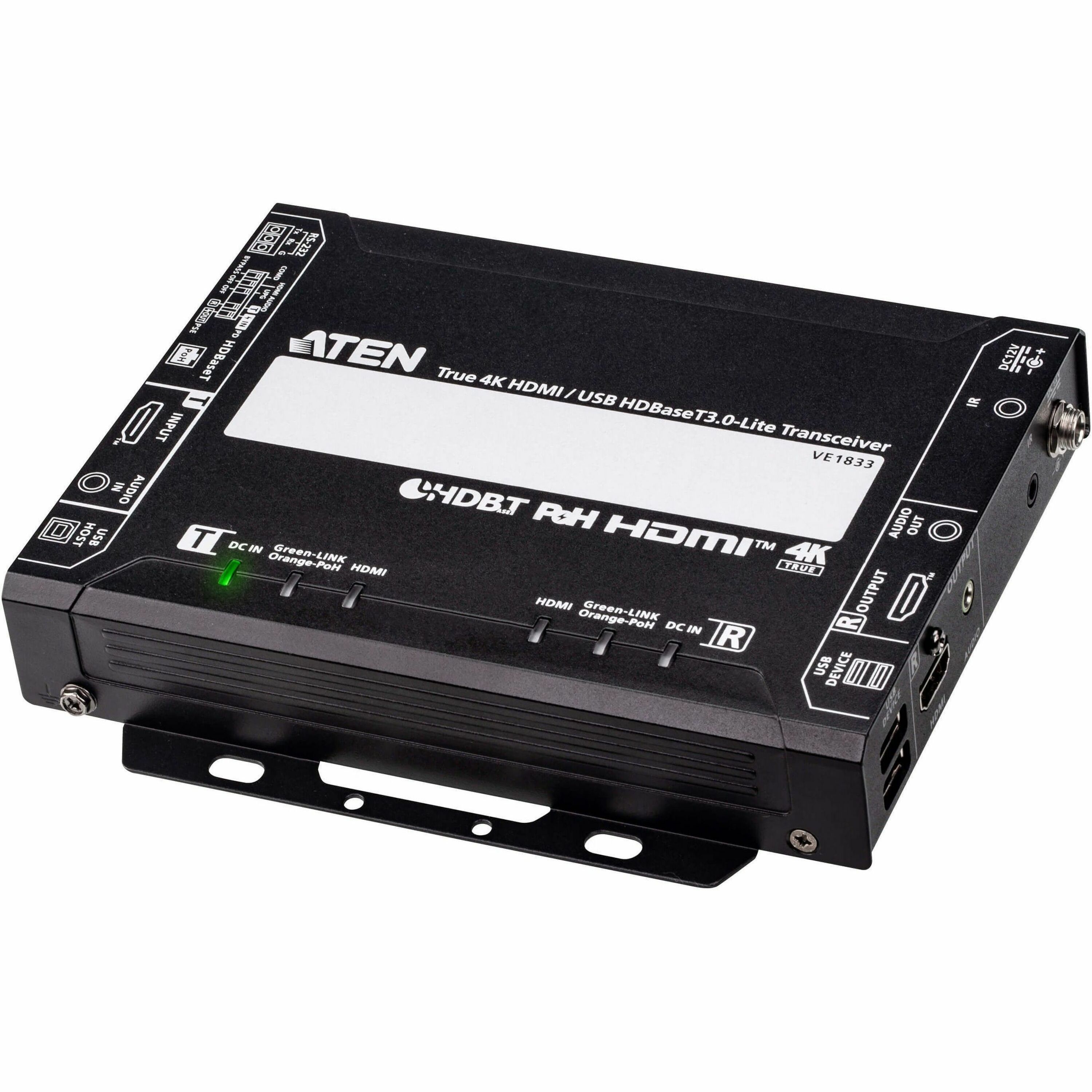

ATEN True 4K HDMI / USB HDBaseT 3.0 - Lite Transceiver with PoH (True 4K@40 m)

Overview

Tech Specs

Specifications

Manufacturer	ATEN Technology, Inc
Manufacturer Part Number	VE1833
Manufacturer Website Address	http://www.aten.com/us/en/
Brand Name	ATEN
Product Name	True 4K HDMI / USB HDBaseT 3.0 - Lite Transceiver with PoH (True 4K@40 m)
Marketing Information	The ATEN VE1833 True 4K HDMI / USB HDBaseT 3.0 - Lite Transceiver with PoH integrates both transmitter and receiver functions in one compact unit, allowing users to flexibly configure it through a DIP switch according to diverse AV setup. Leveraging HDBaseT 3.0 technology, the VE1833 delivers uncompressed True 4K HDMI signals over distances up to 40 m via a single Cat 6a cable (HDBaseT 3 Certified Cat 6a U/FTP / ATEN's tailor-made HDBaseT cable), with zero. Designed for professional AV environments, the VE1833 supports resolutions up to 4096 x 2160 @ 60Hz (4:4:4) and advanced video formats including HDR, HDR10+, and Dolby Vision, along with HDCP 2.2/2.3, 3D, and Deep Color, ensuring superior video quality. The VE1833 features bi-directional PoH with power redundancy, ensuring continuous operation for critical missions. The VE1833 extends not only HDMI video but also independent stereo audio, USB 2.0, IR, and bi-directional RS-232 signals all over a Cat 6a cable. It also provides HDMI audio embedding and de-embedding, making it easy to route audio separately when needed, and ideal for setups involving external speakers or audio processors. This all-in-one design streamlines complex installations and allows for seamless integration with video matrix switches, splitters, and more. Empowered by its versatile feature set and flexible deployment options, the VE1833 is an ideal solution for conference halls, auditoriums, lecture theaters, museums, exhibition spaces, and any environment that demands high-performance AV transmission with simplified setup.
Packaged Quantity	1
Product Type	Video Extender Transceiver

Technical Information

Connectivity Technology	Wired
Number of Input Devices Supported	1
Number of Output Devices Supported	1
Maximum Operating Distance	131.23 ft
HDBase-T	Yes

Video

Graphics Modes	4K 2K
Supported Video Modes	2160p 576p 480p 1080i 1080p
Maximum Video Resolution	4096 x 2160

Interfaces/Ports

Network (RJ-45)	Yes
HDMI In	Yes
HDMI Out	Yes
USB	Yes
Number of Network (RJ-45) Ports	1
Number of USB Ports	3
Number of HDMI Inputs	1
Number of HDMI Outputs	1

Media & Performance

Twisted Pair Cable Standard

Category 6a

Physical Characteristics

Transmitter Height	1.14"
Transmitter Width	4.92"
Transmitter Depth	6.54"
Receiver Height	1.14"
Receiver Width	4.92"
Receiver Depth	6.54"
Form Factor	Rack-mountable
Transmitter Weight (Approximate)	1.41 lb
Receiver Weight (Approximate)	1.41 lb

Miscellaneous

Package Contents	VE1833 True 4K HDMI / USB HDBaseT 3.0-Lite Transceiver with PoH 1 x Power Adapter and Power Cord 1 x RS-232 terminal block 1 x User Instructions
Application/Usage	Digital Signage System Monitor Keyboard Mouse Desktop PC A/V Equipment Conference Room Auditorium Lecture Hall Museum Exhibition

Warranty

Limited Warranty

3 Year
